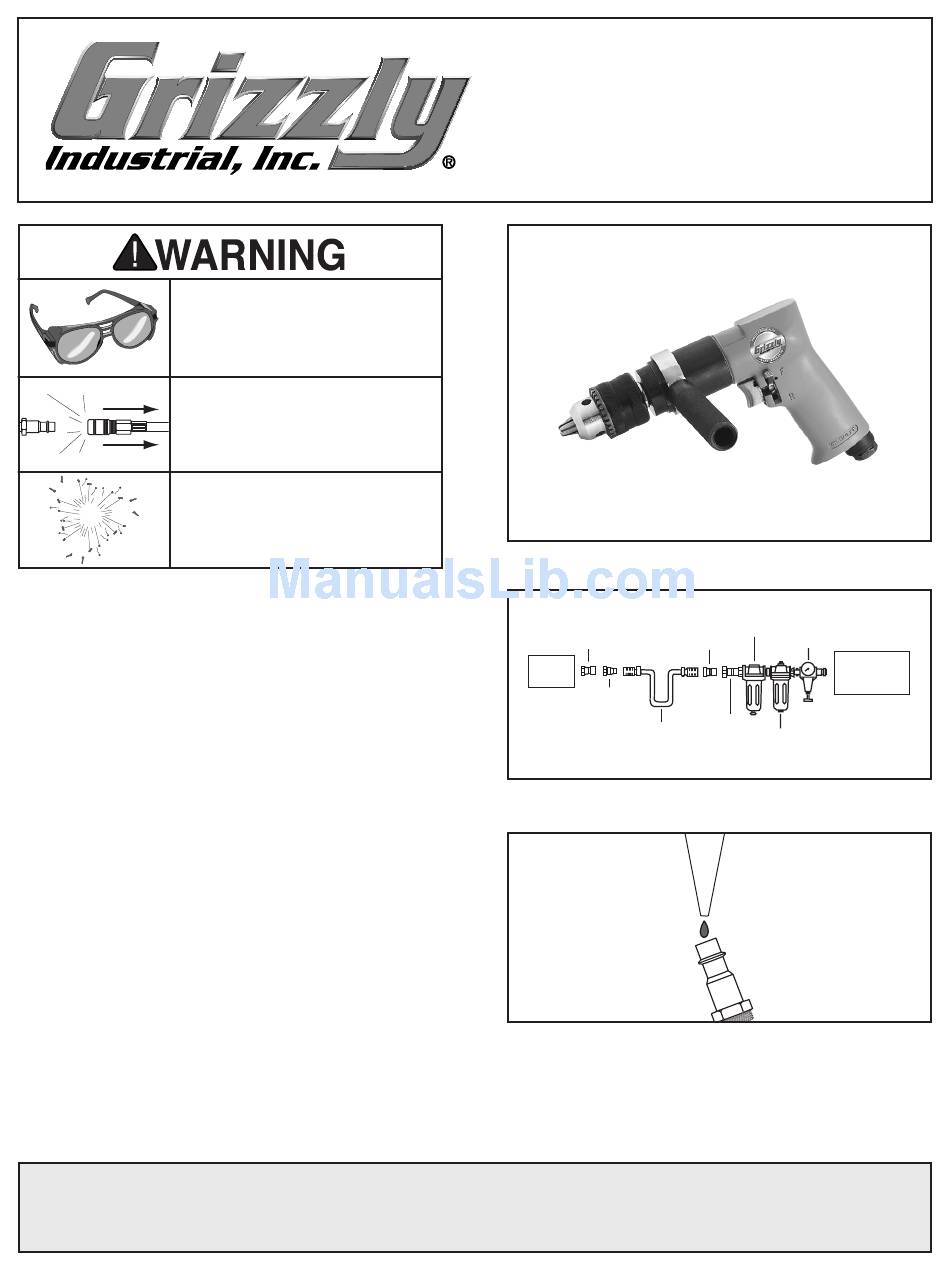

Grizzly G5784 Instruction Sheet

Always wear safety glasses
during
serious personal injury!
Always disconnect tool from
air to prevent unexpected
operation during service!

Introduction

Large ⁄ " chuck capacity in a compact drill. This
1
2
800 RPM drill features convenient thumb activated
forward and reverse switch, Jacobs
key and an accessory right angle handle for those
really tough drilling chores. Weighs 4 lbs.

Inventory

A. Reversable Air Drill .................................... 1
B. Chuck Key .................................................. 1
C. Handle ........................................................ 1
D. Handle Ring ................................................ 1

Operation

Tool requires 90 PSI to operate correctly.
To improve tool lifespan, use a filter/lubricator/
regulator as shown in Figure 2. Otherwise, lubri-
cate daily with a couple drops of pneumatic tool oil
directly into the air fitting as shown in Figure 3.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
EYE INJURY HAZARD!
use to prevent
INJURY HAZARD!
EXPLOSION HAZARD!
Never exceed 120 PSI!
chuck and
®
COPYRIGHT © FEBRUARY, 2006 BY GRIZZLY INDUSTRIAL, INC.
#PC8009 PRINTED IN TAIWAN
MODEL G5784
⁄ " REVERSABLE
1
2
AIR DRILL
INSTRUCTION SHEET
Figure 1. Model G5784.
Quick
Quick
Connector
Connector
Your
Tool
Quick
Coupler
Air Hose
Figure 2. Installing your tool.
Figure 3. Lubricating directly into air fitting.
If you need help with your new pneumatic tool,
call our Tech Support at: (570) 546-9663.
Lubricator
Regulator
Air
Compressor
Quick
Filter
Coupler
