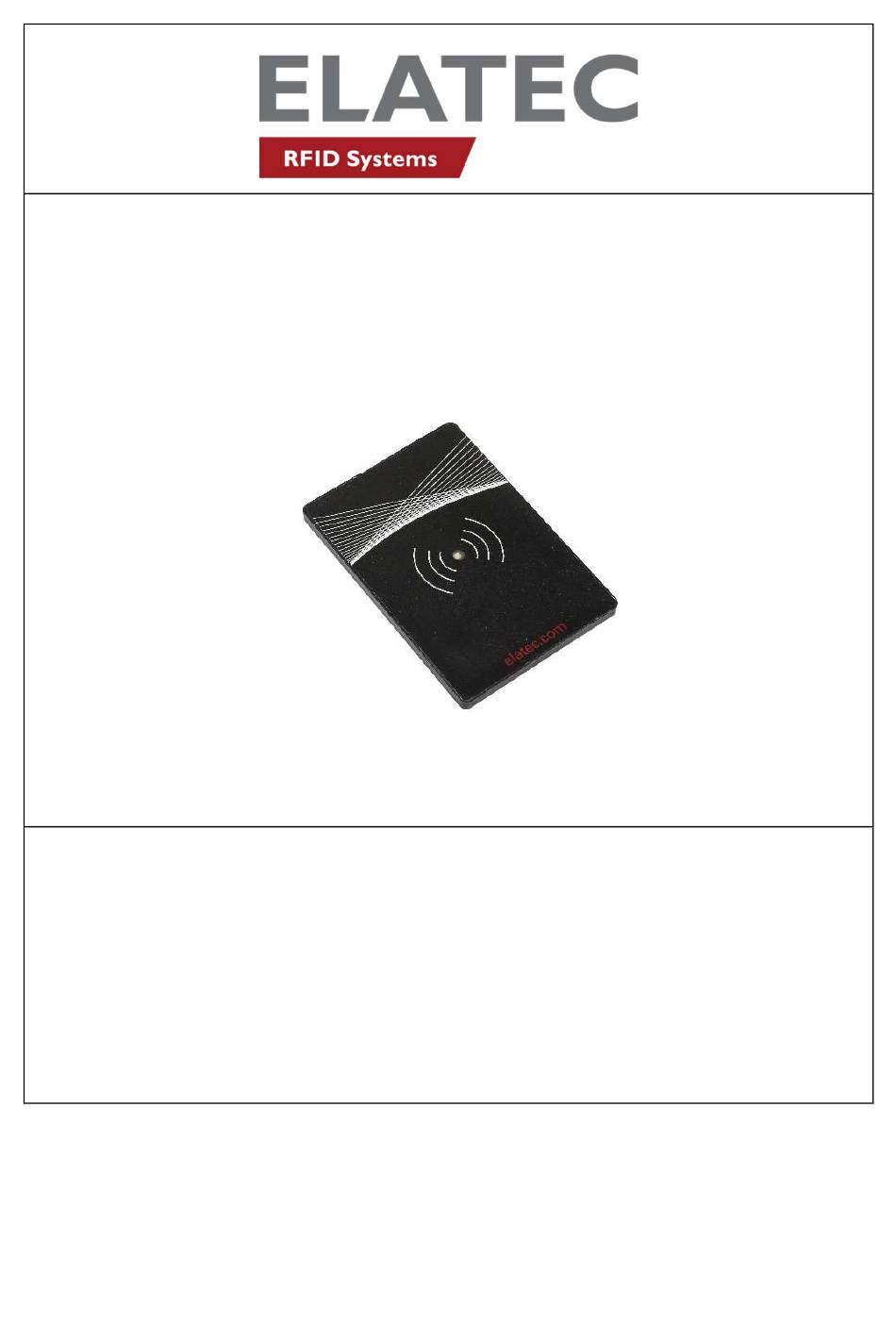

- Page 1 RFID Reader TWN4 Slim Manual Rev. 2.0...
- Page 2 Elatec GmbH 1. Introduction The TWN4 Slim is Elatec’s smallest compact & flat RFID reader – it’s smaller than an ID-1 card. TWN4 Slim supports a huge range of LF and HF technologies (125 kHz and 13.56 MHz). With the support of NFC and Bluetooth Low Energy the reader supports mobile use cases for data communication and authentication.
- Page 3 Elatec GmbH 2. Getting Started 2.1 Operating mode In order to start operating a TWN4 Slim, it simply has to be connected directly to a host device. 2.2 Power Supply Requirement for the external power supply unit: Limited Power Source according to IEC60950-1 or Limited Power...
- Page 4 Elatec GmbH 2.5 Normal Operation As soon as the device has completed the initialization, it is entering normal operation. During normal operation the device is searching for a transponder continuously. 2.6 Detection of a Transponder If a transponder is detected by the reader, following actions are performed ...
- Page 5 Elatec GmbH 3. List of Antennas HF-Antenna circulating the LF-Antenna PCB (inside the inner layers) The antenna for the BLE module is integrated in the BLE chip. Page 5 of 8...
- Page 6 Elatec GmbH 4. Compliance statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 7 Elatec GmbH Canada Compliance This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 8 Elatec GmbH 5. Service Address In case of any technical questions, please contact: Elatec GmbH Zeppelinstr. 1 82178 Puchheim Germany Phone: +49 (0) 89 5529961 0 Fax: +49 (0) 89 5529961 129 Email: info-rfid@elatec.com Page 8 of 8...
