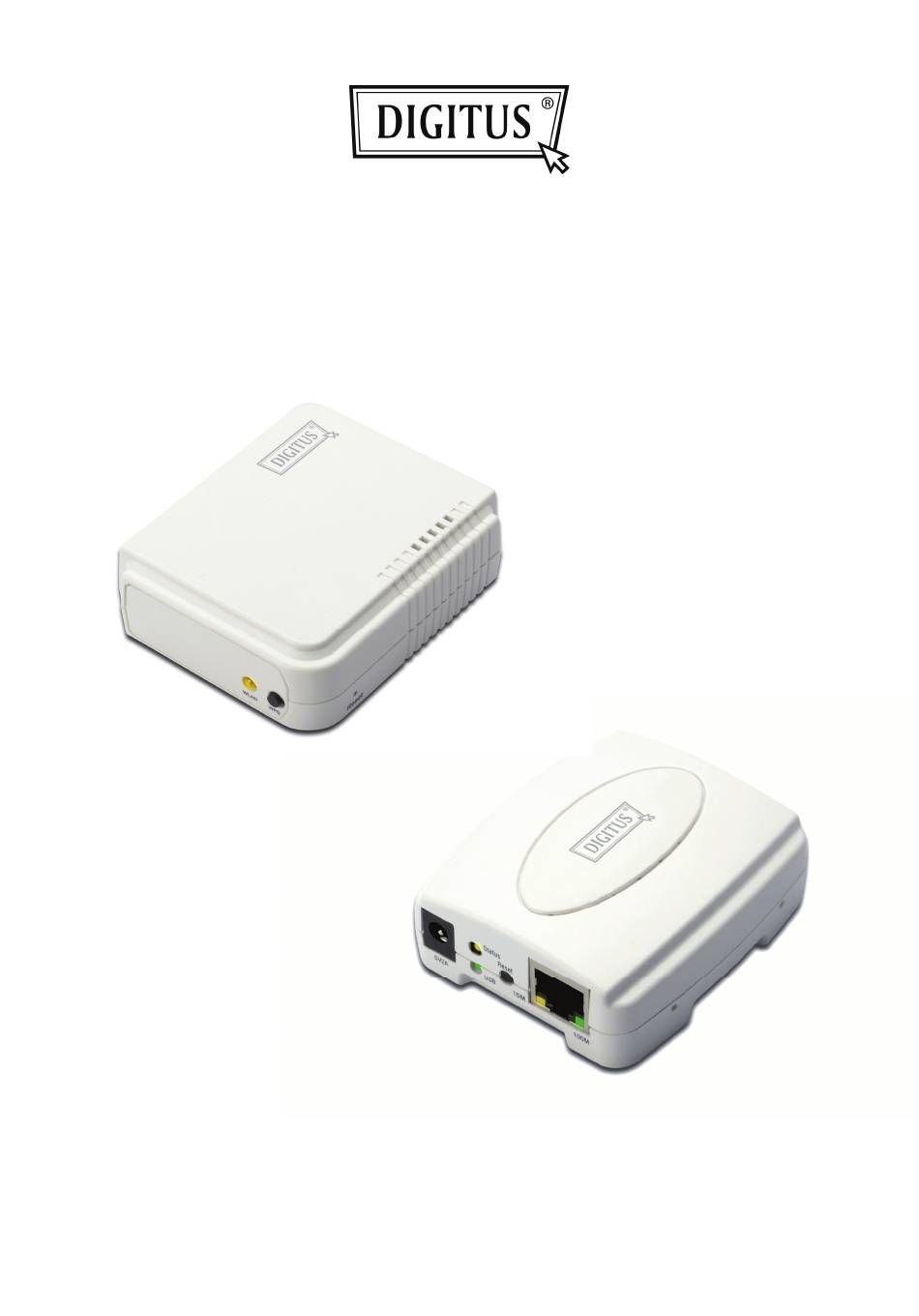

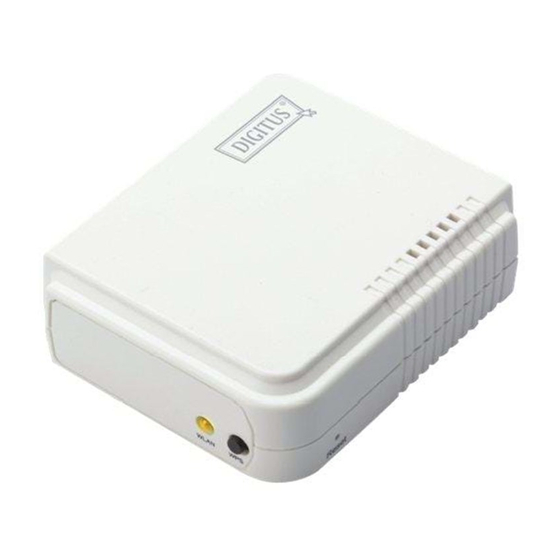

- Page 1 USB 2.0 ETHERNET PRINT SERVER DN-13014-3 DN-13003-1 Quick Installation Guide DN-13014-3 & DN-13003-1...
- Page 2 Before you start, you should prepare the following items: Windows 2000/XP/2003/Vista/7 computer with print server setup CD One Printer(non-GDI/CAPT) One Printer cable One 802.11b/g/n Access Point (optional) Wired Network with Print Server: Print Server Printer Computer Computer Computer Wireless Network with Print Server:...
-
Page 3: Factory Default Settings
Factory Default Settings: Password: Wireless Mode: Ad-Hoc (Peer-to-Peer) Channel: 6 SSID: WLAN-PS IP Address: 192.168.0.10 Subnet Mask: 255.255.255.0 Hardware Installation: Turn off the printer’s power. Connect the print server to your printer with the supplied printer cable. Turn the printer’s power on. -
Page 4: Software Installation
Find the wireless print server by Windows Zero Configuration or vendor utility of wireless adapter. Then click Connect. You can use WPS function to quickly set up a wireless network with strong security, without having to configure security settings manually. 1. - Page 5 Choose Setup Wizard to install the print server and configure the connected printer. Click Next, the wizard will automatically discover the print server.
- Page 6 From the Select A Print Server screen, select the print server port that you want to configure and click Next.
- Page 7 On the Change Settings screen, select No or Yes: Click No if you want the wireless print server to keep using the default IP address and the default settings: Password: Ad-Hoc mode Channel: 6 SSID: WLAN-PS ...
- Page 8 Enter the proper SSID of your wireless network. Channel: optional Data Transmit Rates: select Auto or others Transmit Mode: select Auto or others On the Wireless Security screen, enable or disable WEP/WPA/WPA2 encryption, configure according to your wireless network and click Next. On the TCP/IP Settings screen, specify a fixed or dynamic IP address for the print ...
- Page 9 Click Add New Printer to launch Windows Add Printer Wizard. Click Next and select Local Printer, make sure the Automatically detect and install my Plug and Play printer check box is NOT checked. Then click Next.
- Page 10 10. Make sure the Use the following port radio-button is clicked and select LPT1: (Recommended Printer Port) from the pull-down list. Then click Next. 11. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.
- Page 11 12. If you already have the printer’s driver installed, you will be asked whether to keep it or to replace it. Click Next. Supply a name for the printer and choose whether you want to make it your default printer. Then click Next. 13.
- Page 12 15. From Windows system, go to start -> Printers and Faxes and highlight your newly installed printer. 16. Right-click, select Properties -> Ports and verify that the print server’s port appears.
- Page 13 17. Go to General; click Print Test Page to verify the configuration. 18. Done. Note: If you wish to install more print servers, start setup wizard from your Windows Start menu: start -> All Programs -> Network Print Server -> Standard TCP/IP Printer Port ->...
