Video Server

User's Manual
DN-16100-1
Ver1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-16100-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DN-16100-1

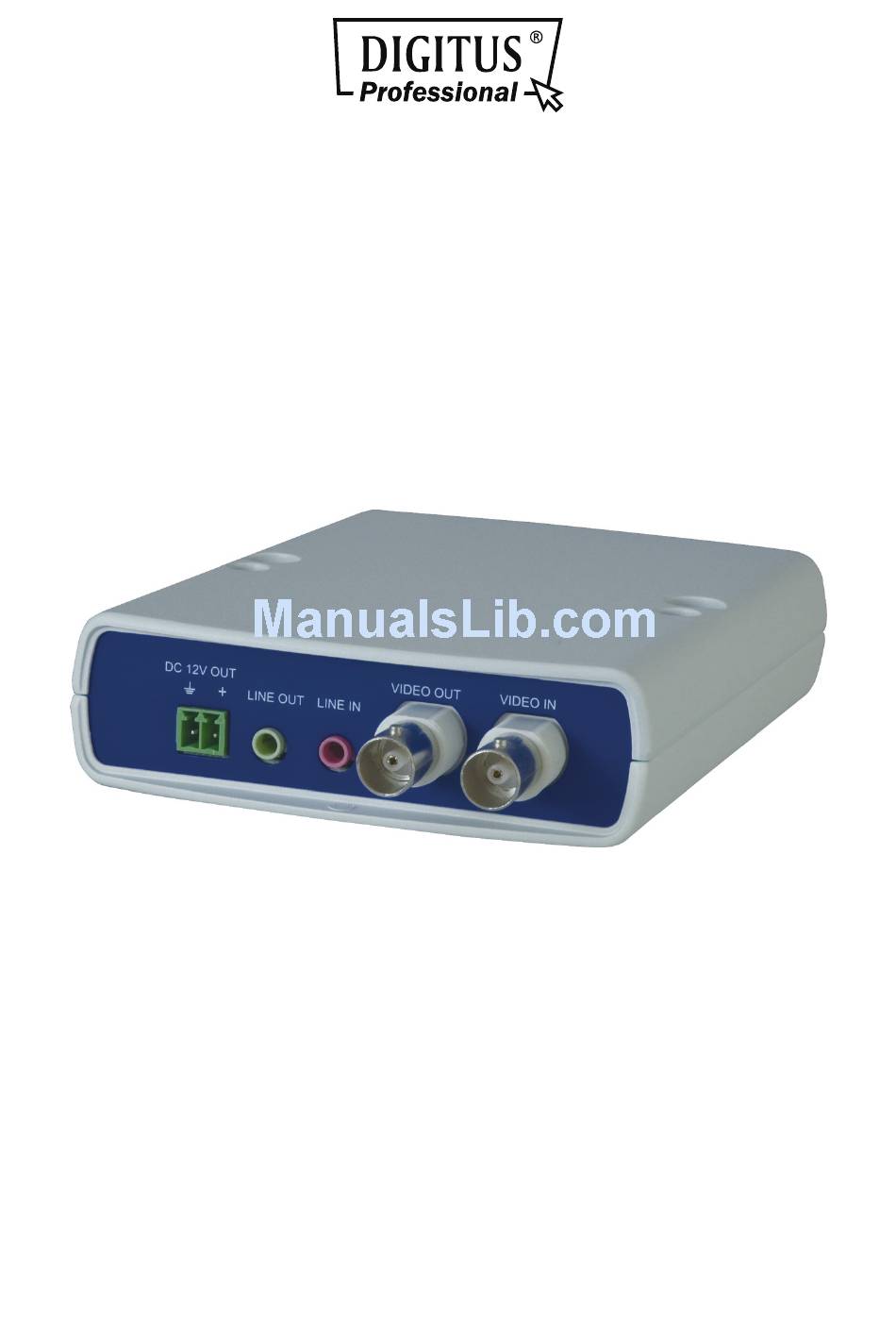

  • Page 1: Video Server

    Video Server User’s Manual DN-16100-1 Ver1.0...
  • Page 2: Safety Instructions

    Safety Instructions 1. Do not use the power supply with other voltages. The Video Server would be damaged if users use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situation above. 2.
  • Page 3: Table Of Contents

    Table of Contents Safety Instructions .......................... 2 Overview ..........................4 Features ........................4 Package Contents ......................5 Dimensions ........................5 Connectors ........................6 1.4.1 Front Panel ....................6 1.4.2 Rear Panel ..................... 7 Video Server Cabling ......................8 Connect Camera ......................8 Connect Power ......................
  • Page 4: Overview

    Overview This Video Server provides a stable platform for transitioning traditional analog CCTV cameras to IP-based system. With the ability to select H.264 or MJPEG video compression, the Video Server offers scalability and efficient use of network bandwidth. By combining the Video Server and DVR which can get IP from the internet, users can promote the analog cameras to become an IP-based surveillance system that reduces wiring cost and maximizes the convenience of distant surveillance application.
  • Page 5: Package Contents

    Packa age Co ontents Please c check the p package co ontains the e following items liste ed below. deo Encod DC Ja ck Cable Quick Gu uide (Length h: 300mm) 4A Pan He M4 Plast tic Anchors Self- -tapping Sc crew (Length h: 35mm)
  • Page 6: Connectors

    Conn nectors The defin nition for e each conne ector on the e Video Se erver is giv ven as follo ows. 1.4.1 Front Panel The conn nectors on n the front p panel are i llustrated a and introdu uced as be elow.
  • Page 7: Rear Panel

    1.4.2 Rear P Panel The conn nectors on n the rear p panel are il lustrated a and introdu uced as be elow. Connector finition Remark Insert the microSD c ard into th he card slo ot to store D Card Slot videos and d snapshots s.
  • Page 8: Video Server Cabling

    Video Server Cabling Before connecting cables, make sure that all cables and the power adaptor are placed in dry and well-waterproofed environments, e.g. waterproof boxes. The purpose is to prevent moisture accumulation inside the Video Server and moisture penetration into cables, which might lead to device breakdown. Please refer to the following sections for Video Server connection.
  • Page 9: Video Server Installation

    Video Server Installation 3.4.1 Installation Tools Power Drill M4 Phillips-head Hammer screwdriver 3.4.2 Installation Steps STEP 1 Use a power drill to drill two holes on the ceiling or wall for the two M4 Plastic Anchors. STEP 2 Use a hammer to install two M4 Plastic Anchors into the holes.
  • Page 10: System Requirement

    System Requirement To perform the Video Server via web browser, please ensure the PC is in good network connection, and meet the system requirements as described below. Items System Requirement ® 1. Intel Pentium IV, 3 GHz or higher; ® Intel Core 2 Duo, 2 GHz or higher...
  • Page 11: Access Video Server

    Access Video Server For initial access to the Video Server, users can search through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Accessing the Video Server by Device Search Software Step 1: Double click on the program Device Search.exe. Step 2: After its window appears, click on the <Device Search>...
  • Page 12 Step 8: A prompt window requesting for default username and password will appear. Enter the default username and password shown below to login to the Video Server. Login ID Password admin admin NOTE: ID and password are case sensitive. NOTE: It is strongly advised that administrator’s password be altered for the security concerns.
  • Page 13 Once the e Viewer is s successf fully install led, the Ho ome page of the Vid deo Server will be sh hown as th he figure b elow. User rs now can n setup the e configura ation of the connecte ed analog camera wi...
  • Page 14: Configuration Files Export / Import

    Configuration Files Export / Import To export / import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the camera.
  • Page 15: Tech Support Information

    Tech Support Information This chapter will introduce how to delete previously-installed Viewer in the PC and how to setup the Internet security. Delete the Existing Viewer For users who have installed the Viewer in the PC previously, please remove the existing Viewer from the PC before accessing to the Video Server. Deleting the Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.
  • Page 16: Setup Internet Security

    Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>.
