Tektronix VX4287 User Manual

Tektronix VX4287 User Manual

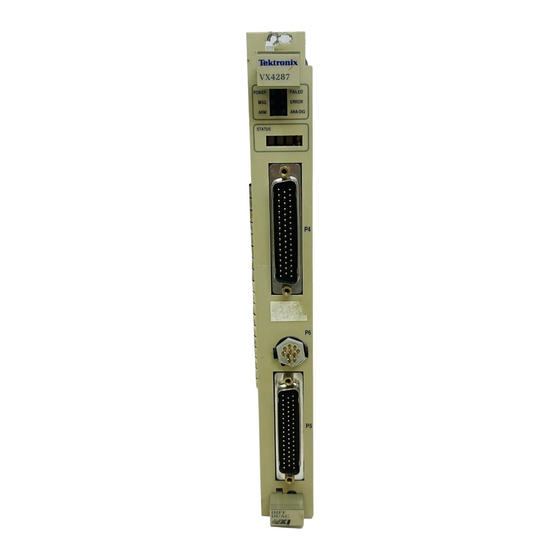

32-channel differential analog/digital input module

Advertisement

Quick Links

User Manual
VX4287
32-Channel Differential
Analog/Digital Input Module
070-9144-02
This document applies for firmware version 1.00
and above.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VX4287 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tektronix VX4287

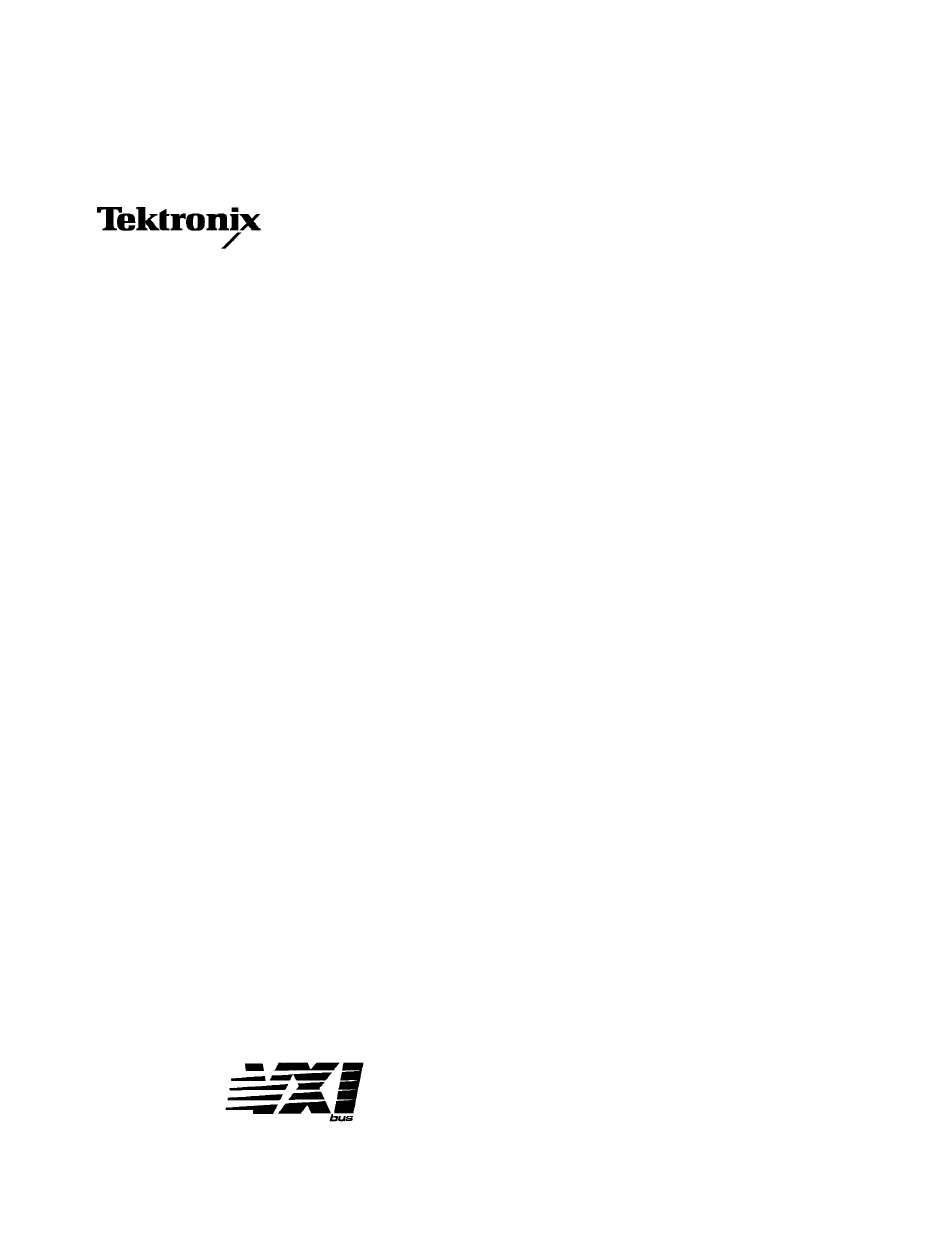

  • Page 1 User Manual VX4287 32-Channel Differential Analog/Digital Input Module 070-9144-02 This document applies for firmware version 1.00 and above.
