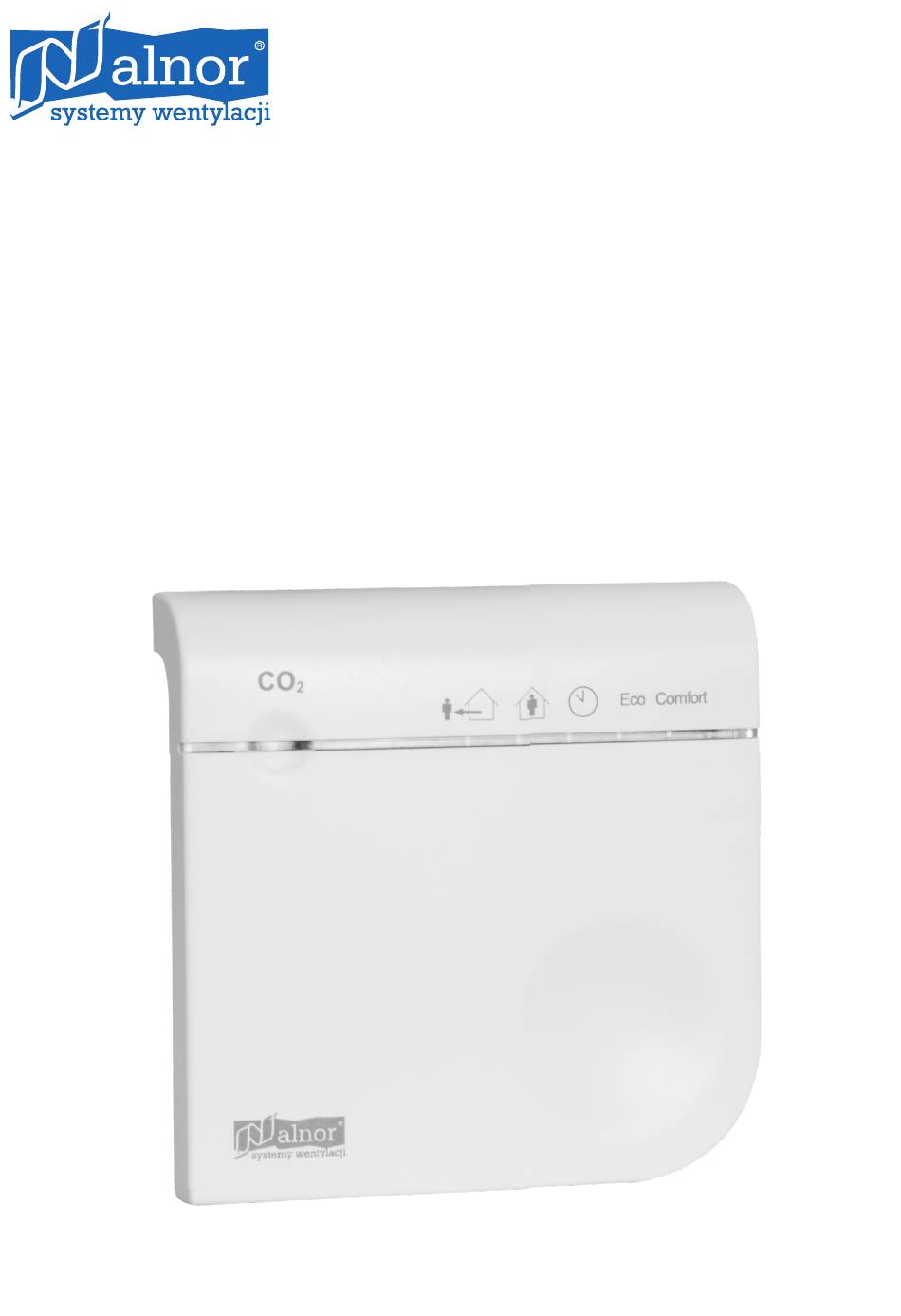

Instrukcja obsługi HRQ-PremAIR-SENS-RH Bezprzewodowy czujnik dwutlenku węgla CO , ścienny. Detekcja poziomu dwutlenku węgla (PPM). Czujnik działa także jako sterownik i komunikuje status urządzenia za pomocą wielokolorowej diody LED. Zasięg: 30m (wewnątrz domu, około 100m w otwartej przestrzeni, możliwość dokupienia anteny zewnętrznej). A: Dioda stanu B: Diody trybu C: Przycisk...
Page 3
Instrukcja obsługi HRQ-PremAIR-SENS-RH Sterownik napędza wentylator na podstawie najwyższych wartości przesłanych przez przypisany(-e) czujnik(-i) bezprzewodowy(-e). Po uruchomieniu trybu zegara z tego urządzenia wentylacja będzie aktywna przez 30 minut. 4. Nastawa wartości CO Urządzenie w sposób ciągły mierzy poziom CO2 w powietrzu i porównuje zmierzoną wartość ze skonfigurowaną zadaną...
Page 4
Instrukcja obsługi HRQ-PremAIR-SENS-RH 6. Obsługa Wyświetlenie stanu: Przyciśnij przycisk. Dioda stanu i diody trybu wskazują stan instalacji. Ustawianie trybu: 1. Przyciśnij przycisk. Diody trybu wskazują następny wybór. 2. W razie potrzeby w ciągu 2 sekund przyciśnij przycisk do czasu, gdy pole wyboru wskaże żądany tryb. 3.
Page 5
Instrukcja obsługi HRQ-PremAIR-SENS-RH NIEBEZPIECZEŃSTWO! Należy upewnić się, że zasilanie sieciowe jest odłączone. WARNING 1. Przeprowadź kabel zasilania przez tylny otwór (A) lub wejście kablowe (B) (Rys. 4). 2. Załóż dolną część urządzenia. 3. Przykręć dolną część za pomocą śrub (Rys. 5). 4.
Instrukcja obsługi HRQ-PremAIR-SENS-RH Skonfiguruj ustawienia: 1. Przyciśnij przycisk. Diody trybu wskazują następny wybór. 2. W razie potrzeby w ciągu 2 sekund przyciśnij przycisk do czasu, gdy pole wyboru wskaże pozycję do skonfigurowania. 3. Przyciśnij i przytrzymaj przycisk do chwili, gdy dioda stanu zacznie migać na biało. 4.
Page 7
Instrukcja obsługi HRQ-PremAIR-SENS-RH Specyfikacja pomiaru CO Optymalny zakres pomiaru: 400 do 2000 PPM Dokładność pomiaru: 40 PPM + 2% odczytu przy 20°C (w zakresie optymalnym, >10min po włączeniu zasilania) Okres stabilizacji po włączeniu zasilania: 2 minuty 10. Aplikacja PremAIR Dostępna do pobrania w sklepach: Google Play i App Store: PremAIR Zrzuty z ekranu: ®...

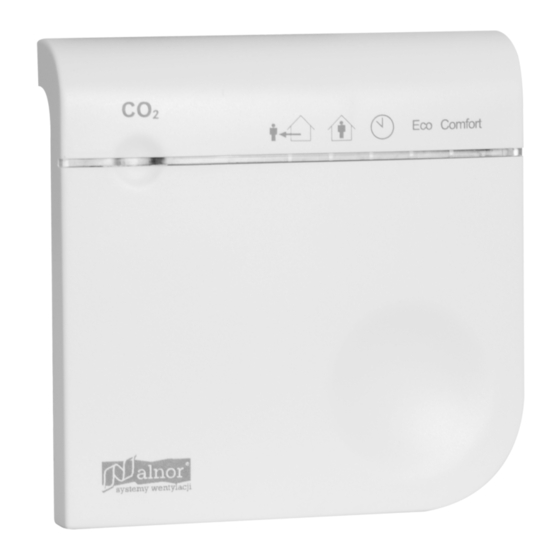

User's manual HRQ-PremAIR-SENS-CO2 Wireless, wall mounted CO sensor measures the dioxide level in the room (PPM). Sensor works as a unit controller and indicates the current status by means of a multicolour LED. Range: 30 m (inside dwelling, 100 m in open space, additional antenna available).
Page 9
User's manual HRQ-PremAIR-SENS-CO2 The control device drives the fan based on the highest of values sent by the bound wireless sensor(s). When you start the timer mode from this device, the ventilation will be active for 30 minutes. 4. CO...
User's manual HRQ-PremAIR-SENS-CO2 6. Operation Show status: Tap the button. The Status LED and Mode LEDs show the status of the system. Set mode: 1. Tap the button. The mode LEDs show the next selection. 2. If needed, tap the button within 2 seconds, until the selection shows the required mode.
Page 11
User's manual HRQ-PremAIR-SENS-CO2 DANGER! Make sure that the power supply is disabled. WARNING 1. Lead the power cable through the back hole (A) or cable entrance (B) (fig 4). 2. Place the bottom section of the device. 3. Fasten the bottom section using the screws (fig 5).
Page 12
User's manual HRQ-PremAIR-SENS-CO2 Configure settings: 1. Tap the button. The mode LEDs show the next selection. 2. If needed, tap the button within 2 seconds, until the selection shows the item to configure. 3. Press and hold the button until the Status LED starts flashing white.
User's manual HRQ-PremAIR-SENS-CO2 measurement specifications Optimal measurement range: 400 to 2000 PPM Measurement accuracy: 40 PPM + 2% of reading at 20˚C (within optimum range, >10min after power up) Stabilization period after power-up: 2 minutes 10. PremAIR application Available for download in Google Play and App Store: PremAIR Screen shot: ®...
