Instrukcja obsługi Spis treści Wersja polska English version 9-16 1. Bezpieczeństwo 1.1 Ważne informacje dotyczące bezpieczeństwa instalatorów i użytkownika 1.2 Bezpieczeństwo w trakcie montażu 2. Uruchomienie 3. Konserwacja 4. Transport i przechowywanie 5. Montaż i demontaż 6. Podłączenie elektryczne 6.1 Diagram podłączenia 6.2 Diagram podłączenia z regulatorem prędkości 6.3 Diagram podłączenia z przełącznikiem 6.2 Diagram podłączenia dla modelu z dodatkowym opóźnieniem czasowym...

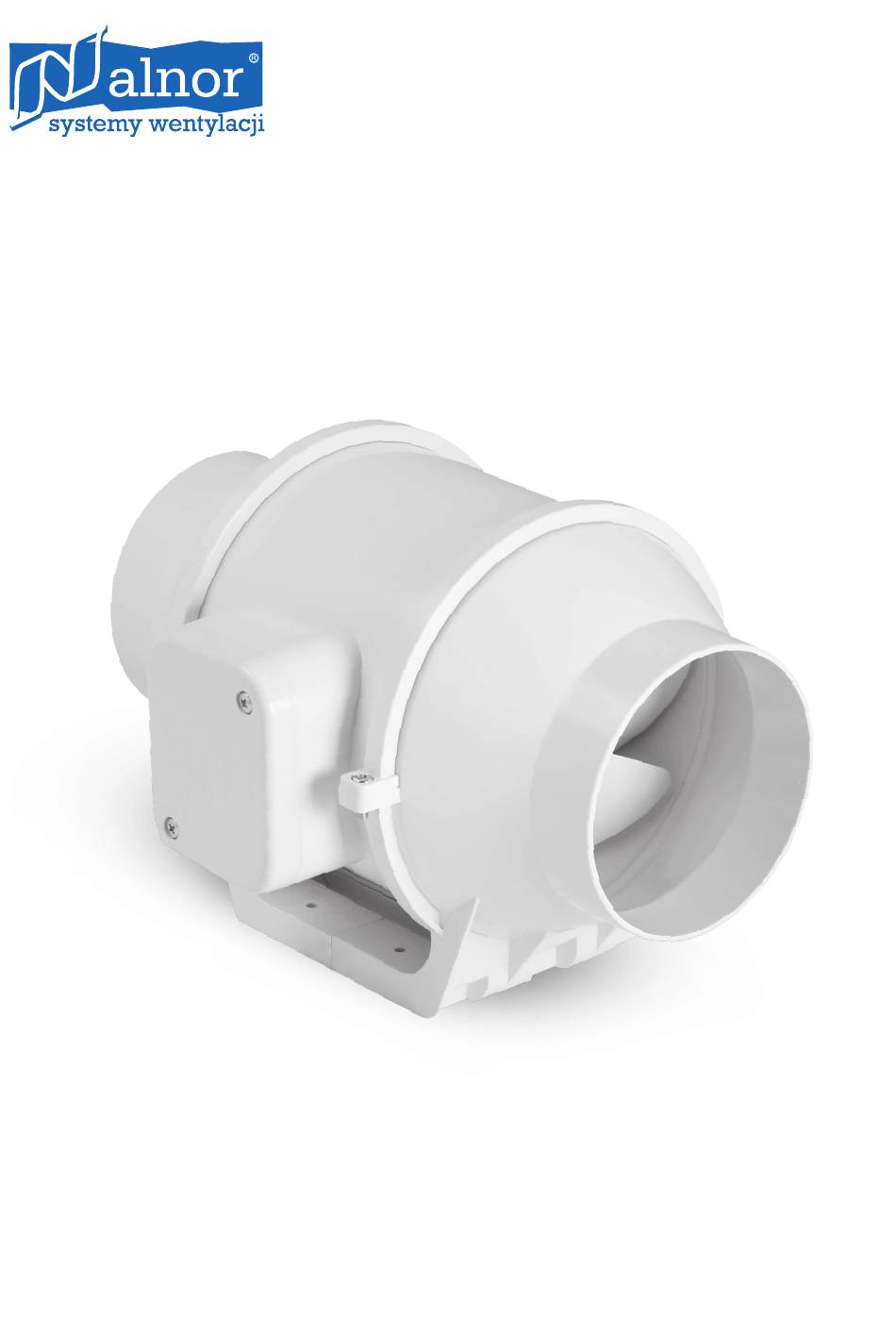

Instrukcja obsługi DV-PP-L Drogi Kliencie, Dziękujemy za zakupienie produktów naszej firmy. Zostały one wyprodukowane przy zachowaniu wszelkich aktualnych przepisów bezpieczeństwa i zgodnie ze standardem EC. Przed instalacją i uruchomieniem produktu prosimy dokładnie przeczytać instrukcję. Zawiera ona ważne informacje na temat środków bezpieczeństwa, jakie należy stosować podczas instalacji, obsługi i podczas wykonywania prac konserwacyjnych przy urządzeniu.
Instrukcja obsługi DV-PP-L 2. Uruchomienie Przed uruchomieniem urządzenia, proszę się upewnić, że: 1. Urządzenie jest dobrze zamocowane i że połączenia elektryczne zostały prawidłowo wykonane. 2. Urządzenia zabezpieczające zostały odpowiednio podłączone. 3. Należy zadbać aby żadne luźne materiały ani pozostałości wyposażenia nie były wciągane przez wentylator.
Instrukcja obsługi DV-PP-L 5. Montaż i demontaż Dla modeli DV-PP-L-100 / DV-PP-L-125: 1. Zdejmij klamrę zaciskową. Dla modeli DV-PP-L-150: 1. Zdejmij zacisk śrubowy. Wyjątkowy projekt wspornika pozwala na to, aby centralny pojemnik, w którym znajduje się silnik i zespół wirnika, był montowany lub wyjmowany bez potrzeby rozmontowania przewodów wentylacyjnych. 2.
Instrukcja obsługi DV-PP-L 4. Doprowadź połączenie. 5. Połącz z przewodem wentylacyjnym. Małe wymiary gabarytowe wentylatorów DV-PP-L ułatwiają montaż w trudno dostępnych miejscach, gdzie przestrzeń jest ograniczona. 6. Połączenie elektryczne 6.1 Diagram podłączenia N: KOMUNIKACJA brązowy LB: MAŁA PRĘDKOŚĆ LA: DUŻA PRĘDKOŚĆ czarny brązowy ~...
Instrukcja obsługi ~ DV-PP-L 6.3 Diagram podłączenia z przełącznikiem brązowy N: KOMUN. LB: MAŁA PRĘDKOŚĆ brązowy LA: DUŻA PRĘDKOŚĆ czarny C: PRZEŁĄCZNIK ~ biały niebieski ~ 6.4 Diagram podłączenia dla modelu z dodatkowym opóźnieniem czasowym WTYCZKA brązowy 5min 10min czarny ~...
Instrukcja obsługi DV-PP-L 6.5.2 Instrukcja obsługi dodatkowego wyłącznika czasowego 1. Czas działania jest wstępnie ustawiony na 10 minut. 20min 15min 2. Okres opóźnienia wyłączenia jest regulowany w zakresie: 5min - 30min. 3. Strzałka P wskazuje okres opóźnienia wyłączenia. 10min 25min 5min 30min 7.5min...
User’s Manual Contents 1. Safety 1.1 Important information for the safety of installers and user 1.2 Safety during installation 2. Starting up 3. Maintenance 4. Transport and storage 5. Dismounting diagram 6. Wiring 6.1 Wiring diagram 6.2 Wiring diagram with a speed controller 6.3 Wiring diagram with a switch control 6.4 Wiring diagram for the model with delay-timer switch 6.4.1 Speed setting...
User’s manual DV-PP-L Dear Customer, Thank you for your purchase of the products of the company products. It has been manufactured following current technical safety regulations and in compliance with EC standard. Please read this user manual carefully before installing or starting up the product. It contains important information on personal and user safety measures to be followed while installing, using and carrying out maintenance work on the equipment.
User’s manual DV-PP-L 2. Starting up Before starting up the device,make sure that: 1. The apparatus is well secured and the electrical connections have been carried out correctly. 2. The safety devices have been adequately connected. 3. No loose material or fitting remains that can be sucked up by the ventilator. If the ventilator has been mounted in a duct, make sure it is clear of loose material.
User’s manual DV-PP-L 5. Dismounting diagram For DV-PP-L-100 / DV-PP-L-125 models: 1. Remove clamping buckle. For DV-PP-L-150 model: 1. Remove screw cramp. The unique design of the support bracket allows the central cartridge, holding the motor and impeller as- sembly, to be fitted or removed without dismantling the ductwork. 2.
User’s manual DV-PP-L 4. Carry the connections out. 5. Connect ducts. The low profile design of the range makes them the most effective solution for installations where space is restricted,such as false ceilings. 6. Wiring 6.1 Wiring diagram N: COMMUN brown LB: LOW SPEED LA: HIGH SPEED...
User’s manual ~ DV-PP-L 6.3 Wiring diagram with a switch control N: COMMUN brown LB: LOW SPEED brown LA: HIGH SPEED black C: SWITCH POWER ~ white ~ blue 6.4 Wiring diagram for the model with delay-timer switch PLUG brown 5min 10min black...
User’s manual DV-PP-L 6.5.2 Run on timer instruction 1. Run on time comes preset for 10min. 20min 15min 2. Can adjust delay-time between 5 min and 30min. 3. Arrow P Point to the delay-time. 10min 25min 5min 30min 7.5min 5min 30min 7.
Page 16
User’s manual DV-PP-L PRODUCENT zastrzega sobie prawo do wprowadzenia wszelkich ulepszeń technologicznych lub modyfikacji bez wcześniejszego powiadomienia. THE MANUFACTURER reserves the right to make any technological improvement or modification without prior notification. ® ALNOR ventilation systems is a legally protected trademark and technical patent. All rights reserved.
