GSM-PRO2

NOTE: Due to time consuming tasks the delay on extensions has an inaccuracy of up to 5 seconds.

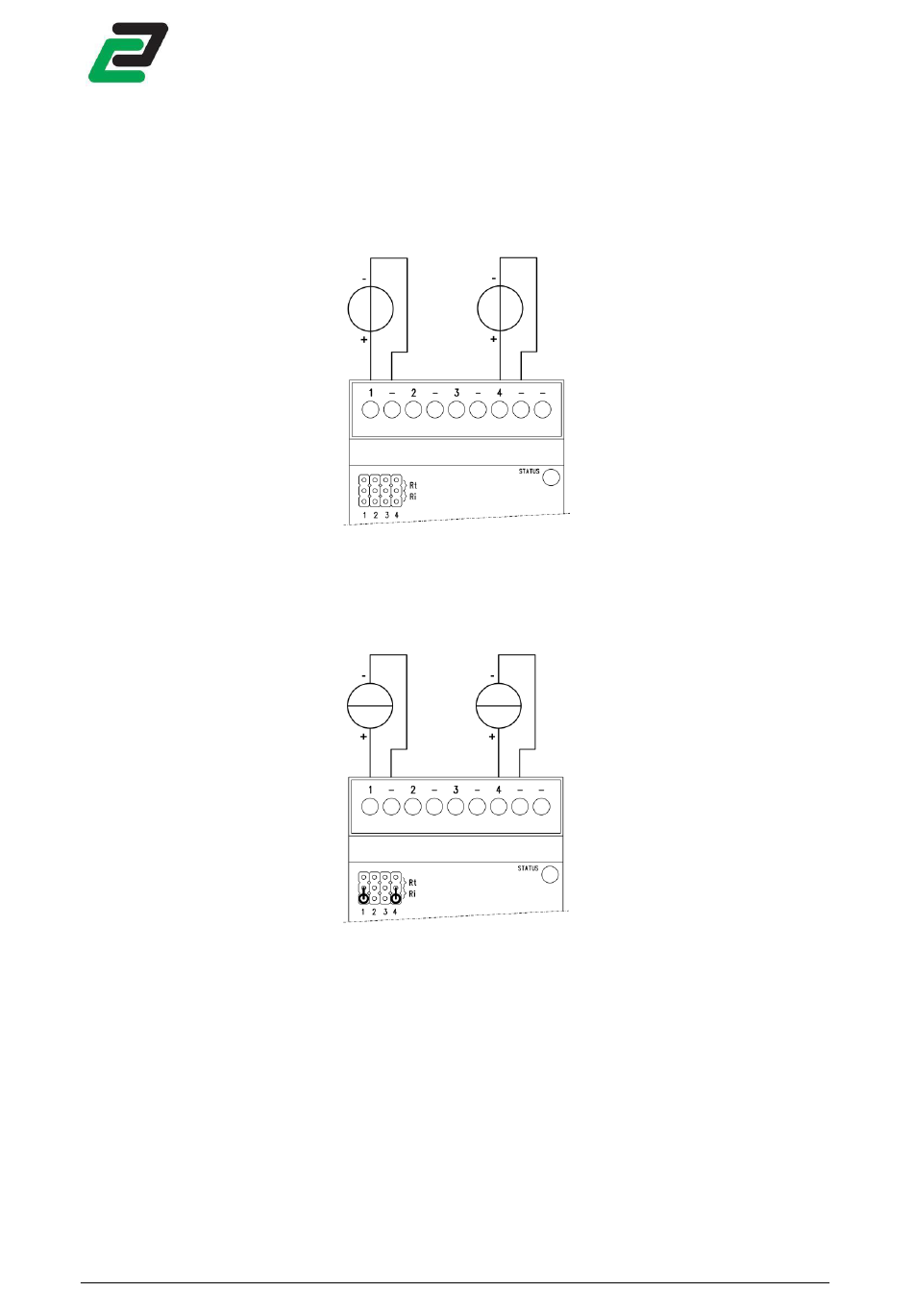

10.4.2 Wiring example

In the following example Ai1 and AI4 are connected to an analog source.

When using the GSM-PRO-8AI as 0..20mA current input a 250Ω resistor has to be placed on the header marked

with Ri on the number corresponding to the input.

- 29 -
