9.4

Digital Inputs

The Digital Inputs can generate messages when:
A rising flank is detected: the status changes from 0 to 1
-
A falling flank is detected: the status changes from 1 to 0
-
9.4.1

Configuration

Configure the following items:
•
Name
•
Rising / Falling flank message
•
Send only the user defined text, this sends only the text defined in the message box, no module name,
IO name and timestamp.
•
Rising / Falling flank message delay: the changed status must be held for the given time before being
accepted
9.4.2

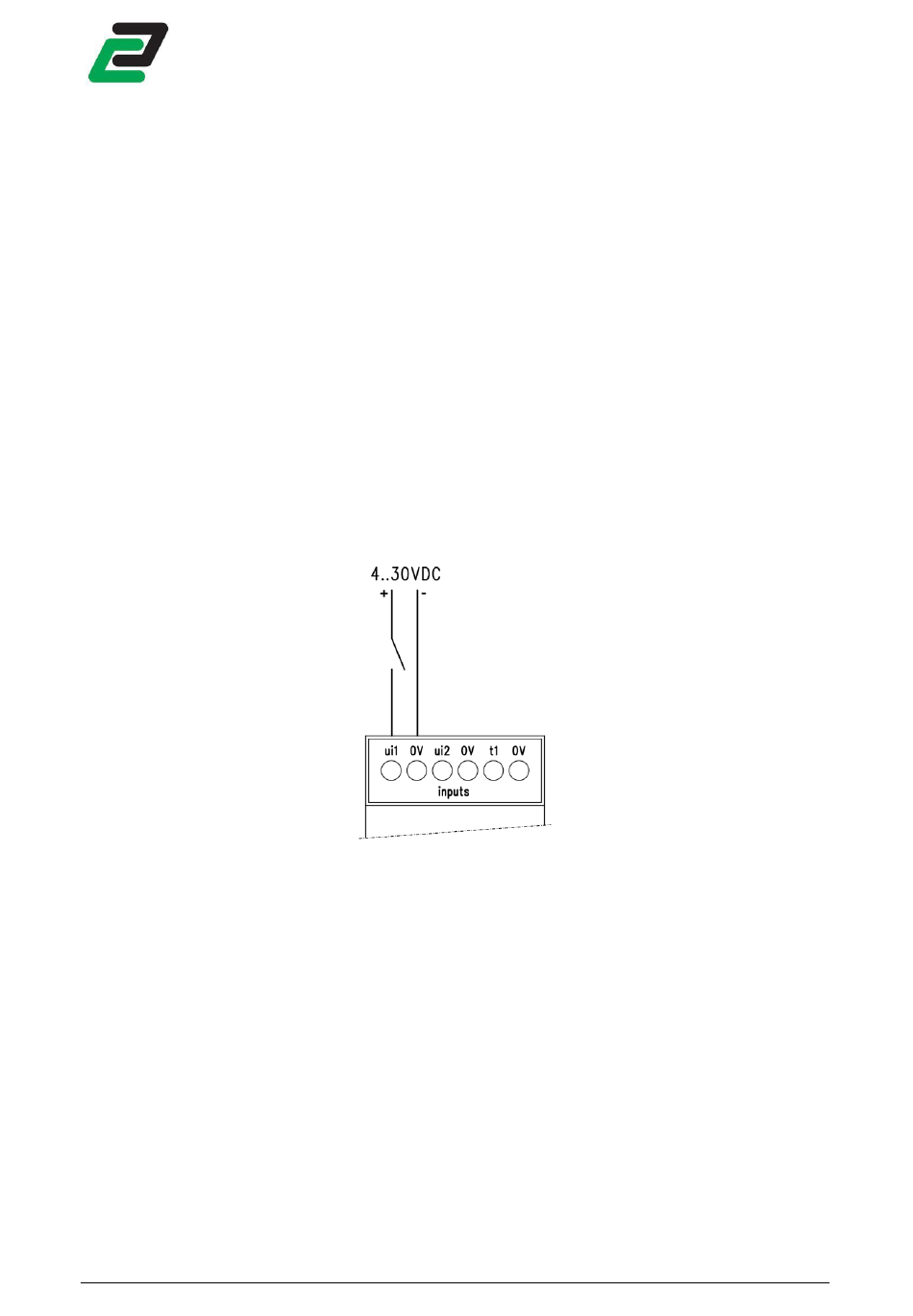

Wiring example

In the following example DI1 is connected to be pulled-up with +V.
