Overview

26/40

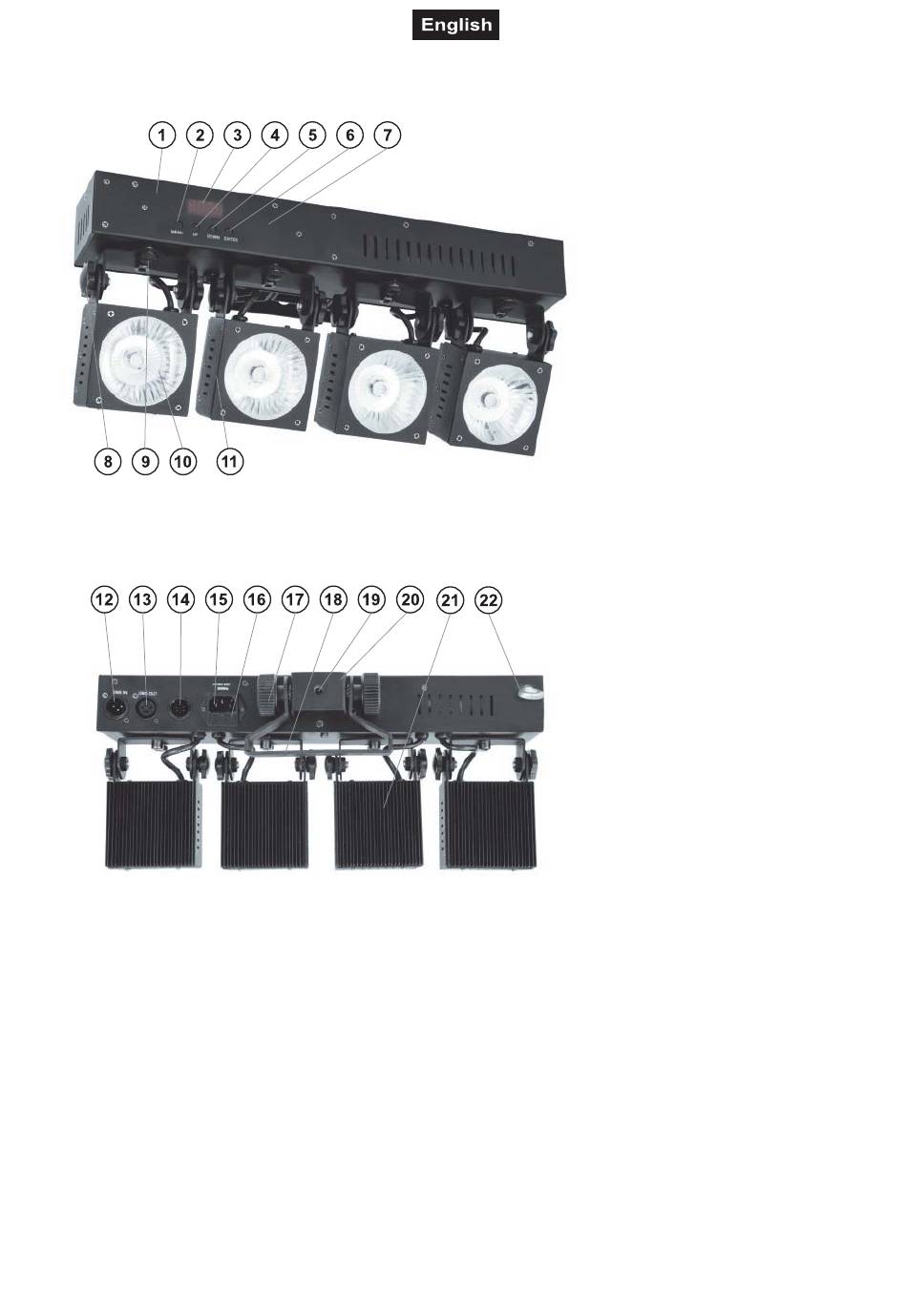

(1) Crossbar with integrated
DMX control unit
(2) Menu button
(3) LED display
(4) Up button
(5) Down button
(6) Enter button
(7) Control Board
(8) Fixation screw
(9) Screw
(10) LED/lens
(11) Spot
(12) 3-pin DMX input
(13) 3-pin DMX output
(14) QuickDMX input
(15) Power input
(16) Fuse holder
(17) Fixation screw
(18) Mounting racket
(19) Fixation screw for
speaker systems
(20) Holder for speaker systems
(21) Cooling ribs
(22) Attachment eyelet
