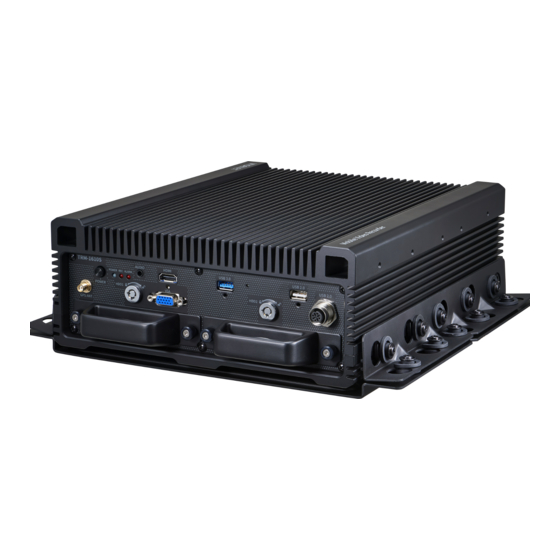

- Page 1 MOBILE VIDEO RECORDER Quick Manual...
- Page 2 English Package Contents How to install the product The appearance of the components may differ from the image shown. The images below are based on the TRM-1610S model. Accessory category and quantity may differ depending on sales region. Remove the mounting bracket and side brackets. TRM-1610S/1610M Tighten the side brackets to the body.
- Page 3 Installing the HDD TRM-810S/TRM-810M/TRM-410S The images below are based on the TRM-810S model. The images below are based on the TRM-1610S model. Unscrew the HDD bracket fixing screws on the front of the set and pull it to the front to separate the HDD. TRM-1610S/TRM-1610M If the lock on the front is locked, open the lock using the key that was provided when you purchased the product.
- Page 4 Install Wizard Select the language Select your preferred language. Set Password Set a password. Set Date & Time Set the time and date and click the <Finish> button, and the installation will be completed. Camera Registration In the setting completion window, click on the <OK> button to finish camera setting and launch the camera registration screen.
- Page 5 Configure and run layout Search You can use the same layout set on the live screen for the Search Time function in order to perform a search using the channel sequence and combination configured by the user. For more information about the detailed setting method for each stage, refer to the user manual. Live channel layout settings a The initial search option is set to <All Channels>.
- Page 6 Use the basic guide Use product information You can check product information/user manual/firmware information/FAQ/HDD compatibility list, etc. on the website or mobile app on your smartphone. Show shortcut menu Right-click on the live screen and you can access various functions that NVR provides. Hover over an icon and a brief definition of term for each function is prompted.
- Page 7 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
- Page 8 Hanwha Techwin(Tianjin) Co.Ltd No.11, Weiliu Rd., Micro-Electronic Industrial Park, Jingang Road Tianjin 300385, China Tel : +86.22.2388.7788 www.hanwha-security.cn Hanwha Techwin Middle East FZE JAFZA View 18, 20th floor, office 2001, 2002, 2003, Downtown Jebel Ali, Dubai, United Arab Emirates http://hanwha-security.com...
