Hanwha - WRR-5301/5501 - Field Replacement

This document will demonstrate how to replace and install Heatsink Fan for the WRR units.

Step 1 - Prepare for Hard Drive Replacement

Before removing the lid and performing any work inside the chassis,

please ensure:

●

You have powered down the unit via the Windows interface;

●

The power cable has been removed from the unit;

●

You are properly grounded. Simple ways to ground yourself are:

● Wearing an ESD strap.

● Making contact with a grounded portion of the chassis.

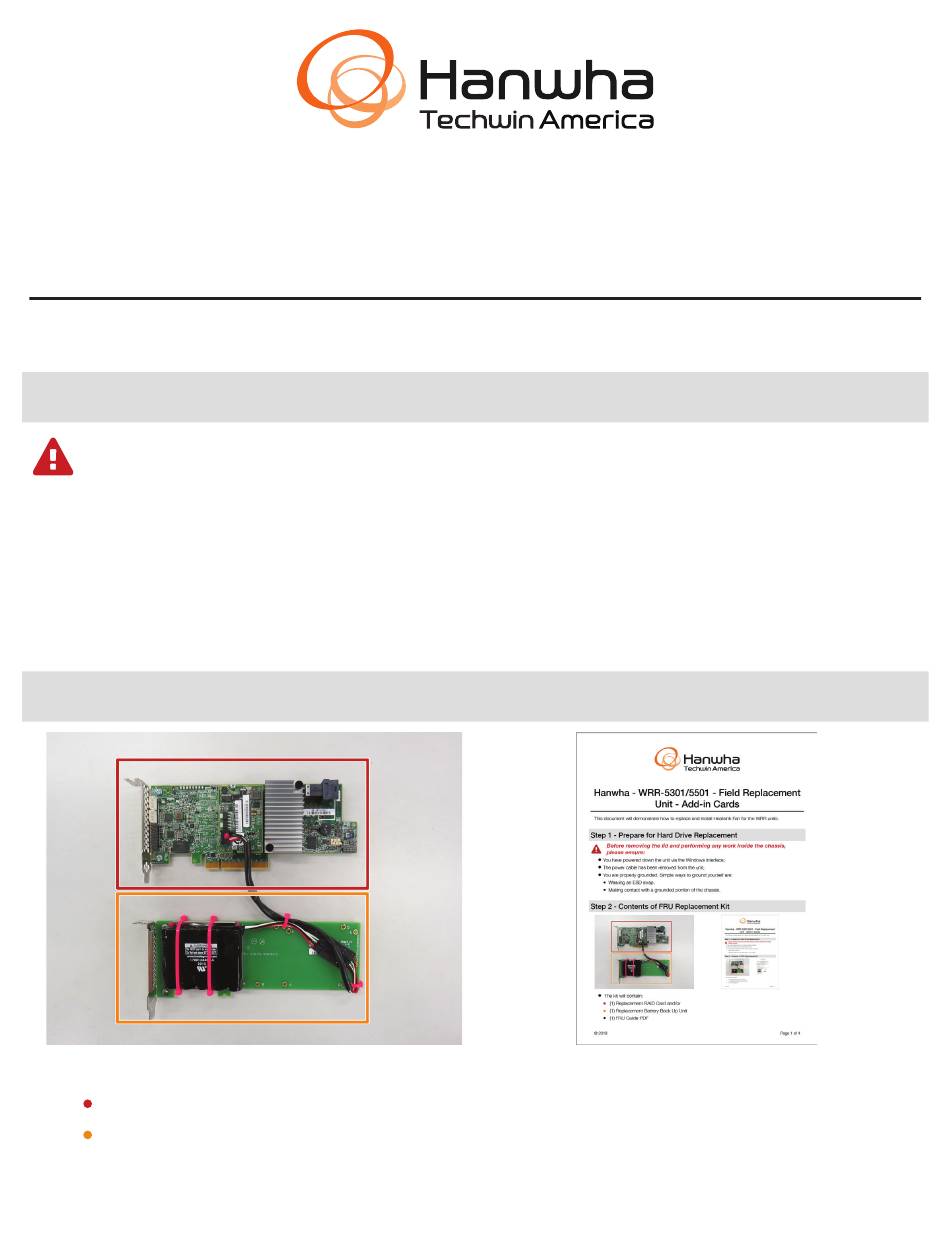

Step 2 - Contents of FRU Replacement Kit

●

The kit will contain:

● (1) Replacement RAID Card and/or

● (1) Replacement Battery Back Up Unit

● (1) FRU Guide PDF

Unit - Add-in Cards

Page 1 of 3

Table of Contents

Need help?

Do you have a question about the WRR-5301 and is the answer not in the manual?

Page 1 Hanwha - WRR-5301/5501 - Field Replacement Unit - Add-in Cards This document will demonstrate how to replace and install Heatsink Fan for the WRR units. Step 1 - Prepare for Hard Drive Replacement Before removing the lid and performing any work inside the chassis, please ensure: ●...
Page 2 Step 3 - Remove the Lid ● Unlock the lid to remove it. ● Use a small flathead or Phillips screwdriver. ● Turn the lock counter clock-wise to unlock. ● The lid is in the unlocked position when the long slot is pointing at the open padlock engraving. ●...
Page 3 Step 5 - RAID and BBU Add-in Removal and Installation 2 ● Replace the connected cards back the the slots they were removed from. ● RAID Card ● BBU Adapter Card ● The BBU card will not be inserted into a motherboard slot, it will just be residing next to the RAID card.
