NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
IVK-2155
Retain This
Manual for
Reference
10-08-07
OWNER'S
MANUAL

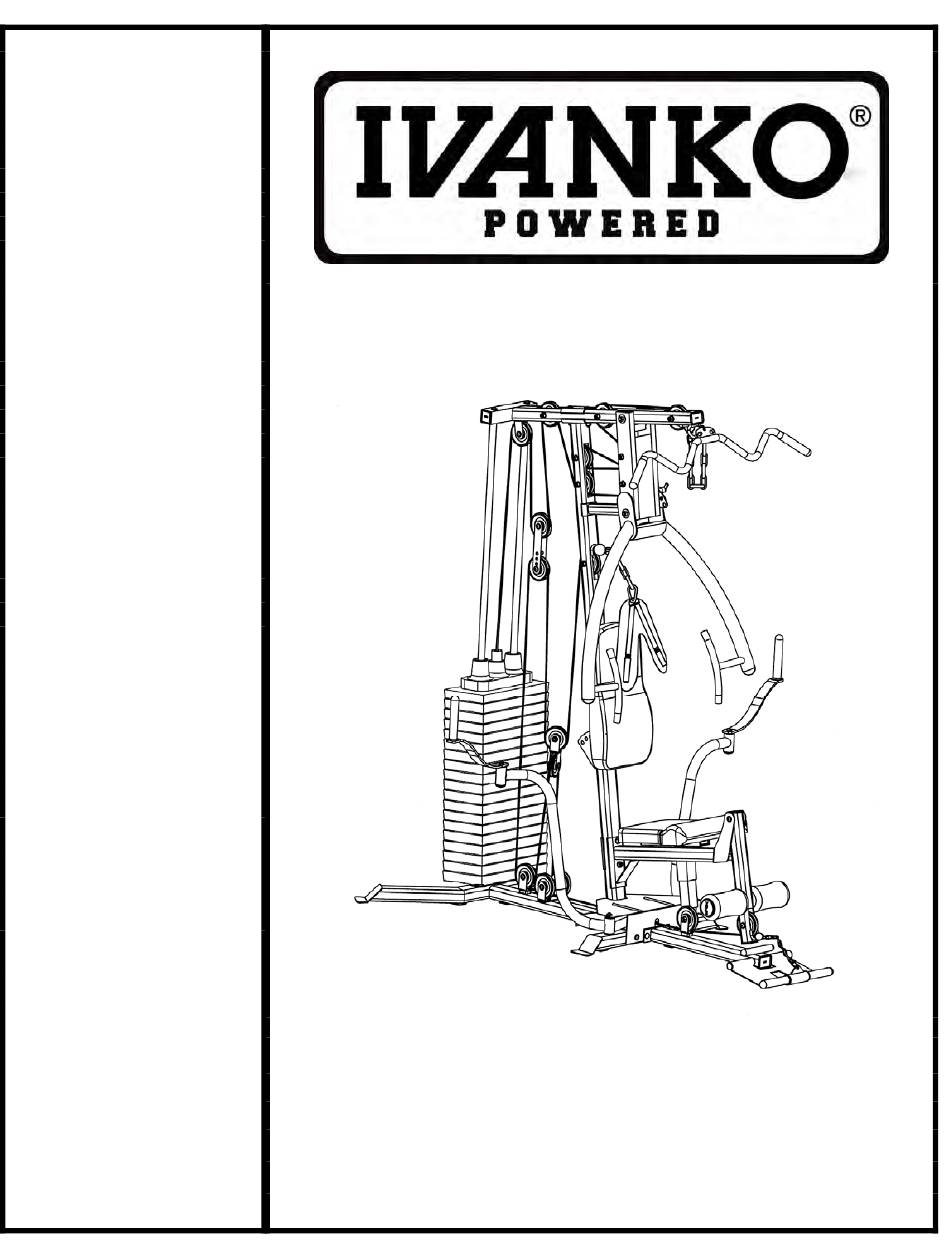

IVK-2155 HOME GYM
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
®
IMPEX
INC.
Advertisement
Related Manuals for Impex IVANKO IVK-2155
Summary of Contents for Impex IVANKO IVK-2155
- Page 1 IVK-2155 HOME GYM Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model IVK-2155 Retain This Manual for Reference 10-08-07 OWNER'S MANUAL ® IMPEX INC. 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
-
Page 2: Table Of Contents
WARRANTY....................… ORDERING PARTS..................BEFORE YOU BEGIN ® Thank you for selecting the IVANKO IVK-2115 HOME GYM by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. - Page 4 WARNING LABEL REPLACEMENT The warning labels shown here have been placed on the Rear Stabilizer and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown...
-
Page 5: Hardware Pack
HARDWARE PACK... - Page 6 HARDWARE PACK...
- Page 7 HARDWARE PACK...
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended two or more people to avoid possible injury assemble this machine. STEP 1 (See Diagram 1) A.) Insert two Guide Rods (#16) into the holes on the Rear Stabilizer (#15). Secure each Guide Rod with one M10 x ¾”... - Page 9 DIAGRAM 1...
- Page 10 STEP 2 (See Diagram 2) A.) Attach the Upper Frame (#1) onto the two Guide Rods (#16). Secure it with two M10 x ¾” Allen Bolts (#78) and ¾” Washers (#92). DO NOT tighten the Bolts yet. B.) Place the Upper Frame (#1) onto the Vertical Frame (#4). Secure it with two M10 x 2 ¾” Carriage Bolts (#90), one 4 ¾”...
- Page 11 STEP 3 (See Diagram 3) A.) Attach the Front Press Base (#2) to the Upper Frame (#1). Secure it with one 6 ¾” Front Press Base Axle (#29), two Ø 1 ¼” Washers (#59), and two M10 Aircraft Nuts (#91). B.) Attach the Front Press (#3) to the Front Press Base (#2).
- Page 12 DIAGRAM 3...
- Page 13 STEP 4 (See Diagram 4) A.) Attach the Seat (#32) to the Seat Post (#6). Secure it with two M8 x 1 5/8” Allen Bolts (#86) and Ø 5/8” Washers (#88). B.) Insert the Seat Post into the opening on the Seat Support Frame (#7). Thread the Lock Knob (#40) into the hole on the Seat Support Frame to lock the Seat at selected height.
- Page 14 STEP 5 (See Diagram 5) A.) Slide the Right Butterfly (#10) onto the right axle on the Butterfly Base (#13). B.) Insert the Butterfly Handle (#9) into the pivot on the Right Butterfly. Secure it with one M10 x ¾” Allen Bolt (#78) and 1 ¼” Washer (#59) from the bottom. C.) Repeat Procedures A and B above to install the other side.
- Page 15 CABLE LOOP DIAGRAM...
- Page 16 STEP 6 (See Diagram 6 & Upper Cable Loop Diagram) A.) Attach the 171” Upper Cable (#33) to the opening on the front of Upper Frame (#1). Make sure the ball stopper is underneath the Frame. Attach a Pulley (#47) to the Cable. B.) Secure the Pulley to the opening with one M10 x 3 ½”...
- Page 17 DIAGRAM 6...
- Page 18 Upper Cable Loop Diagram...
- Page 19 STEP 7 (See Diagram 7 & Lower Cable Loop Diagram) A.) Attach the 164” Lower Cable (#35) to the opening on the Leg Developer (#8). Attach a Pulley (#47) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#84), two 7/8”...
- Page 21 Lower Cable Loop Diagram...
- Page 22 STEP 8 (See Diagram 8 & Butterfly Cable Loop Diagram) A.) Clip one end of the 98” Butterfly Cable (#34) to the open slot on the Right Butterfly (#10). B.) Draw the Cable to the open bracket on the right side of the Vertical Frame (#4). Attach a Small Pulley (#73) to the bracket C.) Secure it with one M10 x 1 ¾”...
- Page 24 Butterfly Cable Loop Diagram...
- Page 25 STEP 9 (See Diagram 9) A.) Connect the Lat Bar (#24) to the Upper Cable (#33) with two Hooks (#37) and one Chain (#36). B.) Connect the Abdominal Strap (#70) to the Lower Cable (#35) with a Hook. C.) Connect the Shiver Bar (#19) to the Lower Cable with two Hooks and a Chain. DIAGRAM 9...
-
Page 26: Weight Resistance Chart
WEIGHT RESISTANCE CHART WEIGHT PLATE Station Low Pulley 110 121 Lat Pull 100 110 120 Butterfly Front Press 104 118 132 146 AB Crunch 110 121 110 122 134 Developer WEIGHT PLATE Station Low Pulley 154 165 176 187 198 209 220 Lat Pull 150 160 170 180 190 200 210 Butterfly... -
Page 27: Parts List
PARTS LIST KEY NO. DESCRIPTION Q’ty Upper Frame Ø 1 ¼” Front Press Bushing Front Press Base Ø 7/8” Leg Developer Bushing 1” Bushing Front Press Vertical Frame Ø 1” Spacer Backrest Support Frame Rubber Bumper Seat Post Ø 1 ½” Spacer Seat Support Frame Ø... -
Page 28: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
