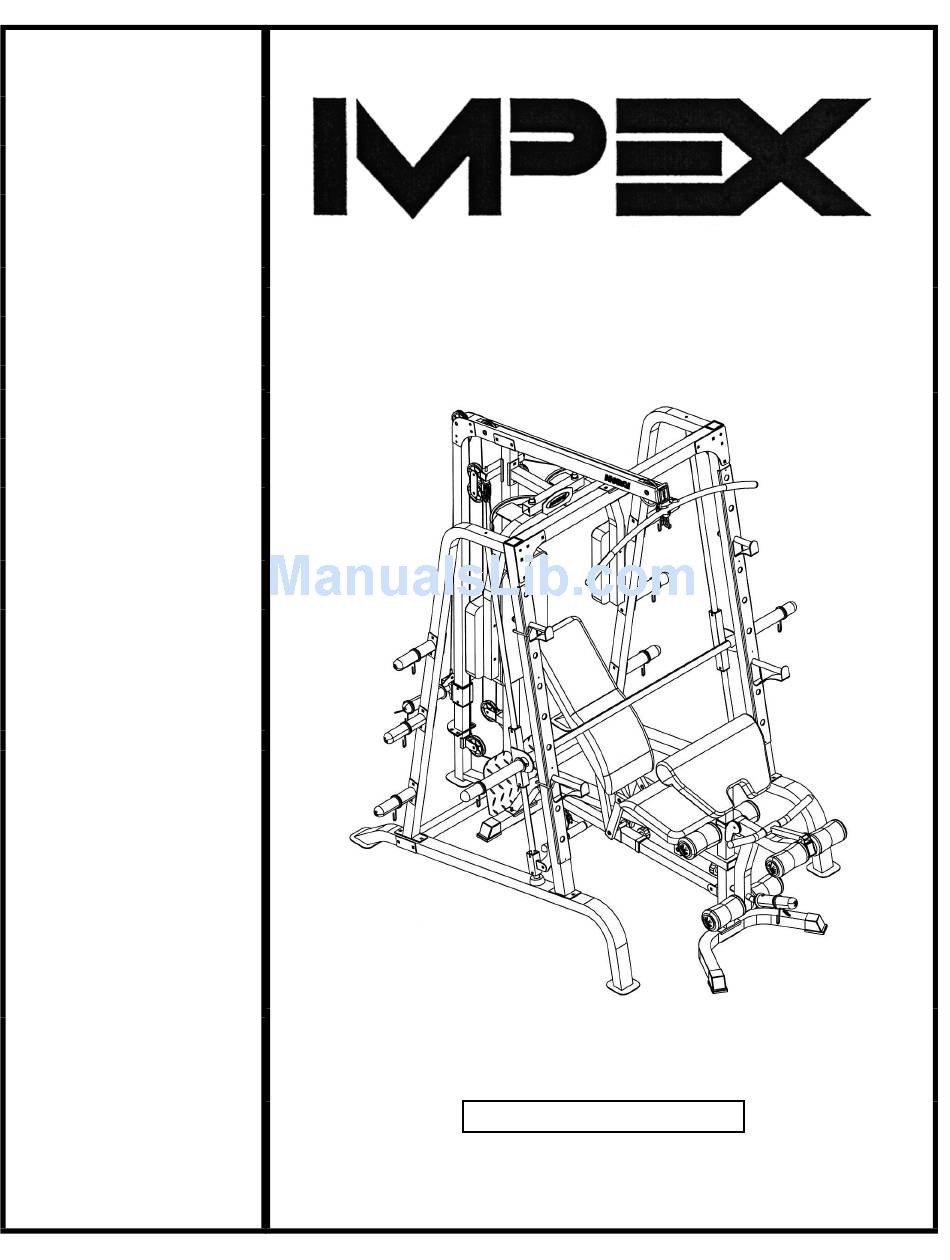

Page 1 Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model IGS-4350 Retain This Manual for Reference 07-19-05 OWNER'S MANUAL IRON GRIP STRENGTH SMITH MACHINE IGS-4350 IMPEX INC.
Page 2: Table Of Contents
WARRANTY...…. ORDERING PARTS...… BEFORE YOU BEGIN Thank you for selecting the IRON GRIP STRENGHTH IGS-4350 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
Page 3: Care And Maintenance
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS. READ ALL IMPEX INC.
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.
Page 5: Smith Machine Hardware Pack
SMITH MACHINE HARDWARE PACK...
Page 6 SMITH MACHINE HARDWARE PACK...
Page 7: Smith Machine Assembly Instructions
SMITH MACHINE ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the two Base Frames (#1) by a Cross Brace (#2) in the mid-span. Secure each end of The Cross Brace with two M10 x 3 ½”...
Page 8 STEP 2 (See Diagram 2) A.) Attach the right Front Vertical Frame (#3) to the right Base Frame (#1). Secure it with two M10 x 3” Carriage Bolts (#76), one 5 1/8” x 2 ¾” Bracket (#34), two Ø ¾” Washers (#66), and two M10 Aircraft Nuts (#86).
Page 9 DIAGRAM 2...
Page 10 STEP 3 (See Diagram 3) A.) Attach the Rear Vertical Beam (#6) to the top of the Cross Brace (#2). Attach the Weight Glide Base (#8) to the Cross Brace from the Bottom. Align the holes. Secure them with two M10 x 3” Carriage Bolts (#76), Ø ¾” Washers (#66), and M10 Aircraft Nuts (#86). B.) Attach the Backrest Board (#38) to the Rear Vertical Beam.
Page 11 STEP 4 (See Diagram 4) A.) Attach the Weight Glide Post (#7) to the Weight Glide Base (#8). Secure it with four M10 x 1” Carriage Bolts (#74), Ø ¾” Washers (#66) and M10 Aircraft Nuts (#86). B.) Slide the Sliding Weight Post (#14) onto the Post from the top. Place the Upper Frame (#9) onto the Weight Glide Post (#7), Rear Vertical Beam (#6) and Front Top Beam (#15).
Page 12 A.) Attach the Butterfly Base (#12) to the front of Rear Vertical Frame (#6). Attach the Butterfly Pulley Bracket (#13) to the back of the Rear Vertical Frame. Align the holes. Secure them with two M10 x 2 ¾” Carriage Bolts (#75), Ø ¾” Washers (#66), and M10 Aircraft Nuts (#86). B.) Attach the Right Butterfly (#11) to the hole on the Butterfly Base.
Page 13: Cable Loop Diagram
CABLE LOOP DIAGRAM...
Page 14 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach the 132” Upper Cable (#41) to the front opening on the Upper Frame (#9). Attach a Pulley (#57) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#70), two Pulley Bushings (#62), and one M10 Aircraft Nut (#86).
Page 15 A.) Attach one end of the 87” Butterfly Cable (#42) to the clip on the Right Butterfly (#11). Draw the Cable to the right Swivel Pulley Bracket (#20). B.) Attach a Pulley (#57) to the Bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#69), two Ø ¾”...
Page 16 STEP 8 (See Diagram 8 & Cable Loop Diagram) A.) Attach the 128” Lower Cable (#40) to the opening on the bottom of the Rear Vertical Beam (#6). Attach a Pulley to the opening. Insert two Pulley Bushings (#62) to the holes outside of the opening.
Page 17 DIAGRAM 8...
Page 18 STEP 9 (See Diagram 9) A.) NOTE: Help of another person is strongly recommended for this step. Place the Lifting Sleeve (#27) in between the two Safety Stop Frames (#26). Align the holes. Insert the Weight Bar (#28) into the Safety Stop Frame from one end and through the Lifting Sleeve (#27) to the other Safety Stop Frame on the opposite side.
Page 19: Exploded Diagram
EXPLODED DIAGRAM...
Page 20: Smith Machine Parts List
PARTS LIST KEY NO. DESCRIPTION Base Frame Cross Brace Front Vertical Beam Left Vertical Frame Right Vertical Frame Rear Vertical Beam Weight Glide Post Weight Glide Base Upper Frame 10 Left Butterfly 11 Right Butterfly 12 Butterfly Base 13 Butterfly Pulley Bracket 14 Sliding Weight Post 15 Front Top Beam 16 Foot Plate...
Page 21: Multi-Purpose Bench Hardware Pack
MULTI-PURPOSE BENCH HARDWARE PACK...
Page 22: Multi-Purpose Bench Assembly Instructions
MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended this machine be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Main Frame (#1) to the Front & Rear Stabilizers (#2 & 3). Secure each end with two M10 x ¾”...
Page 23 STEP 2 (See Diagram 2) A.) Attach four Bushings (#27) to a Seat Support Frame (#6). B.) Attach a Backrest Support (#7) to the rear of the Seat Support Frame (#6). Align the holes and secure them with one M10 x 1 ¾” Allen Bolt (#37) and procedure to install the other side.
Page 24 A.) Place the Backrest Board (#14) onto the Backrest Supports (#7). Secure it with four M8 x 2” Allen Bolts (#40) and B.) Place the Seat Pad (#13) onto the Seat Support Frames (#6). Secure it with four M8 x 2”...
Page 25 STEP 4 (See Diagram 4) A.) Attach the Leg Developer (#5) to the open bracket on the Main Frame (#1). Secure it with an Axle (#17), two M10 x ¾” Allen Bolts (#36), and two B.) Insert one Foam Tube (#10) halfway through the hole on the Main Frame. Insert two Foam Tubes halfway through the holes on the Leg Developer (#5).
Page 26 STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#15) to the Arm Curl Stand (#4). Secure it with two M8 x 5/8” Allen Bolts (#41) and two 5/8” Washers (#43). Insert the Arm Curl Stand into the front opening on the Main Frame (#1).
Page 28: Multi-Purpose Bench Parts List
MULTI-PURPOSE BENCH PARTS LIST KEY NO. DESCRIPTION Main Frame Front Stabilizer Rear Stabilizer Arm Curl Stand Leg Developer Seat Support Frame Backrest Support Sliding Block Incline Adjustment Bar Foam Tube Curl Bar Support Frame Curl Bar Handle Seat Pad Backrest Board Arm Curl Pad Curl Bar Handle Grip Axle...
Page 29: Warranty
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
