BTC 5213A User Manual

5 2 1 3 A
5 2 1 3 A

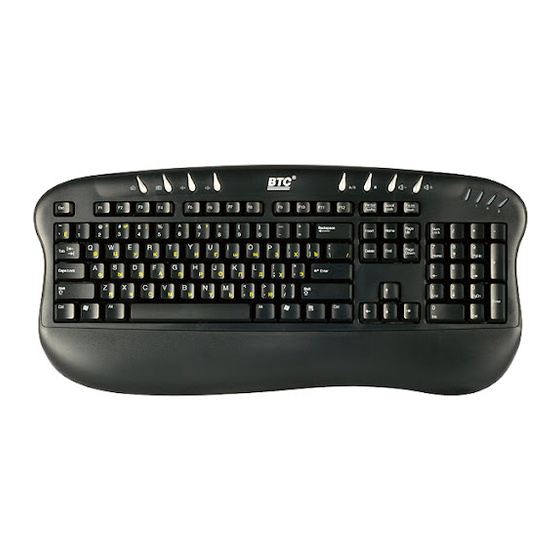

This keyboard is fully compatible with IBM PS/2.

Keyboard Cable Connector

PS/2 Compatible Cable
(6-pin Miniatures Din Connector)
Pin# Signal Name
1 Keyboard Clock
2 Ground
3 Keyboard Data
4 Reserved
5 +5VDC
6 Reserved
The ACPI Power Management
Keys and Their Functions
System requirement:
Ø MicrosoftÒ WindowsÒ 98 , ME, 2000, XP operating system.
Ø The system supporting ACPI or APMII.
Ø ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by WindowsÒ 98
XP
operating system, no vendor-specified driver is needed to use them, but the WindowsÒ 98
2000, XP
operating system is necessary. There could be one or two or three ACPI power
management keys on the keyboard, those functions are as follows.
Power off key: Power down the system.
Sleep key:
Wake up key:
Power key:
Ø Press this key and hold over four seconds to power down the system.
Ø Press this key and release it within four seconds to put the system to sleep.
Ø When the system is asleep or powered down, press this key and release it within four
seconds to wake up or power up the system.
K E Y B O A R
K E Y B O A R
Voltage
+5VDC Signal
0
+5VDC Signal
0
+5VDC
0
Put the system to sleep.
Wake up or powers up the system.
(Single key with three functions above)
