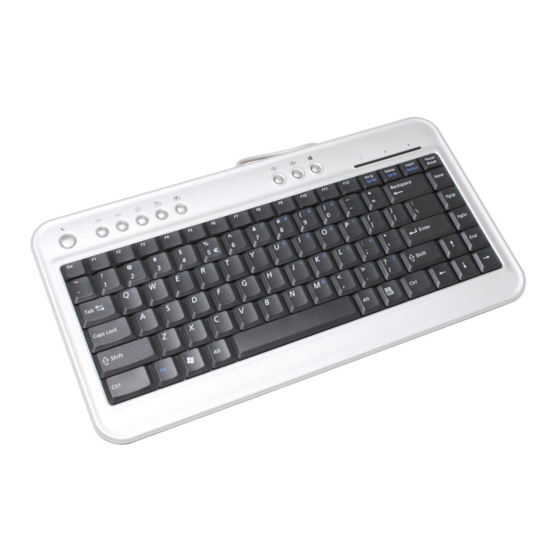

6100C KEYBOARD USER'S GUIDE

Product Overview

This document describes the functional specification of s tandard USB keyboard and
standard USB Hub keyboard. Its function is fully compatible with the Universal S erial Bus
Specification Revision 1.1 as well as the Human Interface Devices (HID) class specification
1.1.

USB Interface Features:

Ø
USB is a "must-have" feature in the current market.
Ø
The instant way to expand your PC. You never to open your PC and you don't need
to worry about add-in cards, DIP switch setting or IRQs.
Ø
"Hot-swapping" feature: You don't even need to shut down and restart your PC to
attach or remove a peripheral. Just plug it in and go!

The ACPI Power Management Keys and Their Functions

System requirement:

Microsoft ® Windows® 98 Windows® ME, Windows® 2000 or Windows® XP operating system.
Ø
Ø
The system supporting ACPI or APMII.
Ø
ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by Windows ® 98
operating system, no vendor-specified driver is needed to use them, but the Windows ® 98
operating system is necessary. There could be one or two or three ACPI power
management keys on the keyboard, those functions are as follows.
Power off key:
Sleep key:
Wake up key:
Power key:
Ø Press this key and hold over four seconds to power down the system.
Ø Press this key and release it within four seconds to put the system to sleep.
Ø When t he system is asleep or powered down, press this key and release it
within four seconds to wake up or power up the system.
USB Cable, Plug Contact Numbering & Ports
USB keyboard has a cable for sub-channel device and a series A plug, which fully comply
with the USB specification 1.1.
Contact Signal Name
Number
1 VCC
2 - Data
3 + Data
Power down the system.
Put the system to sleep.
Wake up or powers up the system.
(Single key with three functions above)
Comment
Cable power
