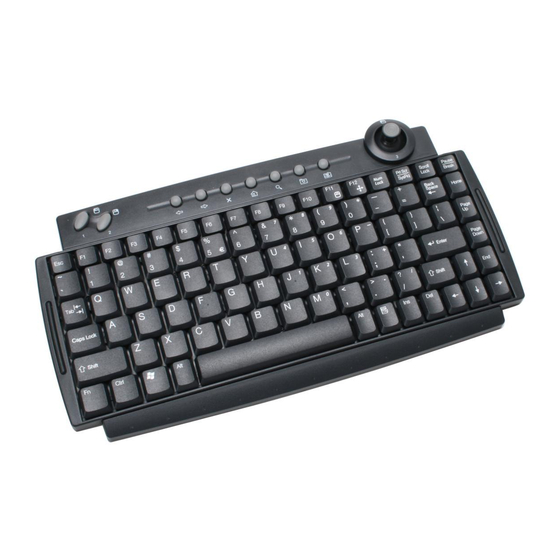

- Page 1 9116URF Wireless Keyboard with Joystick Manual Version 1.0...
- Page 2 封面內頁 FCC GUIDELINES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
Table of Contents Important Information....................2 Battery Installation ..................... 2 Receiver cable positioning................2 Introduction ......................3 System Requirements ................... 4 Hardware Installation..................... 5 Connecting and Battery Information ............5 ID Setting ......................6 Software Installation ....................8 Driver installation .................. -
Page 4: Important Information
Important Information Battery Installation Please follow the instructions to install the batteries correctly. 1.1 Open the battery compartment cover on the bottom of the keyboard. 1.2 Follow the indication inside to place in keyboard batteries. 1.3 Place the battery compartment cover back and proceed with ID setting of the devices. -
Page 5: Introduction
Introduction Congratulations on your purchase of this wireless USB RF keyboard with mouse & dual mode joystick mouse (with mouse & joystick functions). This wireless keyboard kit will not only free you of the constraints of your desktop, but also provide you dual mode: mouse & joystick functions for Internet browsing and game playing. -
Page 6: System Requirements
System Requirements Microsoft Windows 98, Windows ME, Windows 2000 or Windows XP operating system Microsoft Internet Explorer 5.0 or later version (for the Internet keys) CD-ROM drive (for CD and Video operation) Standard sound card (for CD and Video operation) The system supporting ACPI or APM II (for power management buttons) ATX mother board and ATX power supply (for power management buttons) Available USB port... -
Page 7: Hardware Installation
(Follow the polarity signs in the battery compartment.) 1 .5 V * 2 ID B u tto n Bottom view of 9116URF keyboard Remarks: The keyboard uses 2pcs standard UM-3 (AA) 1.5V alkaline batteries. Battery life is approximately 1.5 months, depending on the intensity of usage. -
Page 8: Id Setting
Press ID button on the back of keyboard once. 1 .5 V * 2 I D B u tto n Front View of 9116URF Keyboard Step 4: Steps Complete. The LED light under ID button on receiver flashes quickly several times and then stops when the connection between receiver and keyboard is complete. - Page 9 Remarks: You must follow the procedure above to set ID of receiver, and then keyboard. After the receiver ID button is pressed, you have 1 minute to complete the entire process, from the moment when ID button on receiver is pressed (step 1), until ID button on keyboard is pressed (step 2) also, or you will need to begin again.
-
Page 10: Software Installation
Software Installation 4.1 Driver installation After finishing the hardware installation, you should be able to immediately take advantage of the wireless function of the wireless keyboard. If the keyboard does not work properly, see Chapter 6: Troubleshooting for tips on how to solve your problem. If your operating system is Windows... -
Page 11: Using The Keyboard And Joystick Mouse
Using the Keyboard and Joystick Mouse 5.1 Keyboard Functions Besides the usual keys, this keyboard also has extra-dedicated keys. Which provide the following hot key functions. The functions are described as below: Please Note: In order to use these keys under Windows® 98, it is necessary to have “KeyMaestro Input Device Driver”... -
Page 12: Using Keyboard Embedded Numeric Keypad
5.2 Using Keyboard Embedded Numeric Keypad The embedded numeric keypad consists of 16 keys and different functions in three ways. Note: Please install “KeyMaestro Input Device Driver” to show LED (NumLock) indication. As a part of the main keyboard. As a numeric keypad. As a cursor movement keypad. - Page 13 There are two keys to activate the embedded numeric keypad: NumLock: This is a toggle key. Press this key and toggle NumLock LED indicator. If NumLock LED indicator (located on system tray) is on, then the embedded numeric keypad function is activated. Shift: This key can be pressed together with the keys on embedded numeric keypad when NumLock LED indicator is on to switch as a cursor movement keypad.
-
Page 14: Using The Joystick
5.3 Using the Joystick “Joystick Function” can only be used when playing computer games. Press “Fn + ” to switch to “Joystick Function” When switching to Joystick Mode, an icon will appear on Windows system tray. 5.4.1 Joystick Buttons Default Setting: Button 1: Mouse Left Button Button 2: Mouse Right Button 1. - Page 15 5.4.2 Joystick Functions Specially Important: “Joystick Function” can only be used when playing computer games. Press “Fn + F12 ” to switch to “Joystick Function” Before starting to use the joystick, please go first to “Start Settings → Control Panel Game Controllers General Properties...
-
Page 16: Troubleshooting
Troubleshooting If you are experiencing problems with your keyboard, please check the following: Take out the receiver’s connector and check both the receiver’s keyboard plug for possible broken pins. If the plugs appear normal then reinsert the plugs into their respective connectors on your PC. - Page 17 封底內頁 11. If you can’t aim an object in a game easily, please calibrate the joystick. Go to “Start → Settings Control Panel Game Controllers General Properties Settings → → → → → Calibrate” → 12. When the game can’t recognize the joystick and or the joystick can’t be used in the game, please check the following: - Press “Fn + F12 ”...
- Page 18 封底 3100506170 Version 1.0 Jan. 2004 Printed in China...
