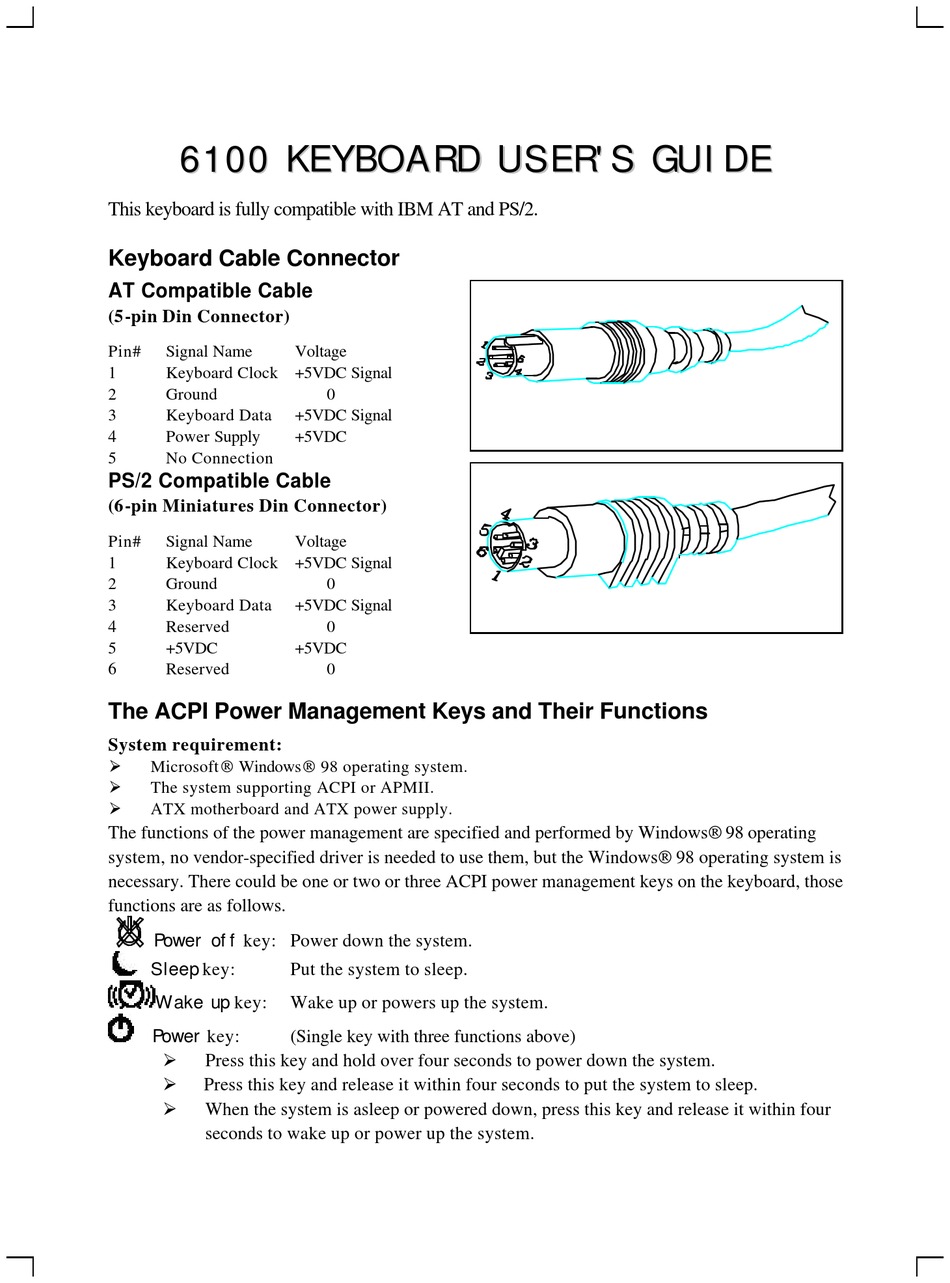

BTC 6100 User Manual

6 1 0 0 K
6 1 0 0 K

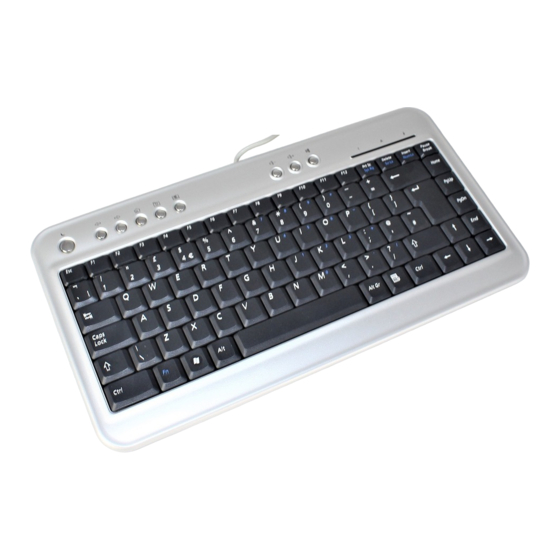

This keyboard is fully compatible with IBM AT and PS/2.

Keyboard Cable Connector

AT Compatible Cable
(5-pin Din Connector)
Pin# Signal Name
1 Keyboard Clock +5VDC Signal
2 Ground
3 Keyboard Data
4 Power Supply
5 No Connection
PS/2 Compatible Cable
(6-pin Miniatures Din Connector)
Pin# Signal Name
1 Keyboard Clock +5VDC Signal
2 Ground
3 Keyboard Data
4 Reserved
5 +5VDC
6 Reserved

The ACPI Power Management Keys and Their Functions

System requirement:
Microsoft ® Windows® 98 operating system.
Ø
Ø
The system supporting ACPI or APMII.
Ø
ATX motherboard and ATX power supply.
The functions of the power management are specified and performed by Windows® 98 operating
system, no vendor-specified driver is needed to use them, but the Windows® 98 operating system is
necessary. There could be one or two or three ACPI power management keys on the keyboard, those
functions are as follows.
Power off key: Power down the system.
Sleep key:
Wake up key:
Power key:
Ø
Press this key and hold over four seconds to power down the system.
Ø
Press this key and release it within four seconds to put the system to sleep.
Ø
When the system is asleep or powered down, press this key and release it within four
seconds to wake up or power up the system.
E Y B O A R D
E Y B O A R D
Voltage
0
+5VDC Signal
+5VDC
Voltage
0
+5VDC Signal
0
+5VDC
0
Put the system to sleep.
Wake up or powers up the system.
(Single key with three functions above)
U S E R ' S G U
U S E R ' S G
I D E
U I D E
