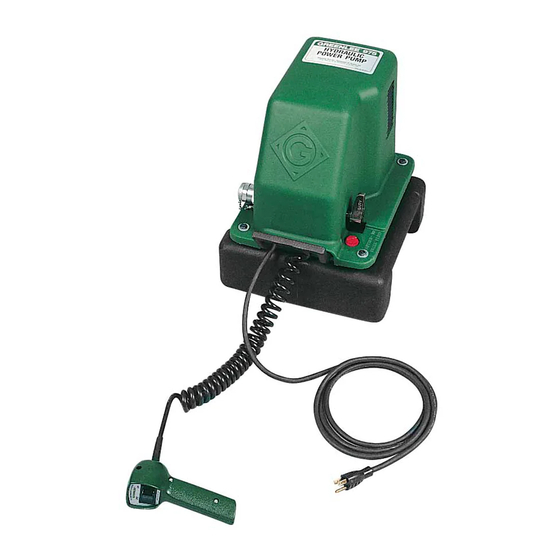

Greenlee 975 Instruction Manual

Hydraulic power pump
Hide thumbs Also See for 975:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
975
Hydraulic Power Pump
Serial Code TZ
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
999 8812.7
© 2002 Greenlee Textron
IM 1021 REV 13 12/02

Advertisement

Table of Contents
loading

Related Manuals for Greenlee 975

Summary of Contents for Greenlee 975

  • Page 1 INSTRUCTION MANUAL Hydraulic Power Pump Serial Code TZ Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 999 8812.7 © 2002 Greenlee Textron IM 1021 REV 13 12/02...

  • Page 2: Table Of Contents

    700 bar (10,000 psi). This pump is intended to provide hydraulic power for an accessory with a single-acting ram such as a Greenlee conduit bender or cable cutter. This pump has a factory-set internal pressure relief valve.

  • Page 3: Important Safety Information

    Failure to observe this warning will result in severe injury or death. Do not connect the pump to any system or system component other than those supplied by Greenlee. Other manufacturer’s components may not with- stand the maximum pressure and may fail. Nearby personnel can be injured by flying components and hydraulic oil.
  • Page 4 Inspect pump, hoses, couplers, and fittings for wear or damage. Replace worn, damaged or missing components with Greenlee replacement parts. Worn or damaged components can fail, resulting in injury. Failure to observe this warning can result in severe injury or death.

  • Page 5: Specifications

    Length ... 305 mm (12") Width ... 254 mm (10") Height ... 394 mm (15.5") Weight/Mass ... 23 kg (51 lbs) Greenlee / A Textron Company 975 Hydraulic Power Pump ® 13M) 6 cSt at 100 C (46 SSU AT 210 F) Volume 4455 Boeing Dr.

  • Page 6: Setup

    2. Remove any dust plugs from couplers. 3. Hand-tighten all couplings firmly (until all threads are fully engaged). Do not use tools. Greenlee / A Textron Company 975 Hydraulic Power Pump Electrical Connection Electric shock hazard: •...

  • Page 7: Operation

    3. Disconnect the hose slowly to release any trapped pressure. Greenlee / A Textron Company 975 Hydraulic Power Pump Note: To prevent leakage, this pump was shipped with an unvented plug installed in the reservoir fill hole. This plug must be replaced with the attached vented plug (6) before use.

  • Page 8: Maintenance

    3. Thoroughly clean the area around the fill hole. 4. Remove the vented reservoir plug. 5. Use Greenlee hydraulic fluid or an equivalent high- grade light hydraulic oil. See the “Parts List” section of this manual for Greenlee hydraulic oil specifica- tion and Greenlee part number.

  • Page 9: Draining And Flushing The System

    7. Check the oil lever of the reservoir. Add oil if necessary. Greenlee / A Textron Company 975 Hydraulic Power Pump Draining and Flushing the System Note: Thoroughly clean the pump exterior before removing the reservoir.
  • Page 10 Motor will not start under load. Motor starts, but stops when it encounters a load. Greenlee / A Textron Company How to use this table: If your hydraulic pump does not operate properly, find the description of the problem under the “Problem” column. Read the Probable Cause and the Possible Remedy.

  • Page 11: Troubleshooting

    Troubleshooting—Hydraulic Pump (cont’d) PROBLEM Ram will not advance. Ram advances slowly. Ram will not advance completely. Greenlee / A Textron Company PROBABLE CAUSE Low-pressure system has a partial or complete failure. Unvented plug has not been replaced. Oil level is too low.
  • Page 12 Ram advances erratically and retracts erratically. Pump will not build enough pressure to complete the job. Ram advances slowly. Greenlee / A Textron Company PROBABLE CAUSE Air in the hydraulic fluid. High-pressure system is faulty. System has an external hydraulic leak.
  • Page 13 Troubleshooting—Hydraulic Pump (cont’d) PROBLEM Ram will not hold pressure. Ram will not retract. Greenlee / A Textron Company PROBABLE CAUSE System has an external leak. Manual control valve needs adjustment or repair. The manual control valve is not in correct position.
  • Page 14 PROBLEM Pilot-operated valve will not open. Pilot-operated valve will not open fully. Pilot-operated valve opens too slowly. Greenlee / A Textron Company PROBABLE CAUSE The pilot piston does not return freely. Oil is cold. Wrong oil viscosity. Oil is dirty.
  • Page 15 Troubleshooting—Pilot-Operated Valve (cont’d) PROBLEM Pilot-operated valve will not close. Greenlee / A Textron Company PROBABLE CAUSE A particle of dirt or some other foreign object is holding the low-pressure bypass check valve open. Low-pressure bypass check valve is faulty. The ball seat of the low-pressure bypass check valve is damaged.

  • Page 16: Service

    Service GREEN GROUND INCOMING LINE Greenlee / A Textron Company Motor Control Unit 503 2363.6 Pendant Switch Control Wiring GREEN MOTOR WIRE LEAD TOP VIEW (GROUND) WHITE WHITE WIRE LEAD WIRE LEAD (POWER) POWER CORD BLACK WIRE LEAD PENDANT SWITCH CORD...
  • Page 17 Service (cont’d) Greenlee / A Textron Company 975 Hydraulic Power Pump Motor Control Unit 115V Franklin Electric ORANGE BLUE VIOLET 3X #10 115V General Electric WHITE ORANGE BLACK YELLOW 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 4X #8...
  • Page 18 Pilot-operated directional control valve 3 way, 2 position Manually operated check valve Female coupler half Greenlee / A Textron Company 975 Hydraulic Power Pump Sealing Instructions for Assembly Motor If the motor has been disassembled, seal with a 3 mm (1/8") bead of a silicone-based gasket/flange sealant,...

  • Page 19: Repairs

    MOTOR FACE 4.6mm (.180 inch) 4.1mm (.160 inch) Figure A1 Greenlee / A Textron Company Manual Release / Automatic Release Valve Handle Setting Refer to Figures A2 and A3. Thread in the shaft (62) until it just touches the check ball (55) (in its spring-loaded closed position).
  • Page 20 COVERPLATE 36.17 mm (1.424") 37.29 mm (1.468") Figure A5 Greenlee / A Textron Company High-Pressure Inlet Check Ball Travel The amount of allowable ball travel is critical to the optimum high pressure output (flow rate). Refer to Figure A5-1. Carefully and accurately measure (depth “mike”) the “A”...
  • Page 21 6.35 mm (.250") Ø BALL SEAT (LO-P RELIEF VALVE) 4.76 mm (.187") Ø REAM Figure B2 Figure B3 Greenlee / A Textron Company 975 Hydraulic Power Pump 7.94 mm (0.312") Ø BALL SEAT COVERPLATE 8.43 mm (“Q” 0.332") Ø DRILL 4.76 mm (0.187") Ø...

  • Page 22: Exploded View

    Exploded View Figs A1 & A3 Greenlee / A Textron Company Fig. A4 Fig A2 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 975 Hydraulic Power Pump Serial...

  • Page 23: Exploded Views

    34 N 25 foot-pounds • 68 N 50 foot-pounds • 503 4369.6 Hydraulic Repair Kit 503 5464.7 Release Knob Retrofit Kit Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 975 Hydraulic Power Pump...

  • Page 24: Parts List

    905 2339.3 503 3527.8 905 1269.3 501 4557.6 905 0533.6 905 3707.6 Greenlee / A Textron Company 975 Hydraulic Power Pump DESCRIPTION Carrying Handle ... 2 1/4–20 x 1-1/4" Hex Head Screw ... 4 Decal ... 1 Motor, 115 VAC, 1/2 hp ... 1...

  • Page 25: Parts List

    503 3531.6 503 3532.4 503 3525.1 503 2934.0 905 3699.1 905 3517.0 Greenlee / A Textron Company 975 Hydraulic Power Pump DESCRIPTION Eccentric Shaft ... 1 Rollpin, 3/16" x 1" ... 1 Set Screw, 10–32 x 1/4" ... 1 Ball Bearing, #3206 ... 1 Ball, 3/16"...
  • Page 26 Grainger #4X070 1B/16Ø x 4-3/8 Canada International 4455 Boeing Drive, Rockford, IL 61109-2988 • USA • 815-397-7070 An ISO 9001 Company • Greenlee Textron is a subsidiary of Textron Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070 QTY. PSA4R 10400N...
