OPERATION, SERVICE AND PARTS
INSTRUCTION MANUAL
HYDRAULIC POWER PUMPS
940-PS Series
Read and understand this material before
operating or servicing this tool. Failure to
understand how to safely operate the tool
could result in an accident causing serious
injury or death.
999 6464.3
© 1997 Greenlee Textron
IM 808 REV 1 6/97
Advertisement
Table of Contents
Related Manuals for Greenlee 940-PS
Summary of Contents for Greenlee 940-PS
- Page 1 Read and understand this material before operating or servicing this tool. Failure to understand how to safely operate the tool could result in an accident causing serious injury or death. 999 6464.3 © 1997 Greenlee Textron IM 808 REV 1 6/97...
-
Page 2: Safety Alert Symbol
Safety is a critical factor in the design of Greenlee equipment. The best program starts with a safety-conscious operator. The information highlighted in this bulletin describes operating practices for the benefit of the workers who will use our equipment in their daily jobs. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Do not connect the pump to any system or system component other than those supplied by Greenlee and rated at less than 10,000 psi (68,950 kPa). • Do not alter the internal high-pressure relief valve setting. -
Page 4: Power Connections
Blue (4) Greenlee Textron / Subsidiary of Textron Inc. Power Connections The 940-PS is shipped wired for 115 volt AC operation unless specifically ordered for 230 volt AC operation. If 230 volt AC operation is desired and your pump has... -
Page 5: Pump Specifications
Series Servicing Instructions Filling Oil Reservoir. The oil reservoir must be kept filled with a good grade of light hydraulic oil—Greenlee 905 0806.8 hydraulic oil or equal in order or the pump to operate properly. Never use synthetic fluids or fluids with poor lubricating qualities, i.e., brake fluids, etc., as... - Page 6 If the above corrective measures fail to make the pump function, it is recommended that you send the pump back to the factory or to a qualified service center. Greenlee Textron / Subsidiary of Textron Inc. continues, the unit should be returned to the factory or to a qualified service center for the proper repair.
- Page 7 SA or TA Model by attaching the type of valve required. 940-PS. This pump is equipped with a hose connection unit which permits the connection of 3/8" high pressure hoses directly to the pump. It can also be adapted very easily to an SA or TA Model by removing the hose connection unit and attaching the type of valve required.

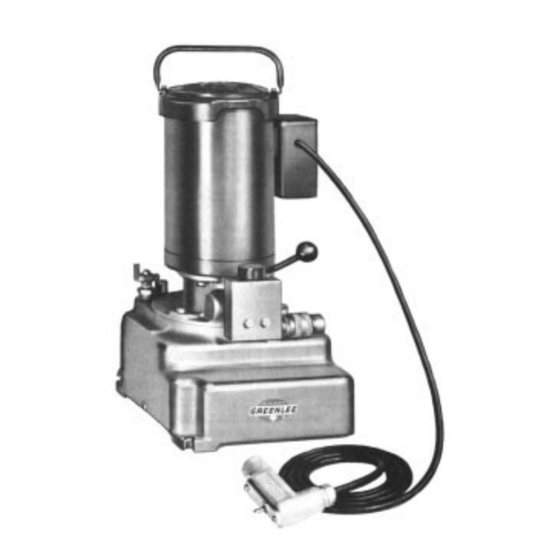

- Page 8 940-PS Series Hydraulic Power Pumps Identification 940-TA-PS 940-SA-PS 940-PS 940-BASIC-PS Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
- Page 9 940-PS Series Hydraulic Power Pumps MOMENTARY SUSTAINED Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
- Page 10 940-PS Series Hydraulic Power Pumps Identification (cont’d) Serial Number ˚ Location SECTION Greenlee Textron / Subsidiary of Textron Inc. 40 44 55 58 57 59 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
- Page 11 940-PS Series Hydraulic Power Pumps SECTION Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 6 17 815/397-7070...
- Page 12 905 0327.9 905 0506.9 905 0530.1 905 0713.4 905 0051.2 918 5264.1 Greenlee Textron / Subsidiary of Textron Inc. Description Block Unit, Pump (#1-35) ... 1 Valve Unit, Lo-Pressure Relief... 1 Valve Unit, RELIEF ... 1 Pump Block ... 1 Plate, Pump Mounting ...
- Page 13 918 5293.5 918 5303.6 918 5276.5 905 0806.8 905 1069.3 940-PS (501 6549.6) Hydraulic Pump (includes #A through 68, & C) Part No. Description 501 6152.0 Hose Connection Unit 940-SA-PS (501 6551.8) Hydraulic Pump (includes #A through 68, & D) Part No.
- Page 14 Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Drive, Rockford, IL 61109-2988 USA General Offices: 815/397-7070 Customer Center and Field Service: 800/435-0786 Fax (24 Hour) Customer Center: 800/451-2632 • 815/397-1865 Canada Fax (24 Hour) Customer Center: 800/524-2853 Printed in the U.S.A.
