Inovonics EchoStream EN1233S/D Installation Instructions

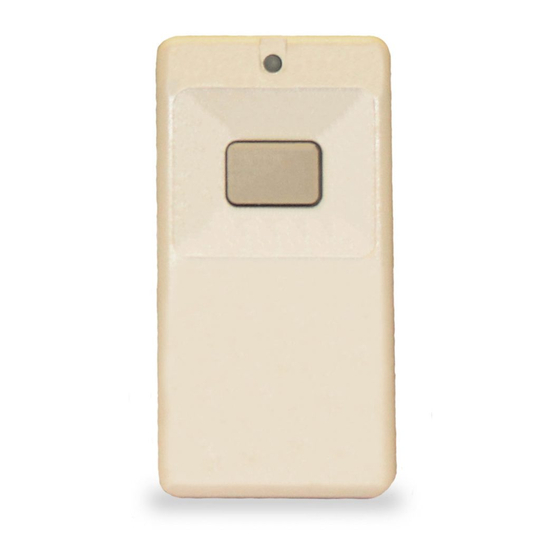

EchoStream® EN1233S/D and EN1235S/D
Pendant Transmitter
Installation Instructions

1 Overview

1.1 Inovonics Wireless Contact Information

If you have any problems with this procedure, contact Inovonics
Wireless technical services:
• E-mail: support@inovonics.com
• Phone: (800) 782-2709

1.2 Pendant Transmitter Components

A
B

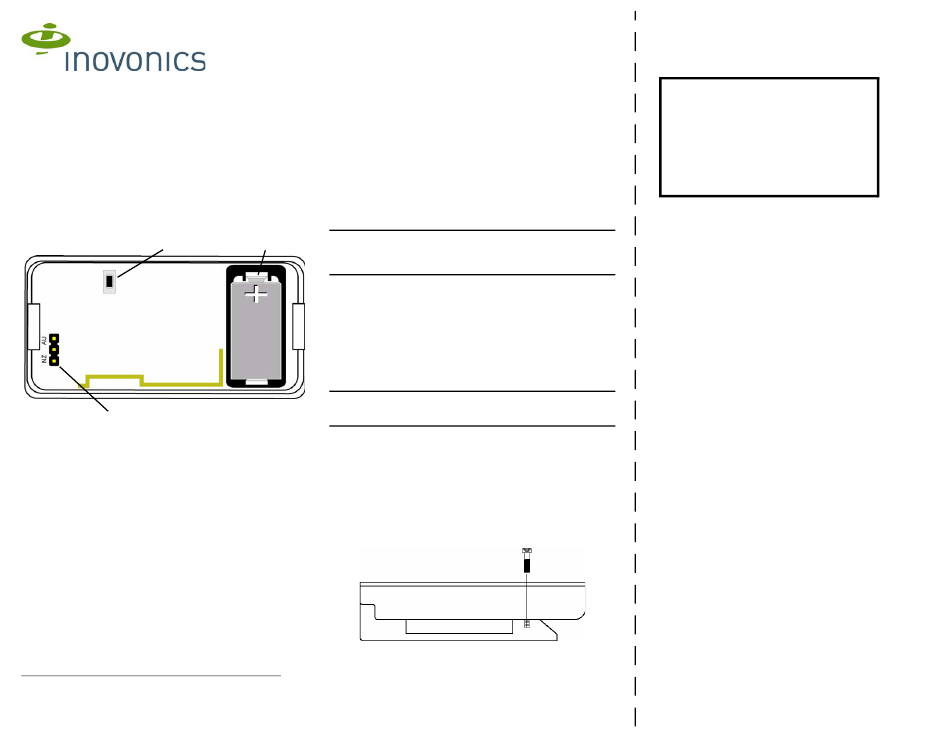

Figure 1 Pendant Transmitter components
A Reset button B Frequency band selection pins
C Battery
1.3 What's In The Carton
Individually-packaged products include the following items:
• One belt loop screw
• One selection jumper
• One 3.0V lithium battery

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by professional
security technicians
• Products are intended for indoor use
• All products should be manually tested weekly (see "Test the
Transmitter" on page 2)
4/11/14 05596E_v1 © Inovonics, 2014 - www.inovonics.com

2.2 Initial Setup

Install the Battery
1. Pry the housing apart at either end and pull the two halves
apart.
2. Install the battery.
Select the Frequency Band
EchoStream products are able to use a range of radio frequencies,
and must be configured for your geographic area. This product
ships with a default frequency range of 902-928 MHz for use in
North America. If you are using the product in North America, skip
to "Register the Pendant Transmitter". If you are using the product
in Australia or New Zealand, you will need to configure the
transmitter.
3. Place a selection jumper on the appropriate frequency band
selection pins.
• Place the jumper on the bottom pins, marked NZ, to set the
frequency range to 921-928 MHz for New Zealand.
• Place the jumper on the top two pins, marked AU, to set the
frequency range to 915-928 MHz for Australia.
4. Press the reset button to complete configuration.
Caution: When pressing the reset button, make sure you don't also
C
touch the frequency band selection pins. Touching the frequency
band selection pins while pressing the reset button can
inadvertently set the pendant to the wrong frequency band.
Register the Pendant Transmitter
The pendant transmitter must be registered with the system in order
to be monitored and supervised. When supervised, the pendant
transmitter will send a check-in message to the serial receiver or
network coordinator every three minutes.
Each pendant has a unique factory-programmed identification
number. Refer to the control panel's installation instructions for
details on registering a transmitter.
5. When prompted by the receiver to reset transmitter, press the
reset button.
6. Replace the cover.
Caution: The pendant should be tested after registration to ensure
operation. To test the pendant, activate each of the conditions and
ensure an appropriate response.

3 Operation

3.1 Using The EN1233 Pendant Chain

Always use the chain included with the ES1233. Substituting
stronger cords or chains may result in injury to the wearer.

3.2 Converting the Pendant Transmitter Belt Clip

If you'd like to convert the pendant transmitter belt clip to a belt loop,
secure the bottom of the belt clip to the housing with a coarse
thread screw.
Figure 2 Use a coarse thread screw to secure the belt clip
