EE1216 EchoStream Dual Input
Universal Transmitter with Wall Tamper

Installation Instructions

1 Overview

The EE1216 dual input universal transmitter with wall tamper is
designed for use with almost any standard contact or sensor,
and includes two inputs for maximum flexibility. It is fully
supervised and includes a wall tamper switch that notifies the
system when the transmitter is removed from its mounted
surface.

1.1 Inovonics Contact Information

For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
If you have any problems with this procedure, contact Inovonics
technical services:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.
6/19/17 04933F © Inovonics, 2017 - www.inovonics.com

1.2 EE1216 Internal Components

D
E G
C
H
B
I
J
A
F

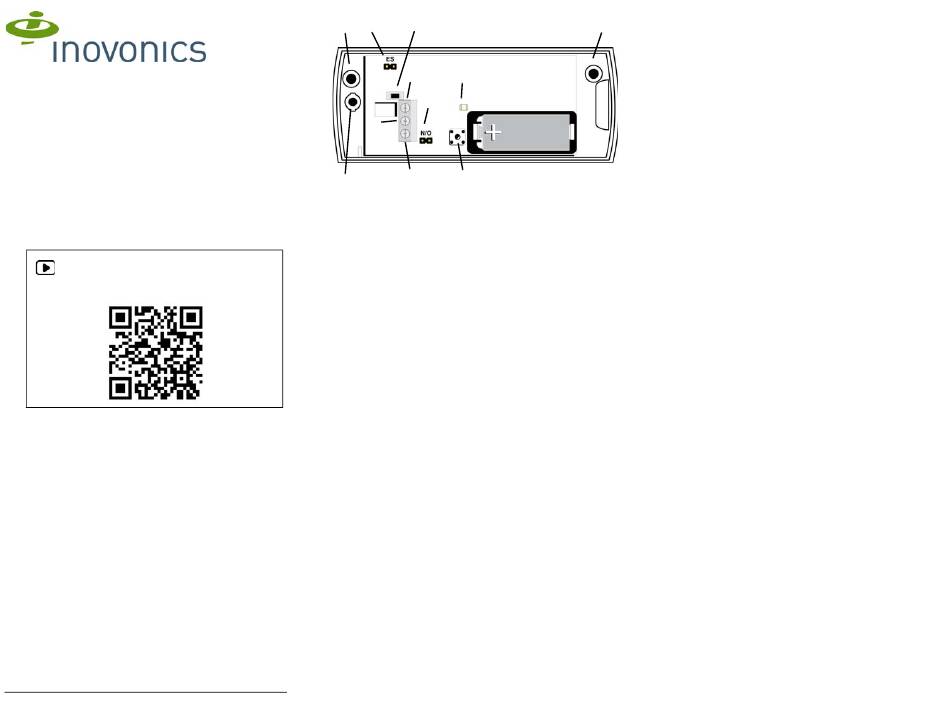

Figure 1 EE1216 components
A Housing tamper button B NO/NC selection pins
C Transmit LED D Reset button
E Wall-mount screw holes F Housing screw hole
G EchoStream select compatibility H Input two
selection pins
I Ground J Input one
1.3 What's In the Carton
• One 3.0V lithium battery, Inovonics part number BAT604.
• Two wall mount screws.
• Two wall mount anchors.
• Two selection jumpers.
• One housing closure screw.

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by
professional security technicians.
• Products are tested for indoor use.
• All products should be manually tested weekly.

2.2 Install the Battery

E 1. Use your thumb to depress the housing release tab on the
bottom of the transmitter; separate the housing.
2. Install the battery.

2.3 Wiring the Contacts

The transmitter has a three-terminal contact block that can
connect inputs from one or two external contact loops. The
middle terminal is a ground, which is shared by both contact
loops. Input one can be configured for either a normally open or
a normally closed contact loop; input two is always normally
closed.
3. Connect wiring for the inputs you will be using.
4. If you are not using input two, connect wiring between the
input terminal and the ground terminal to set it for normally
closed.

2.4 Select Input Type

The NO/NC selection pins allow the choice of a normally open or
normally closed state for the contact circuit wired to the input one
terminal. The terminal is shipped set for normally closed, with no
selection jumper on the NO pins. If you need to set the terminal
for normally open, you will need to configure the input type;
otherwise, skip to section 2.5, "Select the EchoStream Select
Compatibility".
To configure the input type:
5. Place a selection jumper on the NO/NC selection pins to
select normally open.
6. Press the reset button.

2.5 Select the EchoStream Select Compatibility

To meet ETSI requirements, Inovonics has developed a new line
of EE 868MHz-only products. These new 868MHz-only products
are compatible with older systems that include EchoStream
select products. If you are using any ES products in your current
system, you will need to enable EchoStream select compatibility
on this new 868MHz-only product; if you are not using any
EchoStream select products, skip to section 2.6, "Register the
EE1216".
To enable/disable EchoStream select compatibility:
7. Place a selection jumper on the enable EchoStream select
compatibility selection pins.
8. Press the reset button.

2.6 Register the EE1216

Transmitters must be registered with the system in order to be
monitored and supervised. When supervised, the transmitter will
send a check-in message to the receiver. Transmitters using the
868MHz frequency range for Europe will send a check-in
message every 12 minutes; all other transmitters will send a
check-in message every three minutes. Each transmitter has a
unique factory-programmed identification number. Refer to the
receiver installation instructions for details on registering a
transmitter.
9. When prompted by the receiver to reset transmitter, press
the reset button.
10. Test the transmitter and ensure appropriate response.
