Summary of Contents for Iiyama ProLite T2736MSC-B1

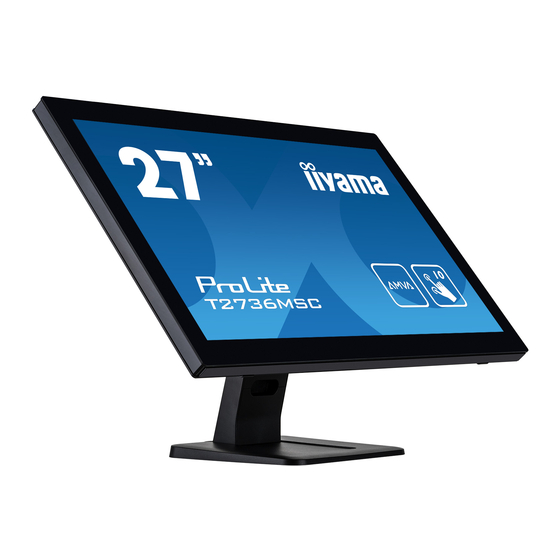

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLT2736M We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ...........8 COMPUTER SETTING ..............9... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before removal or installation to avoid electric shock or damage. -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> Scroll up / Audio Adjust / Blue Light Reducer Button (UP) Scroll Down / ECO Button (DOWN) Auto Button (AUTO) Menu Button (MENU) Power Switch (POWER) Power Indicator <Right Side> NOTE Blue: Normal operation Orange: Power Management Speakers USB Downstream Connector ( USB Downstream Connector ( ) USB Downstream Connector ( USB Upstream Connector ( Audio Connector ( VGA Connector (VGA) HDMI Connector (HDMI) DisplayPort Connector (DP) AC Connector ( : Alternating current) ( Keyhole for Security Lock <Back>... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 13: Computer Setting
Change to the desired signal timing listed on page 25: COMPLIANT TIMING. Windows 7/8/8,1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 7/8/8,1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 73 degrees upward, 3 degrees downward. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust ProLite T2736MSC PICTURE ADJUST BRIGHTNESS GEOMETRY COLOR SETTINGS CONTRAST MODE1 EXTRA I-STYLE COLOR STANDARD ADV. CONTRAST Adjustment Item Problem / Option Button to Press Too dark Brightness * Too bright DOWN Too dull Contrast Too intense DOWN Normal Mode1... - Page 17 Geometry ProLite T2736MSC PICTURE ADJUST GEOMETRY GEOMETRY PIXEL CLOCK COLOR SETTINGS PHASE HORIZONTAL POSITION EXTRA VERTICAL POSITION ASPECT FULL Adjustment Item Problem / Option Button to Press Too narrow Pixel Clock* Too wide DOWN Phase* To correct flickering text or lines DOWN Too left Horizontal Position* Too right DOWN Too low...
- Page 18 Color Settings* ProLite T2736MSC COLOR SETTINGS PICTURE ADJUST GEOMETRY GAMMA GAMMA1 COLOR SETTINGS COLOR TEMP USER USER PRESET EXTRA GREEN BLUE Adjustment Item Problem / Option Button to Press Gamma1 Normal Gamma Gamma2 Dark Gamma3 High contrast Too weak Green User Too strong Blue...
- Page 19 ProLite XB2380HS PICTURE ADJUST ON SCREEN DISPLAY SETTINGS GEOMETRY OSD HORIZONTAL POSITION COLOR SETTINGS OSD VERTICAL POSITION OSD TIME EXTRA LANGUAGE ENGLISH Adjustment Item Problem / Option Button to Press OSD is too left OSD Horizontal Position OSD is too right DOWN OSD is too low OSD Vertical Position...
- Page 20 Select the HDMI input. Select the DisplayPort input. Audio Input* LINE IN Select the LINE IN input. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on. The Power Indicator is turned Off.
- Page 21 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the UP Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud DOWN...
-
Page 22: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 23 Press the Auto Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 24 Adjust the FINE to correct horizontal wavy noise, flicker or blur in the zebra pattern. DOWN In case the strong flicker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 27: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. Recycling information 23... -
Page 28: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Technology Projected capacitive 10pt Light transmission Hardness Touch Screen Thickness 2.2mm Communication system Response time 10ms Size Category 27" Panel technology AMVA Size Diagonal: 27" (68.6cm) Pixel pitch 0.311mm H × 0.311mm V Brightness 300cd/m (Typical: without Touch panel), 255cd/m (Typical: with Touch panel) Panel Contrast ratio 3000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) -
Page 29: Dimensions
DIMENSIONS 659.5mm/26.0” 599.5mm/23.6” 58.0mm/2.3” 235.5mm/9.3” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
