Product Manual

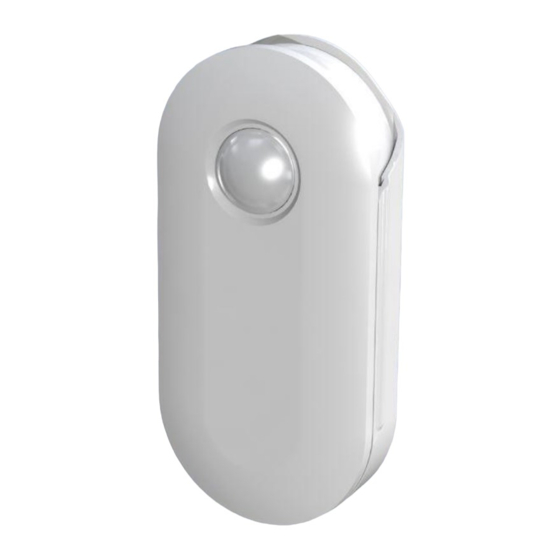

LS1401 Light Sensor
PRODUCT DESCRIPTION
The Audacy LS1401 Light Sensor is a battery
powered device specially designed to detect
ambient light levels and wirelessly transmit
this information to the Audacy Gateway.
The information provided by the sensor is
used to determine the amount of artificial
light needed in given space. This provides
for daylight harvesting and reduction of
energy consumption. The product has a 25-
year battery life design and will not require
AC or DC line power, providing building
owners and occupants placement flexibility.
KEY FEATURES
FCC and IC approved
Flexible ceiling mounting options
25+ year battery life
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.
ND7948-1 01/2014
Sensor
All other trademarks are the property of their respective owners.
Users Manual – LS1401 Light
www.idealindustries.com
PRODUCT CONTENTS
The following items are included inside the
package:
Qty Description
1
Light Sensor LS1401
1
Sensor Cradle
2
Mounting Screw
1
Locking Screw
1
Instruction card
Page 1
Advertisement
Table of Contents
Related Manuals for IDEAL Audacy LS1401
Summary of Contents for IDEAL Audacy LS1401
- Page 1 Sensor Cradle Mounting Screw Locking Screw Instruction card Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES. All other trademarks are the property of their respective owners. ND7948-1 01/2014 Users Manual – LS1401 Light Sensor Page 1...
- Page 2 Product Manual LS1401 Light Sensor SET-UP AND OPERATION 1. Wall-mount the LS1401 cradle in the desired location with the optional mounting screws(2). Cradle can be mounted directly to drywall. 2. Press the button located on the bottom side of the Light Sensor LS1401 to activate device.
- Page 3 Product Manual LS1401 Light Sensor MECHANICAL (REAR VIEW) *Dimensions in inches MECHANICAL (TOP VIEW) *Dimensions in inches ND7948-1 01/2014 Users Manual – LS1401 Light Sensor Page 3 www.idealindustries.com...
- Page 4 Product Manual LS1401 Light Sensor SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: contactus@idealindustries.com ND7948-1 01/2014 Users Manual – LS1401 Light Sensor Page 4 www.idealindustries.com...
- Page 5 COMPLIANCE STATEMENTS This device is intended for commercial and industrial applications. Changes or modifications not expressly approved by IDEAL INDUSTRIES could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 6 IDEAL INDUSTRIES, INC. for its use, nor for any infringements of patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC. assumes no liability for misuse of this product. Specifications are subject to change without notice.
- Page 7 Customer and the sole liability of IDEAL INDUSTRIES shall be, at the option of IDEAL INDUSTRIES, to replace or repair the affected products, or to refund to Customer the price of the affected products. The availability of replacement products is subject to product discontinuance policies at IDEAL INDUSTRIES.
- Page 8 Product Manual LS1401 Light Sensor ND7948-1 01/2014 Users Manual – LS1401 Light Sensor Page 8 www.idealindustries.com...
