IDEAL Audacy LS1403 Product Manual

IDEAL Audacy LS1403 Product Manual

Flush ceiling mount occupancy/vacancy sensor

Advertisement

Quick Links

Product Manual
LS1403 Flush Ceiling Mount Occupancy/Vacancy Sensor

PRODUCT DESCRIPTION

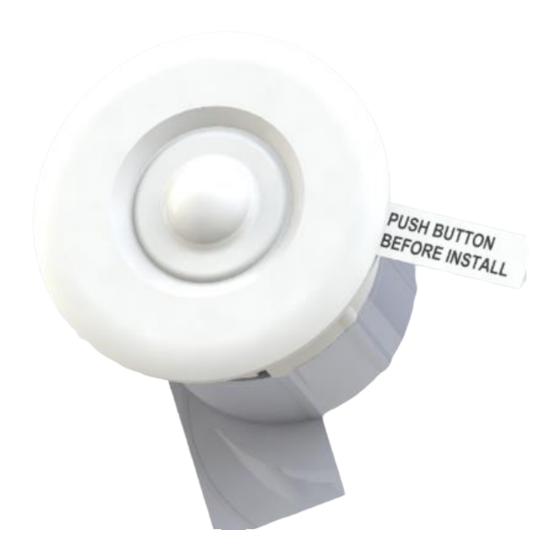

The Audacy LS1403 Occupancy/Vacancy
Sensor is a battery powered device specially
designed to detect the presence or absence
of occupants and wirelessly transmit this
information to the Audacy Gateway. The
information provided by the sensor is used
to determine whether lights should remain
on or turned off to reduce energy
consumption. The product has a 25-year
battery life design and will not require AC or
DC line power, providing building owners
and occupants placement flexibility.

KEY FEATURES

FCC and IC approved
Flexible ceiling mounting options
25+ year battery life
Small form factor with internal antenna
RoHS compliant
Factory configurable for custom
applications
Audacy®, Smart Connector® and Smart Switch® are registered trademarks of IDEAL INDUSTRIES.

SET-UP AND OPERATION

NDXXXX-X 12/2018
All other trademarks are the property of their respective owners.
Users Manual – LS1403 Occupancy/Vacancy Sensor
Page 1
www.idealindustries.com

PRODUCT CONTENTS

The following items are included inside the
package:
Qty Description
1
Occ/Vac Sensor LS1403
1
Trim Ring
1
Instruction card
