OWNER’S AND INSTALLATION MANUAL MOBILE HOME AIR CONDITIONER WAVE HTW-VE-035V1 Thanks for choossing our product. Please, read carefully this manual before using the product...
CONTENTS A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT ........1 ELECTRICAL DATA ......................1 ELECTRIC DIAGRAM ......................2 ELECTRIC DIAGRAM(WIFI) ....................3 PACKING LIST ........................4 PARTS NAME........................5 OPERATION OF WIRELESS REMOTE CONTROLLER ............6 CONTROL PANEL ......................13 CONTROL PANEL(WIFI).....................14 INSTALLATION INSTRUCTION..................15 ..15 STEP 1-SELECTING AN INSTALLATION LOCATION & INSTALLING THE ROOF TOP AIR CONDITIONER ..................18 STEP 2-MOUNTING OUTDOOR UNIT ................19...
Page 3
INSTALLATION PRECAUTION WARNING: ● Observe all governing codes and ordinances. ● Do not use damaged or non-standard power cord. ● Be caution during installation and maintenance. Prohibit inco rrect operation to prevent electric shock, casualty and other accidents. Working temperature range Suggested working temperature range: +4 ~ 46℃.
A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT Thank you for choosing the Recreational Vehicle Air Conditioner. This manual will supply you with all the information for installation, operation and maintenance. Take a few minutes to discover how to get the most in cooling comfort and economic operation from your new air conditioner.
PACKING LIST Pac k i ng Lis t of Indoor Unit TIMER ON LIGHT Bolt s u b-as s y M8X135 (4) s p onge (air duc t ) remote c o ntroller Remote c o ntroller holder Tapping s c r ew Sunk s c r ew (2) ST4.2X9.5 TA (8) Sc r ew c a p (6)

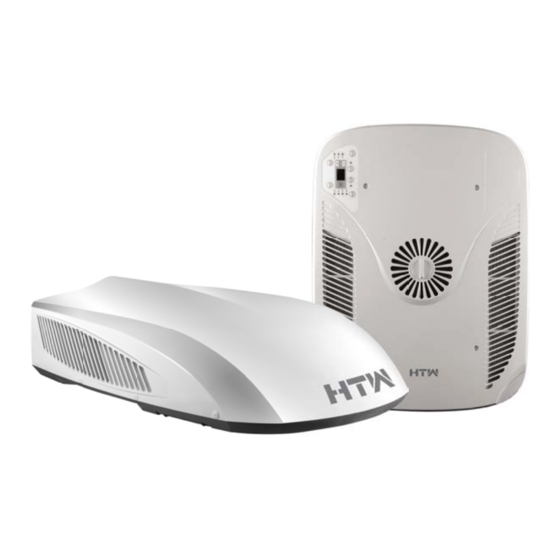

PARTS NAME Indoor Unit Air-outgrille LED indic a tor Filter s u b-as s y Control panel (membrane) Air-in grille (Display content or position may be different from above TIMER ON LIGHT graphics, please refer to actual products) remote controller Outdoor Unit Outer c a s e Air-in grille...
OPERATION OF WIRELESS REMOTE CONTROLLER Buttons on remote controller Note: This remote c o ntroller is the univ e rs a l remote c o ntroller. Some func t ion is not av a ilable for this unit. ON/OFF button MODE button - button + button...
Page 10
Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
Page 11
FAN button Press this button, Auto, Low, Middle, High speed can be circularly selected. After powered on, Auto fan is not available for this mode. When pressing AUTO button, the fan speed will not change. AUTO Low fan Middle fan High fan Note: Under the Dry mode, the fan speed isn't adjustable, low fan speed is imperative, but when operating this button, the wireless adjustable, low fan speed is imperative.
Page 12
quickly change, the way of change is: During the initial 2.5 seconds, ten numbers change in the one place of minute, then the one place is constant, ten numbers change in the tens place of minute at 2.5 seconds speed and carry. During 5s blink, press the Timer button, the timer setting succeeds.
Page 13
LIGHT button Press this button to select LIGHT on or off in the displayer. When the LIGHT on is set, the icon will be displayed and the indicator light in the displayer will be on. When the LIGHT off is set, the icon will be displayed and the indicator light in the displayer will be off.
Page 14
Operation guide General operation 1. After powered on, press ON/OFF button, the unit will start to run. (Note: when it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3.
Page 15
Replacement of batteries in remote controller battery 1. Press the back side of remote controller marked reinstall the cover of battery box along the arrow direction. 2. Replace two 7# (AAA 1.5V) dry batteries, and remove make sure the position of "+" polar and "-" polar are correct.
CONTROL PANEL Note: If the remote controller is missing, operate on the control panel. TURBO HIGH Not available for cooling only model ON/OFF button MODE button Select the operation mode, COOL, DRY, Operation starts when pressing this button, and FAN, HEAT (for heat pump model) or stops when pressing this button again.
CONTROL PANEL GRH085DA-K3NA1A(WIFI) GRH120DA-K3NA1A (WIFI) Note: If the remote controller is missing, operate on the control panel. TURBO HIGH Not available for cooling only model WIFI ON/OFF button MODE button Select the operation mode, COOL, DRY, Operation starts when pressing this button, and FAN, HEAT (for heat pump model) or stops when pressing this button again.
INSTALLA TION INSTRUCTION BEFORE INSTALLATION Testrun the unit with proper power supply. Refer to the operation instruction section in the Owner’s Manual Operation & Installation. Make sure all the controls operate correctly then disconnect the power supply of the unit. ●...
Page 19
CASE B. If a roof vent opening is not used,a new opening(see figure 1)will be cut into the vehicl roof. A matching opening will also have to be cut into the interior vehicle ceiling,be careful when cutting the ceiling opening because if the ceiling opening is carpeted,snagging could occur. After the opening in the roof and interior ceiling are the correct size,a framed support structure must be placed between the exterior roof top and interior ceiling.The reinforced framed structure must follow the follwing guidelines:...
Page 20
Note: Try you best to put the unit on the horizontal surface for operation. The unit can only operate for a short time at the maximum sloping angle of 5º for preventing water leakage. Level Level Level Above or Below Above Level 5°...
STEP 2-MOUNTING OUTDOOR UNIT 1.Open the package and take out the outdoor unit 1) When taking out the outdoor unit after unpacking, do not lift the air outlet grille at the back of outer case (see Figure4-1). Figure4-1 2.Fix the outdoor unit at the roof of vehicle and then drill holes.
STEP 3-INSTALLING THE CEILING ASSEMBLY Make sure that you have properly matched the roof top air conditioner and interior ceiling assembly.Caution before tightening bolts: 1.The applicable thickness of vehicle roof ranges from 30mm~80mm. 2.Before tightening bolts, screw in the four bolts manually and prohibit screwing forcibly. 3.When screwing bolts, you can use automatic tool.
STEP 4-ELECTRICAL WIRING ROUTING 220-240V AC WIRING WARNING Make sure that all power supply to the unit is disconnected before performing any work on the unit to avoid the possibility of shock or injury and/or damage to the equipment. After the interior ceiling assembly frame is properly secured to the roof top air conditioner, the following electrical connections must be performed.
STEP 5-COMPLETING THE INSTALLATION To complete the installation and system checkout requirements, the following steps must be performed. Check the thermostat position. Make sure the thermostat is routed through the holding guide and is not touching any metal surface. Make sure the guide louver and the filters are properly positioned in the ceiling grille. Secure the ceiling grille to the ceiling assembly frame with 4 screws.
TROUBLESHOOTING GUIDE If you have problems with your recreational vehicle air conditioner, check this guide before contacting your service representative. TROUBLE POSSIBLE CAUSE SOLUTION The unit can The unit may not be connected to the Check the power supply of the vehicle and make sure it is not start power supply correctly.
NORMAL MAINTENANCE PROCEDURES ACTIVETY FREQUENCY Remove the cover and wash the condenser coil Twice a year. Clean the filter When the air conditioner FILTER CHECK (More frequent cleaning may be necessary light on. depending on the air quality) HOW TO REMOVE THE AIR FILTER Remove the air filters by pulling them as illustrated below.
Page 27
Figure a Sketch map of claspdismantle tool Choose appropriate size that fits your hand feeling Figure b Sketch map of clasp in different status Clasp core Clasp base about 3mm Before After Demountable status Figure c - 24 -...
Page 28
WARNING FAILURE TO FOLLOWING INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY Don’t touch the capacitor terminals without the electric discharge, the capacitor still may have the high voltage even though the power supply is turned off. Be careful when you maintain the refrigeration system, which has the high internal pressure. Do not block the filter and the indoor air inlet badly to prevent water leakage.
Page 29
