Chipper Shredder

User's Manual

BWM PRO 100 SERIES

Please read through this owner's manual carefully before using the product, to insure the safety of yourself

and others.

*Due to continuing improvements, actual product may differ slightly from the product described herein.

Table of Contents

Summary of Contents for B.W. Machinery BWM PRO 100 Series

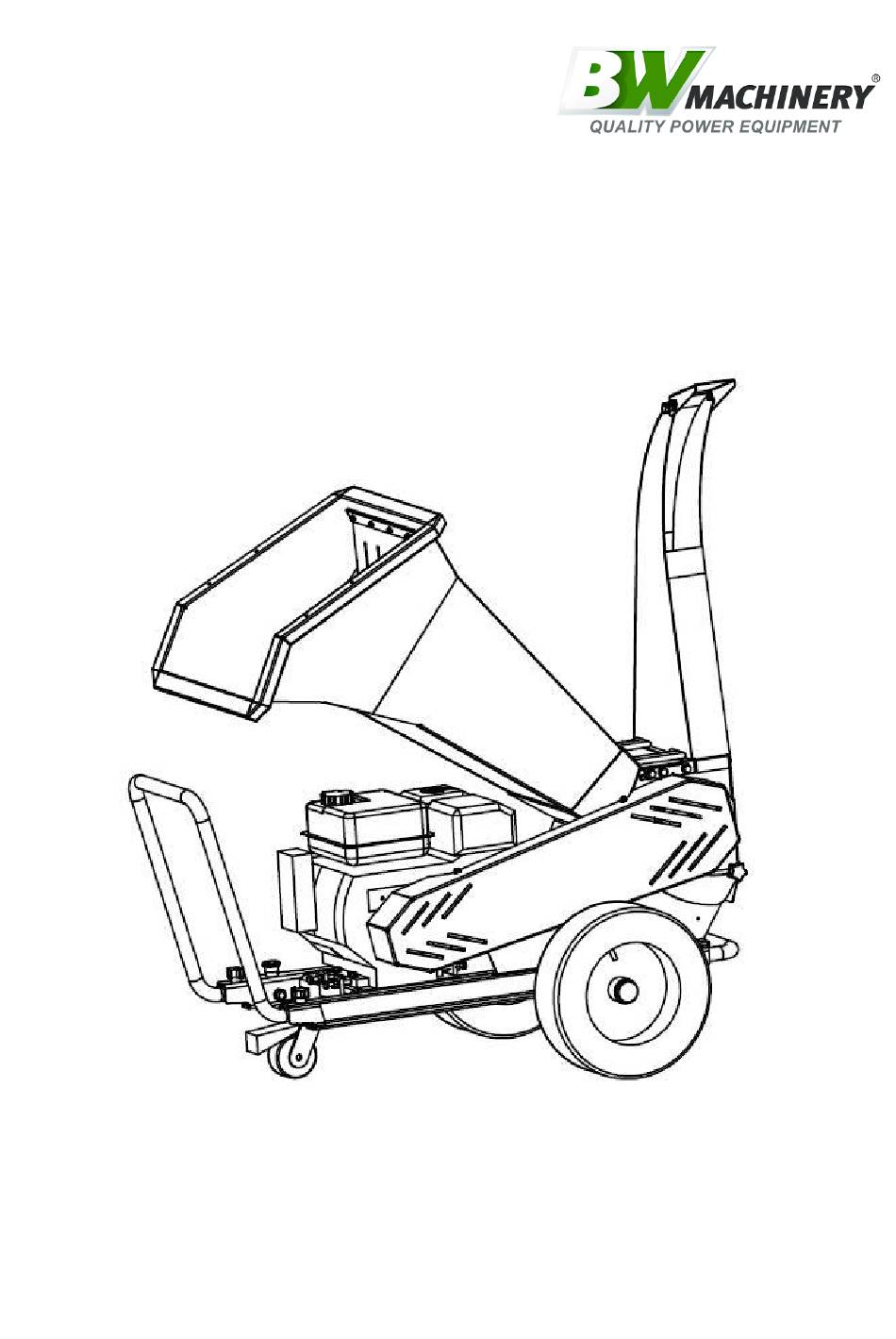

Page 1 Chipper Shredder User’s Manual BWM PRO 100 SERIES Please read through this owner’s manual carefully before using the product, to insure the safety of yourself and others. *Due to continuing improvements, actual product may differ slightly from the product described herein.
Page 2: Table Of Contents
Index 1. Safety Instructions ................. 1 2. Technical Features ................. 2 3. Installation Steps ..................3 4. Operating Instructions ................6 4.1 Starting Machine: ................6 4.2 Chipping: .................... 7 4.3 Emergency Button: ................8 4.4 Blocking of The Rotor:..............8 4.5 Stopping Machine: ................
Page 3: Safety Instructions
11. Before using the machine, please read the carefully the instructions and understand well. Failure to comply with instructions could result in personal injury and/or damage to BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 4: Technical Features
Max. Chipping Capacity: 100mm Chipping Fineness: Granulated detrital Function: Chipping leaves, branches, crop straw and farming feeds and etc. Max. Blade Speed: 2450rpm Engine Type: OHV 4-stroke Briggs & Stratton or Honda BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 5: Installation Steps
❖ The above blade maximum speed is achieved with the engine running at the maximum output. 3. Installation Steps Step1 — Wheels and Front support wheel ( make sure the bolts are bottom up) BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 6 Step2 — Handle assembly Step3 — Feeding hopper assembly BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 7 - Cover the high output when it is moved. Put cover 4 and tighten the bolts 3 - Release knob 1 and open low deflector. screw off bolts 2. HOLD THE INSIDE BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 8: Operating Instructions
4. Operating Instructions 4.1 Starting Machine: ❖ Before starting the engine, make sure the correct engine oil is added first (see chapter 5.4). Ensure the machine is on stable level ground. BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 9: Chipping
Blunt blades may also be the problem. (see chapter 5.3 on how to change the blades) If the machine becomes jammed, stop the engine immediately. Remove the blocked materials and restart the engine. (see chapter 4.4) BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 10: Emergency Button
❖ Turn the rotor shaft in counter clockwise direction by rotor spanner. ❖ Use a branch or a stick to remove any blocked materials in the drum. Do not use your hands. BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 11: Stopping Machine
How often to lubricate is determined by the environment and the frequency of usage. The bearing needs to be greased after 50 hours of operation as insufficient lubricating oil can damage the bearing. BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 12: Chipper Parts Regularly Checking
❖ After installing the blades, check the gap between the blades and the anvil. The gap should be no smaller than 0.5mm and not bigger than 1mm. (See Fig.3) FIG 1 FIG 2 FIG 3 BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 13: Changing Engine Oil
3. For storage, keep the machine out of reach of children. Store the machine in a well ventilated place. Drain the fuel into a petrol tank if not using is for an extended period of time. BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 14: Troubleshooting
Open the belt cover and change the belt. Need to adjust blade anvil. The gap should be Chipped material too coarse no smaller than 0.5mm and not bigger than 0.95mm. (see chapter 5.3) BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 15: Spare Parts Diagram
Belt cover holder Nylon locknut M6 Belt cover support Spring washer M6 Belt cover back holder Washer 6 Frame Bolt M6×16 Pulley washer Bolt M10×55 Handle Hinge pin Bolt M8×25 Large washer M8 BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 16 Nut M10 Emergency switch cover Washer M10 Emergency switch Bolt M10×60 Knob Spring washer M10 Connector Bolt M10×30 Spring washer M6 Bolt M8×25 Bolt Washer M8 Washer M6 Spring washer M8 BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 17 Bolt M8 x 16 Blade Inner hex bolt M10 x 20 Blade bolts Knob M10 Rotor protector Washer M8 Bearing cover Large washer M8 Rotor pulley Circlip M30 Key 10×8×30 Bolt M10×16 BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 18 Name Hopper Washer rubber flap Rubber flap Bolt M6 x 20 Washer M6 Nut M6 Name Output Bolt M6×16 Washer M6 Lock nut M6 Deflector Knob M6 BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
Page 19 Customer Service: 303 Warrigal Road, Cheltenham, VIC 3192, Australia Telephone: 1300 454 585 Email: kmowersorder@gmail.com Website: WWW.BWMACHINERY.COM.AU Spare parts are available from our dealers or our official website. BWM PRO 100 Series Manual Book V1.01 B.W. Machinery...
