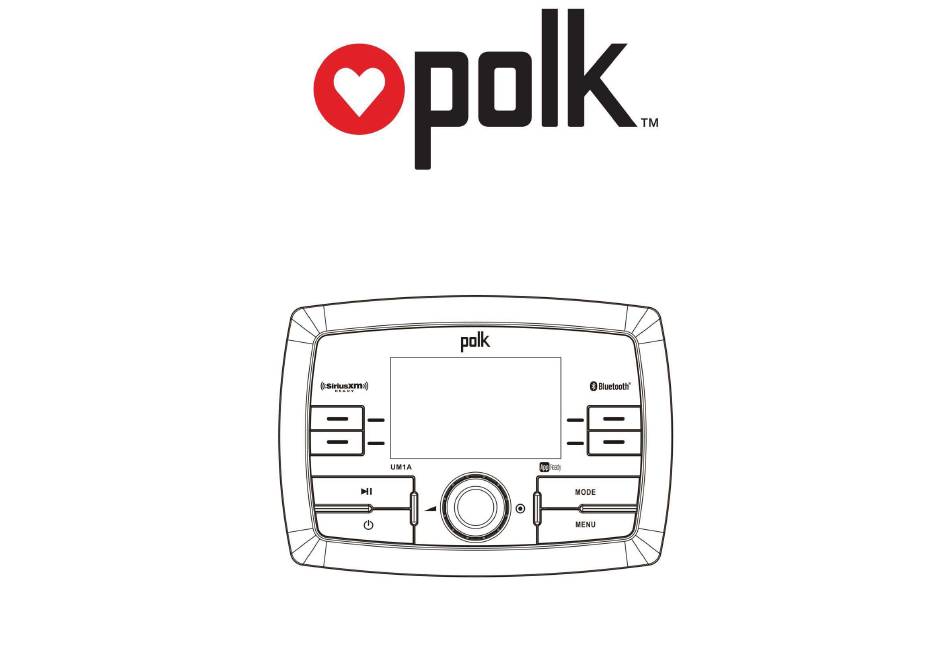

- Page 1 UM1A Installation and Operation Manual...
-
Page 2: Table Of Contents
UM1A CONTENTS Warnings and Compliance ....................1 Copyrights and Trademarks Introduction ......................... 2 Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its Safety Information ....................... 3 subsidiaries. Visit www.siriusxm.com/xmlineup for updates. All programming/channel lineup/ Installation .......................... -
Page 3: Warnings And Compliance
UM1A WARNINGS AND COMPLIANCE WARNING! To reduce the risk of fire of electric shock, do not expose this apparatus to rain or moisture. WARNING! The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus. -
Page 4: Introduction
HARDWARE KIT CONTENTS INTRODUCTION Mounting System Features Screws x 4 Features of the Polk UM1A marine audio system include: Bolt x 2 Full Dot Matrix LCD AM/FM US/EURO Tuner with 30 Presents (12 AM, 18 FM) SiriusXM-Ready™ USB Playback of MP3 and WMA files (USB1 & USB2) Spring Washer x 2 iPod Ready (USB interface USB1 &... -
Page 5: Safety Information
UM1A SAFETY INFORMATION When Boating Keep the volume level low enough to be aware of your surroundings. Protect from Water Do not submerge the product in water, as this can cause electric shorts, fire or other damage. Protect from the Elements Use the included cover to protect the wired commander from sunlight, dust, and water while not in use. -
Page 6: Installation
UM1A Bracket Mount INSTALLATION Before You Begin Always disconnect the negative battery terminal Important Notes Before final installation, test the wiring connections to make sure the unit is connected properly and the system works. Consult with your nearest dealer if installation requires the drilling of holes or other modifications to your vessel. - Page 7 UM1A Route the tuner/amplifier harness and cable throughout the vessel as required. Keep Removing the Unit some slack in the harness/cables so it won't be too tight, as this can cause damage to To remove the commander, remove bracket mount or remove trim ring and mounting screws, the wires.
-
Page 8: Wiring
UM1A WIRING DESCRIPTION DESCRIPTION SPEAKER RR– SWITCHED +12VDC SPEAKER RR+ GROUND SPEAKER FL+ ILL-DIM (RUNNING LIGHTS) SPEAKER FL– REMOTE TRIGGER SPEAKER FR+ SPEAKER RL+ SPEAKER FR– SPEAKER RL– PIN NO. WIRE COLOR DESCRIPTION +12VDC BLUE DATA WHITE LEFT AUDIO OUT... -
Page 9: Basic Operation
UM1A counter-clockwise to decrease. The unit will automatically exit the audio menu after 10 BASIC OPERATION seconds of inactivity. The following menu items can be adjusted. Bass Level Use the Encoder Knob to adjust the Bass level range from “-6” to “+6”. - Page 10 The current frequency and activated functions are shown on the LCD panel (10). NOTE: BT Pair and BT Device menu options are only available while UM1A is in NOTE: LCD panels may take longer to respond when subjected to cold temperatures Bluetooth mode.
-
Page 11: Tuner Operation
UM1A TUNER OPERATION Press the PS soft button to scan stations stored in the current band list. The unit will pause for ten seconds at each preset station. Press PS again to stop scanning when the desired station is reached. - Page 12 UM1A Stereo (ST) The unit will automatically pick up an FM stereo signal, when available. When in stereo mode, the “ST” icon appears in the display. When no stereo signal is available, the unit will automatically revert to mono operation, and no icon will be displayed.
-
Page 13: Weather Band Operation
UM1A WEATHER BAND OPERATION What is the NOAA Weather Radio/Weatheradio Canada? Weatherband Frequencies NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that Frequency (MHz) Preset broadcasts local weather emergency information 24 hours a day via the National Weather Service (NWS) network. -
Page 14: Siriusxm Radio Operation
UM1A ® Channel Entry mode. SiriusXM RADIO OPERATION Rotate the Encoder Knob to select each digit. Press the Encoder Knob button for each digit to enter “000”. Upon entering the last digit, the unit will tune to the SiriusXM ID number for your tuner. - Page 15 UM1A locking channels and the method to access locked channels is described below. Press the PS soft button to scan stations stored in the preset list. The unit will pause for ten Setting the User Passcode seconds at each preset channel. Press the Encoder Knob button or the PS soft button Press and hold the MENU button for more than 3 seconds to enter the system menu.
- Page 16 UM1A With the unit turned off, press and hold the Power Button until the system version information is displayed on the screen. Press the Encoder Knob button to turn the LCD display off. Press the Power Button to turn on the unit.
- Page 17 UM1A Advisory Messages Reported by the SiriusXM Vehicle Tuner On-Screen Display Advisory Message Cause Explanation/Solution Check Antenna Check Antenna The radio has detected a fault with the SiriusXM antenna. The Verify that the antenna cable is connected to the SiriusXM Tuner.
- Page 18 UM1A Advisory Messages Reported by the SiriusXM Vehicle Tuner (Continued) On-Screen Display Advisory Message Cause Explanation/Solution Chan Locked Channel Locked The channel that you have requested is Locked by the radio Parental See the section on Parental Control, page 15 for more information on Control feature.
-
Page 19: Usb Mp3 Operation
UM1A USB MP3 OPERATION Removing a USB Device Press the MODE button (7) to select another mode and then remove the USB device from the USB connector. NOTE: After loading a USB device, files and folders are accessed in the order in which they were written to the device. -
Page 20: Ipod ® Operation
UM1A To enter iPod mode from any other source, press the MODE button (7) and select the USB ® iPOD OPERATION soft key. If the user connects an iPod containing no songs, the radio will display a message stating “No Songs” when it enters iPod mode. -
Page 21: Bluetooth Operation
Before you begin, consult the owner’s manual for the Bluetooth device you want to pair with the UM1A. Make sure the device is on and ready to receive a signal from the UM1A. There are two methods to pair a device; through the user menu or press and hold the Encoder Knob while unit is in BT mode. -
Page 22: App Operation
After downloading and installing Ultramarine app on your apple device, pair your device to the UM1A as stated above for Bluetooth paring. Once your device is paired you can open the app and use as instructed with the Ultramarine app manual found at http://asaelectronics.com/manuals-guides. -
Page 23: Specifications
UM1A SPECIFICATIONS TROUBLESHOOTING FM Radio Frequency Coverage (USA) ........87.5 to 107.9 MHz... - Page 24 www.asaelectronics.com v.240615...
