National Instruments SCXI-1120/D User Manual

National Instruments SCXI-1120/D User Manual

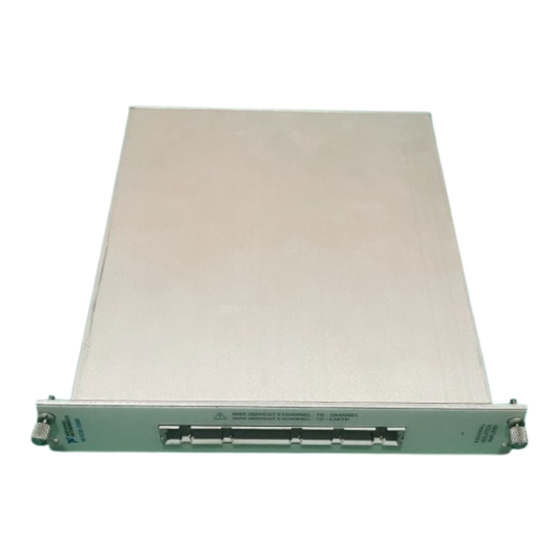

Eight-channel isolated analog input module and eight-channel wide band isolated analog input module for signal conditioning
