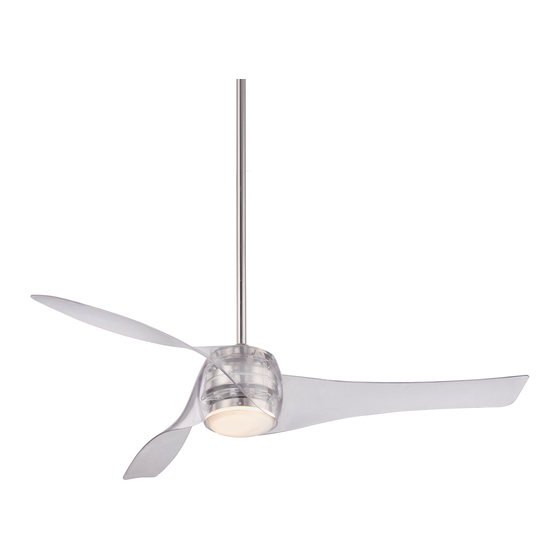

minkaAire ARTEMIS F803DL-TL: ARTEMIS F803DL-DK Instruction Manual Warranty Certificate
Hide thumbs
Also See for ARTEMIS F803DL-TL: ARTEMIS F803DL-DK:
- Instruction manual warranty certificate (29 pages)
Subscribe to Our Youtube Channel
Related Manuals for minkaAire ARTEMIS F803DL-TL: ARTEMIS F803DL-DK
Summary of Contents for minkaAire ARTEMIS F803DL-TL: ARTEMIS F803DL-DK
- Page 1 ARTEMIS U.S. Patents: D535,011; D535,015; D535,387; D535,388; D536,083; 7,481,626 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws. ©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................INSTALLING THE LED LIGHT KIT..............PACKAGE CONTENTS..............INSTALLING THE GLASS SHADE..............INSTALLING THE FAN..............OPERATING THE REMOTE CONTROL/WALL CONTROL....HANGING THE FAN................. ENJOY YOUR SMART CEILING FAN............ELECTRICAL CONNECTIONS............CARE OF YOUR FAN..................FINISHING THE INSTALLATION..........TROUBLESHOOTING..................BLADE INSTALLATION.............. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 13. Remote control with holder and 2 Fan blades (3) mounting screws 2. Hanger bracket 14. 12V MN21/A23 battery 3. Canopy A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) 4. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) JOIST MOUNTING OPTIONS OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread hanger bracket and hanger ball have been provided for your safety and the rod into the coupling, next line up holes and replace lock pin and the proper installation of your new ceiling fan. - Page 11 DOWNROD OUTLET BOX CANOPY DOWNROD CROSS PIN SET SCREWS CANOPY COVER HITCH COUPLING COVER LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig. 7 Fig. 8 LOCK PIN HITCH PIN Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: : To avoid possible electrical shock be sure electricity is turned off at the main fuse or breaker box before wiring. ® FREQUENCY NOTE: The Aire Control System is equipped with a learning frequency function which has 32 code combinations to prevent potential interference from other remote units. The frequency on your Receiver and Transmitter units have been preset at the factory. - Page 13 Step 1. Insert Receiver into Hanger Bracket with the flat side of the Receiver facing the ceiling. (Fig. 12) Step 2. Motor to Receiver Electrical Connections: Be sure to snap together the 2-PIN and 4-PIN connectors, the male plug from the receiver and female plug from the fan.
- Page 14 OUTLET BOX GREEN OR BARE RECEIVER COPPER (GROUND) GREEN (RECEIVER) GREEN HANGER BRACKET (HANGER BRACKET) RECEIVER GREEN (DOWNROD) 2-PIN WIRE 4-PIN WIRE CONNECTORS CONNECTORS Fig. 12 Fig. 13...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION OUTLET BOX Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 16: Blade Installation
BLADE INSTALLATION Align and engage the top holes from one of the blades to the upper blade holder tabs. UPPER BLADE HOLDER TABS Carefully align the bottom holes from the blade to the holes from the lower blade holder. Secure blade with 3 screws and washers provided. Follow the same process for the remaining two blades. -
Page 17: Installing The Mounting Plate
INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 18: Installing The Led Light Kit
INSTALLING THE LED LIGHT KIT NOTE: Before starting installation, make sure power is turned off at the circuit breaker. Step 1. Remove one of the three mounting screws from the mounting plate and loosen the other two screws. (Do not remove.) Step 2. -
Page 19: Installing The Glass Shade
INSTALLING THE GLASS SHADE Step 1. Raise the glass shade or optional switch cup cover up against the LED light kit and secure it to the fan by turning glass shade clockwise untilsnug. DO NOT OVERTIGHTEN. (Fig. 18) NOTE: The switch cup cover included with your fan is an option to replace the glass for the light in the event that you prefer not to use the light feature of your fan. -
Page 20: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. IMPORTANT: THIS REMOTE CONTROL & DC FAN MOTOR ARE DESIGNED TO PERFORM A ONE TIME SELF CALIBRATION TEST. THIS TEST IMPORTANT: THIS REMOTE CONTROL &... - Page 21 Note: The auto learning function will only shut off when the self calibration test has power after 30 seconds if interruption occurs. finished. The total self calibration test will last mandate within 60 seconds when turning the Please remove obstacles before re-set. about 6 minutes.
- Page 22 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: to change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 19.
-
Page 23: Enjoy Your Smart Ceiling Fan
ENJOY YOUR SMART CEILING FAN NOTE: Before moving on to learning about your new smart ceiling fan, please be sure to test all your fans functionalities using your remote control first. To enjoy all the potential of your new ceiling fan. You’ll need to dowload the BOND HOME app. Available on the Google and Apple Play Store. -
Page 24: Care Of Your Fan
CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from the Here are some suggestions to help maintain your fan. blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 25: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 26 SYMPTOM SYMPTOM Fan Wobble Fans/Light Turn On and Off Unexpectedly SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. This is caused by interference, Please see "Frequency interference" for steps to change the frequency. Make sure outlet box is secured to building structure, if necessary use the wood screws provided to further secure outlet box to joist.
- Page 27 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 28: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the light(s). 0.072 3.41 10.77 8.29 3.96' 58" High 0.59 42.75... - Page 29 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 2295 3.41 High 7157 42.75 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: Yearly Energy Cost 4,878 •...
