IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your machine. Failure to comply with these instructions may result in personal injury.
Page 4
Service • Use proper containers when draining the oil. Do not use food or beverage containers that may mislead someone into drinking from them. Properly dispose of the containers, or store in a safe place immediately following the draining of the oil. •...

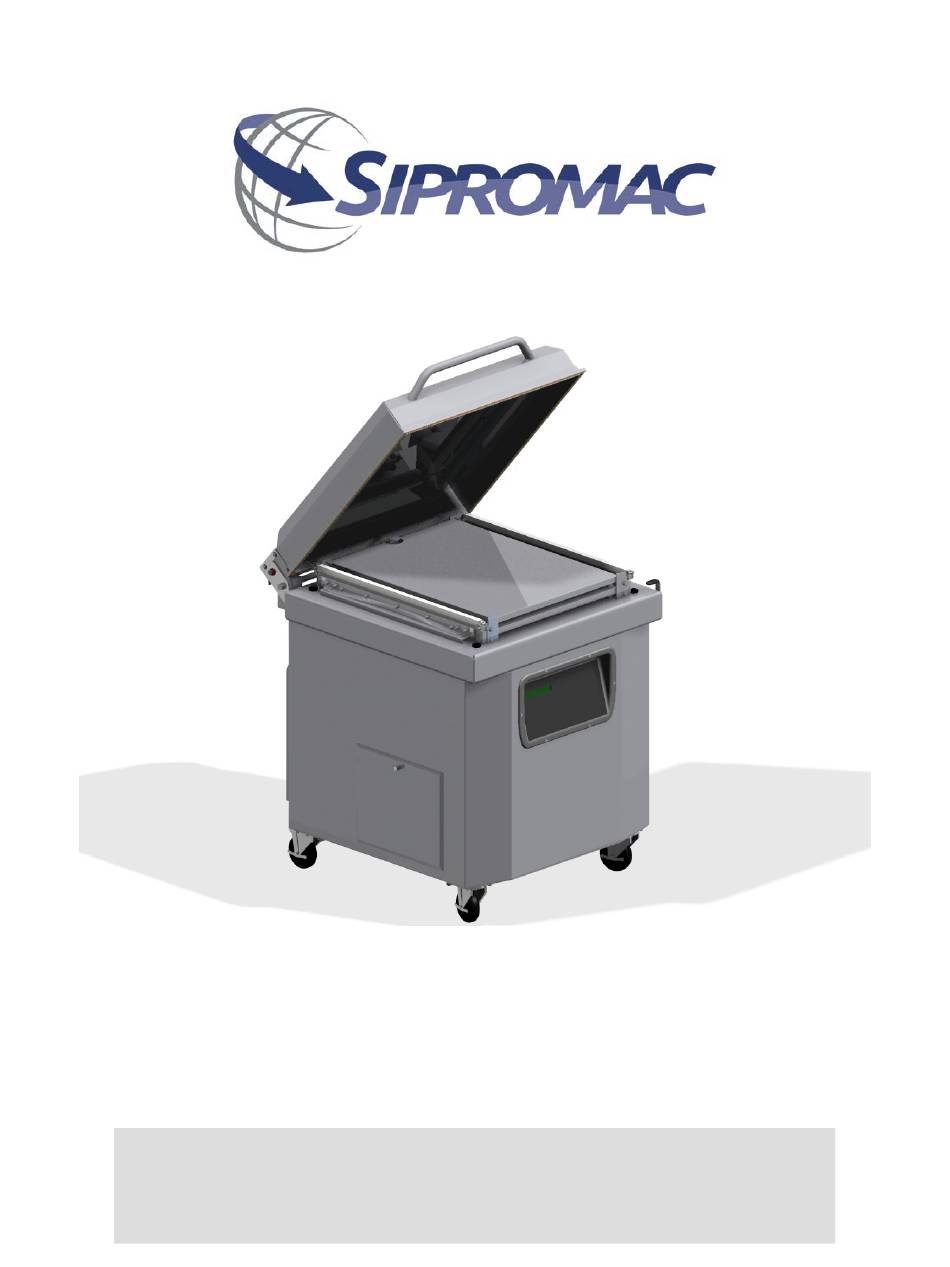

VACUUM PACKAGING MACHINES-OPERATION INSTRUCTIONS TABLE OF CONTENTS 1. Setting up the machine 2. Electrical connection 3. Operation 3.1 Working principles 3.2 Special packaging 3.2.1 Gas flushing 3.2.2 Electrical bag cut (optional) 3.3 Vacuum packaging operation 3.3.1 Basics 3.3.2 Functions menu 3.3.2.1 Create a program 3.3.2.2 Delete a program 3.3.2.3 Select operating mode...
SIPROMAC INC. VACUUM PACKAGING MACHINES 1. SETTING UP THE MACHINE: Before choosing the site for the machine, please consider that you will also need room for packaged and non-packaged products apart from the space needed for the machine itself. Keep in mind that the machine must not be set up upon uneven ground. Especially with mobile models, the weight of the pump might then cause warping of the machine.
Finally, a mechanism pushes the sealing bar to the rubber support to seal the bag. To obtain nice packages, the products and the bags have to be of proportional sizes. The bag's opening should never exceed 50 cm(2") past the seal bars. The product should be centered in height in relation to the seal bar by adjusting the spacers provided.
The necessary gas tank and pressure valve mounted on tank is not supplied, The pressure of the gas regulator should be set at approximately 1/3 kg/sq. cm ( 5 lbs/sq.inch.). Each machine has an adaptor for gas connection when gas flush option is ordered.
3.3.2.2 Delete a program: When executing the "delete a program" function, the programs menu is acceded and the number of the first program in memory is blinking to point out the deletion mode. Use key "SELECT" to select a program and key "ENTER" to accede and confirm deletion of the selection.
Examples: 1s keys 0, 1 or 1, ENTER 15s keys 1, 5 3.3.3.3 Vacuum level setting (sensor enabled) For a selected program set the vacuum level, starting with the values; the decimal point is automatically inserted following the second digit entry and the validation is automatically performed following the third digit entry (the new vacuum level is blinking).
automatically inserted following the first digit entry and the validation is automatically performed following the third digit entry (the new sealing time is blinking). The sealing time is truncated to the nearest half hundredth. In a middle of an acquisition, use key "ENTER"...
WARNING: All electrical work described in this brochure should be done by a QUALIFIED and AUTHORIZED technician. 3.4 Daily cleaning: For hygenic cleanliness, it is imperative to clean chamber and spacers daily. Also clean the lid rubber to assure tight seat of the lid. Cleaning instructions for gas injection nozzles: Periodically on a regular basis the gas injection nozzles must be removed with the connection tube and soaked in a food grade soap and water solution, then dried and re-installed.
4.2 Insufficient vacuum: 4.2.1 Leakage in the bag: Most frequently, insufficient vacuum in bags is due to leakage in bag and not due to any fault of the machine. Pin-hole leak for which there is no obvious explanation is due to faulty bag material. Pin-hole leak caused by sharp edge of the product (bone, etc.).Use bone-guard or thicker film.
4.5 MC40 Control board failure NOTE:Refer to menu structure on page 13. This board software is allowing access to a "Diagnostics Menu". Only qualified service technicians are authorized to access this menu by entering a security password. By acceding either the "D1 input test" feature or the "D2 output test" feature,a trained technician will be able to quickly know the origin of the problem: pump, sealing system, pneumatic problem, security switches problem, etc...
Page 35
SEAL WITH SILICONE SCELLER AVEC DU SILICONE DETAIL A CAN BE INVERTED IF NEEDED PEUT ÊTRE INVERSÉ AU BESOIN DETAIL B MACHINE DEPT. TOL. METRIC INCH 560A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 36
DETAIL A NOTE: - 026-3161 - DISCONNECT SWITCH SHAFT: COUPER À 94 MM DE LONG. MACHINE DEPT. TOL. METRIC INCH VACUUM SINGLE CHAMBER SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
Page 37
026-3160 HANDLE RED/YELLOW NEMA 4X, COMPACT, PADLOCKABLE 127-0100 STICKER ELEC.HAZARD ISO 2-1/2'' TRIANGLE 5 CENTER WITH HANDLE 16.4 MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM...
Page 42
THIS SIDE OF SEAL BAR TO FIT FLUSH W/SUPPORT 620A 600A -TWIN SEAL OPTION- 550A MACHINE MACHINE DEPT. TOL. METRIC INCH SIPROMAC 550A, 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
Page 43
4 INSTALL AGAINST NOTCH OF ITEM #9 620A -TWIN SEAL OPTION- 600A 550A MACHINE MACHINE DEPT. TOL. METRIC INCH SIPROMAC 550A, 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" 550A ADDED, WAS 005A0152 14-10-23 SBU SOUDAGE ±...
Page 48
2 UTILISER PERMATEX RUBBER ADHESIVE 169-0010 POUR COLLER POSITION JOINT HERE POSITIONNER LE JOINT ICI FOR TOP & BOTTOM SEALING ONLY POUR SCELLAGE "TOP & BOTTOM" SEULEMENT MACHINE DEPT. TOL. METRIC INCH 560A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 49
FOR TOP & BOTTOM SEALING ONLY POUR SCELLAGE "TOP & BOTTOM" SEULEMENT POSITION JOINT HERE POSITIONNER LE JOINT ICI -12" COVER OPTION- MACHINE DEPT. TOL. METRIC INCH 560A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 50
SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA RA-0100 PUMP ASSEMBLY N.T.S. DEPT. QTY. ITEM 560A ADDED, MUFFLER NOW STANDARD 15-02-12 SBU 3D DWG BY DATE MAT. 14-07-01 010B0063 DATE LET. MODIFICATION DATE INT. 2D DWG BY...
Page 51
SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA RA-0063 PUMP ASSEMBLY N.T.S. DEPT. QTY. ITEM 560A ADDED, MUFFLER NOW STANDARD 15-02-12 SBU 3D DWG BY DATE MAT. 14-07-01 010B0062 DATE LET. MODIFICATION DATE INT. 2D DWG BY...
Page 52
SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA KB-0020 PUMP ASSEMBLY N.T.S. DEPT. QTY. ITEM 560A ADDED, MUFFLER NOW STANDARD 15-02-12 SBU 3D DWG BY DATE MAT. 14-07-03 005B1440 DATE LET. MODIFICATION DATE INT. 2D DWG BY...
