AudioCodes MediaPack MP-262 Quick Manual

AudioCodes MediaPack
MP-262
Welcome
Thank you for purchasing AudioCodes MediaPack
Multimedia Home Gateway!
This Quick Guide describes the installation for AudioCodes
MediaPack 262 model (MP-262).
2. Cabling

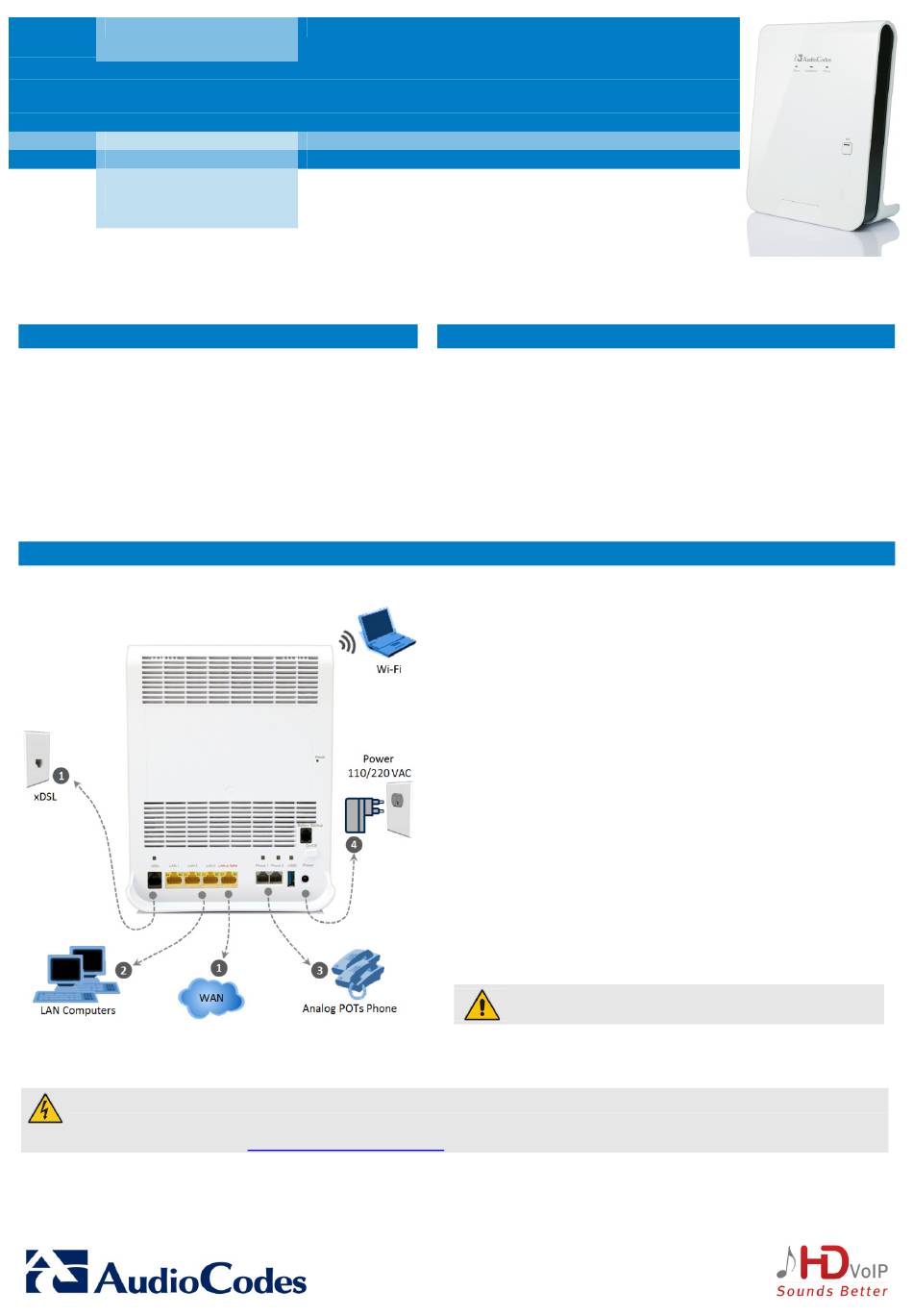

The basic cabling of your gateway is illustrated below:
Use only the supplied 12VDC +/-10%, tolerance, 2A, limited power source wall mount Class II power supply adapter.
Before connecting the gateway to power, ensure that the VAC ratings match, and that you have read the Compliance and
Regulatory Information at www.audiocodes.com/library.
™
Multimedia Home Gateway
Quick Guide
1. Before Installing
Make sure that the shipped package contains the following items:
MediaPack Multimedia Home Gateway

1 x RJ-45 Ethernet cable

1 x RJ-11 cable for telephone or xDSL

12V AC/DC power adaptor (use only supplied)

If any item is missing, please contact your sales representative.
1. Connect the gateway to the Internet using one of the following
connectivity methods:
WAN Ethernet: Connect the WAN Ethernet port, labeled

LAN 4/WAN to an external modem, using a CAT 5 Ethernet
cable.
xDSL: Connect the xDSL port, labeled xDSL to the telephone

socket, using an RJ-11 telephone cable.
Connect the Ethernet ports, labeled LAN 1-4 to your LAN
2.
computers, using CAT 5 Ethernet cables.
Connect the telephone ports, labeled Phone 1-2 to analog
3.
telephones, using RJ-11 telephone cables.
Connect the gateway to a standard 110/220 VAC electrical wall
4.
outlet, using the supplied AC/DC power adapter.
When powered on, the gateway's Status LED turns on. When
5.
initialization completes (~ 2 min.), the LED changes from red to
green. If the gateway is off, press the Power button located on
the rear panel to switch it on.
For wall mounting the gateway, refer to the User's
Manual.
