AudioCodes MediaPack
MP-272
Welcome
Thank you for purchasing AudioCodes MediaPack
Multimedia Home Gateway!
This Quick Guide describes installation for AudioCodes
MediaPack 272 model (MP-272).
2. Cabling
The basic cabling of your gateway is illustrated below:
Use only the supplied 12VDC +/-10%, tolerance, 2A, limited power source wall mount Class II power supply adapter.
Before connecting the gateway to power, ensure that the VAC ratings match, and that you have read the Compliance and
Regulatory Information at www.audiocodes.com/library.
™
Multimedia Home Gateway
Quick Guide
1. Before Installing
Ensure that the shipped package contains the following items:
MediaPack Multimedia Home Gateway
1 x RJ-45 Ethernet cable
12V AC/DC power adaptor (use only supplied)
If any item is missing, please contact your sales representative.
Connect the gateway to the Internet by connecting the WAN
1.
Ethernet port, labeled WAN to an external modem, using a CAT
5 Ethernet cable.
Connect the Ethernet ports, labeled LAN 1-4 to your LAN
2.
computers, using CAT 5 Ethernet cables.
Connect the telephone ports, labeled Phone 1-2 to analog
3.
telephones, using RJ-11 telephone cables.
Connect the gateway to a standard 110/220 VAC electrical wall
4.
outlet, using the supplied AC/DC power adapter.
When powered on, the gateway's Status LED turns on. When
5.
initialization completes (~ 2 min.), the LED changes from red to
green. If the gateway is off, press the Power button located on
the rear panel to switch it on.
For wall mounting the gateway, refer to the User's
Manual.
Advertisement
Related Manuals for AudioCodes MediaPack MP-272
Summary of Contents for AudioCodes MediaPack MP-272

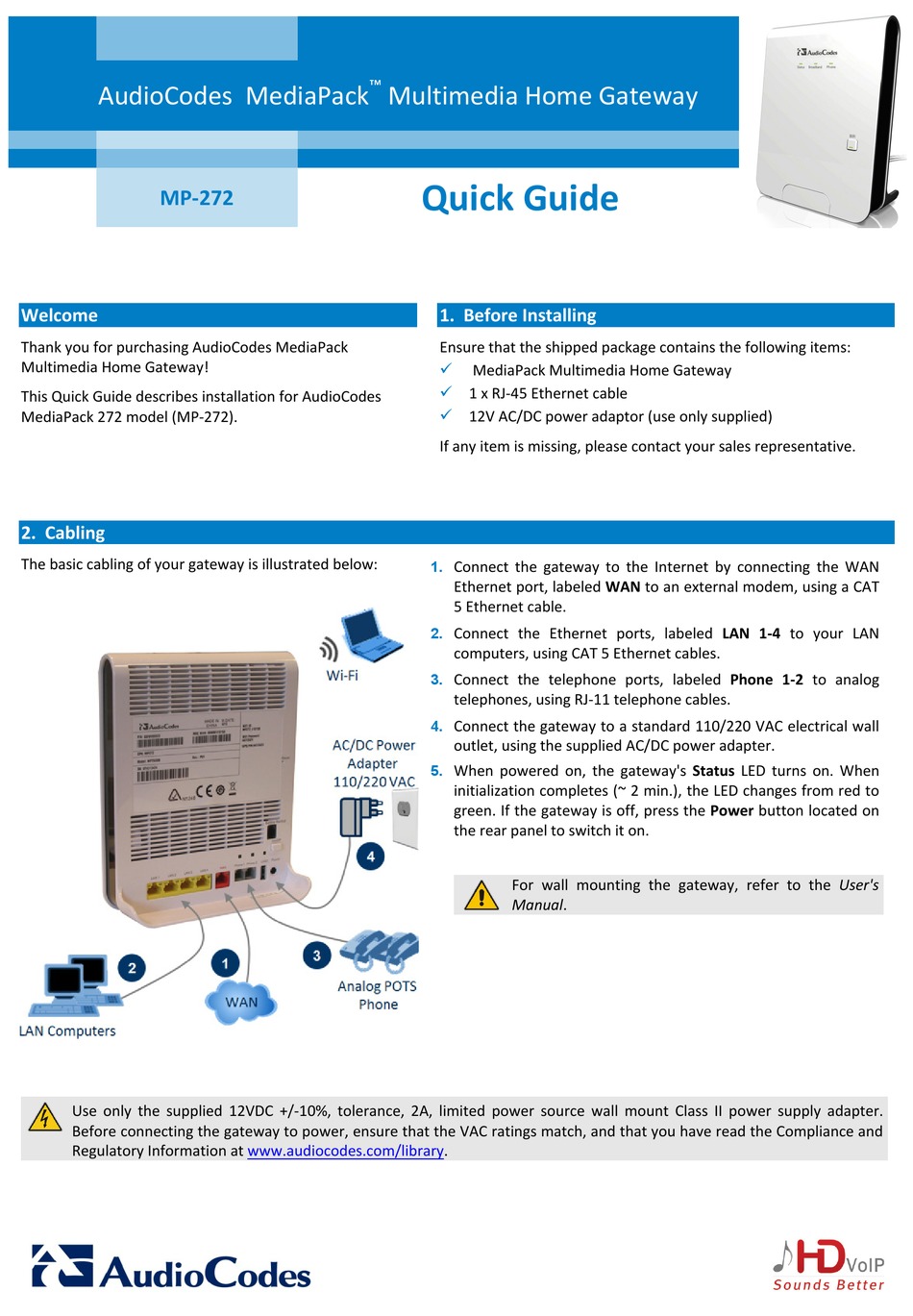

- Page 1 MediaPack Multimedia Home Gateway 1 x RJ-45 Ethernet cable This Quick Guide describes installation for AudioCodes MediaPack 272 model (MP-272). 12V AC/DC power adaptor (use only supplied) If any item is missing, please contact your sales representative.
