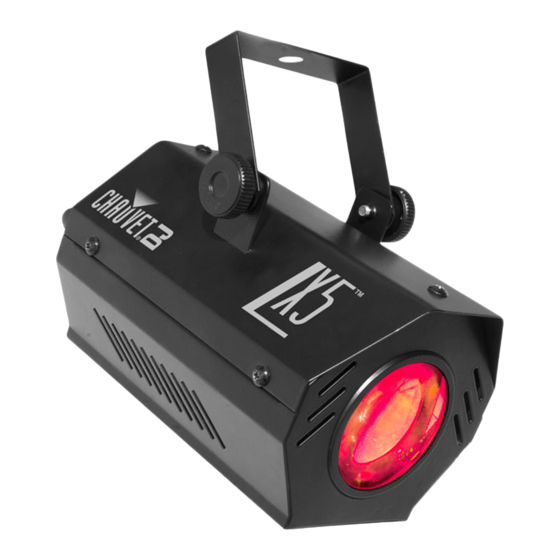

Chauvet led moonflower effect light user manual
Hide thumbs Also See for LX5:

Advertisement

Snapshot
LX5™
OK on Dimmer
Outdoor OK
Sound Activated
DMX512
Master/Slave
115V/230V Switch
Replaceable Fuse
User Serviceable
Duty Cycle

USER MANUAL

th
Chauvet, 3000 N 29
Ct, Hollywood, FL 33020 U.S.A.
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com

Advertisement

Table of Contents
loading

Summary of Contents for Chauvet LX5

  • Page 1: User Manual

    Snapshot LX5™ OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. BEFORE YOU BEGIN... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 ONTACT ... 4 AFETY NSTRUCTIONS 2. INTRODUCTION ... 5 ... 5 EATURES ... 5 RODUCT VERVIEW 3.
  • Page 3: Before You Begin

    1. B EFORE What is included 1 x LX5™ Power Cord Warranty Card User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 4: Safety Instructions

    Do not daisy chain power to more than 50 units. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. 9/17/2007 12:27 PM...
  • Page 5: Introduction

    2. I NTRODUCTION Features LED moonflower effect Selectable functions: sound, rotating, static Additional power output for daisy chaining units (max 50 units) Sound sensitivity knob Ultra bright LEDs Low power consumption Product Overview Connection Panel (rear) Mounting Bracket Lens Mode Selector Switch IEC Power...
  • Page 6: Setup

    3. S ETUP Disconnect the power cord before replacing a fuse and always replace with the same type fuse. Fuse Replacement With a flat head screwdriver wedge the fuse holder out of its housing. Remove the damaged fuse from its holder and replace with exact same type fuse.
  • Page 7: Operating Instructions

    PERATING The LX5 can operate in Sound-Active or Auto mode, which is determined by the position of the switch located on the rear of the unit. The mode of the unit refers to the reaction of the LEDs only as there are no moving parts in the unit.
  • Page 8: General Troubleshooting

    *Note not all values apply to all fixtures If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location below. Technical Support Address: Service Dept.
  • Page 9: General Maintenance

    Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 10: Technical Specifications

    Power Output... 50 units max at 110V, 100 units max at 230V LIGHT SOURCE LED... 57 (17 Red, 24 Green, 16 Blue) 100,000 hrs PHOTO OPTIC Beam Angle ... 42.7° THERMAL Maximum ambient temperature...104°F (40°C) ORDERING INFORMATION LX5 ... LX5 WARRANTY INFORMATION Warranty ... 1-year limited warranty 9/17/2007 12:27 PM...
