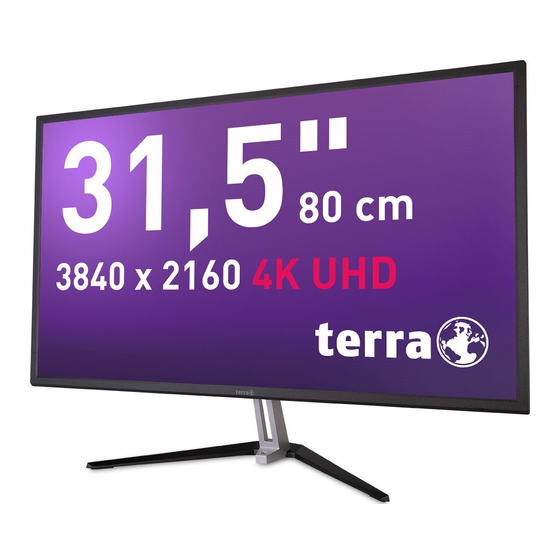

Wortmann 3030058 User Manual

Lcd/led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LCD/LED 3290W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3030058 and is the answer not in the manual?

Questions and answers

Related Manuals for Wortmann 3030058

Summary of Contents for Wortmann 3030058

  • Page 1 LCD/LED 3290W...
  • Page 2 Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. This monitor has been tested and found compliant with the CE mark. These limits are designed to provide proper protection against harmful interference to a residential installation.

  • Page 3: Table Of Contents

    Content Safety Precautions ....................... 1 First Setup ........................... 2 Quick Installation ......................... 3 Installing the LCD Monitor ....................4 Front View of the Product ....................5 Rear View of the Product ..................... 6 Using On Screen Display (OSD) Functions ................. 7 Supporting Timing Modes ....................

  • Page 4: Safety Precautions

     Pay attention to all cables connected to the monitor against stumble hazards. According to WEEE regulation, this monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information from our website to handle it. www.wortmann.de...

  • Page 5: First Setup

    First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories: AC Power cord ● DisplayPort cable (20 pin)  Warranty card ● Quick start guide ...

  • Page 6: Quick Installation

    Quick Installation 1. Connect Video cable (DisplayPort cable) Make sure both monitor and computer are powered OFF. Connect the DisplayPort cable from DisplayPort output of computer to the DisplayPort input of the monitor. Or connect HDMI cable *Optional Connect the HDMI cable from HDMI output of computer to the HDMI input of the monitor.

  • Page 7: Installing The Lcd Monitor

    Installing the LCD Monitor Installing the Stand Base 1. Place the monitor face down on a soft cloth or cushion on a table. 2. Install the stand base to the stand, then tighten the screw that fixes the stand base to the stand.

  • Page 8: Front View Of The Product

    Front View of the Product ❶ ❷ Power ON/ OFF (Press the button) ◄ OSD Menu On/ Off ► Confirm Select ❶ ▲ Scroll Up/ Increase ▼ Scroll Down/ Decrease LED Indicator ❷...

  • Page 9: Rear View Of The Product

    Rear View of the Product ❶ ❷ ❸ ❹ ❺ Power input ❶ HDMI1 input (HDMI 19 pin) ❷ HDMI2 input (HDMI 19 pin) ❸ DisplayPort input (DisplayPort 20 pin) ❹ Earphone output Note: Adjustment of the volume control to other settings than the ❺...

  • Page 10: Using On Screen Display (Osd) Functions

    Using On Screen Display (OSD) Functions Power ON/OFF (Press the button) When in OSD menu, press more than 3 seconds to switch display power off Display main menu ◄ Exit from OSD menu Manual adjust mode select for HDMI1, HDMI2, DisplayPort mode ►...
  • Page 11 Input Select: When Input Select is pressed, change Input signal to HDMI1, HDMI2 or DisplayPort. Picture: To manually adjust the Video Mode Adjustment, Brightness, Contrast, Sharpness, Over Drive, DCR, ECO and HDR of screen image. Video Mode Adjustment: To select the video mode from Full Screen or 4:3. ...
  • Page 12 Audio: To adjust the audio functions. Volume: To adjust the volume of speaker and headphone output.  Audio Input: To select where the audio source comes from HDMI1, HDMI2 or  DisplayPort. Color: To select the color for improving brightness and color saturation between Warm, Normal, Cool, User Color, Picture Mode and Anti blue light.
  • Page 13 Setup Menu: To set up Resolution Notification, DisplayPort, Memory Recall and Information. Resolution Notification: When PC resolution not on 3840x2160 will send a  message remind. Press ► key to adjust the Resolution Notification On or Off. DisplayPort: Allows the user to turn the DisplayPort 1.1 or 1.2. ...

  • Page 14: Supporting Timing Modes

    Supporting Timing Modes 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA...

  • Page 15: Technical Information

    Technical Information Technical Specification LCD Panel 80 cm (31.5”) VESA DPMS compatible Power Management Off Mode, < 0.5 W UHD 3840 x 2160 max. Displayable Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.181 x 0.181 mm LCD Display Color 1.07B Active Display Area 698.40 mm x 392.85 mm Operating: 0°C ~ + 40°C...

  • Page 16: Care And Maintenance

    Care and Maintenance Care  Place your monitor away from the sun to reduce glare.  Put your monitor in a well ventilated area.  Do not place any heavy things on top of your monitor.  Make certain your monitor is installed in a clean and moisture-free area. ...
  • Page 17 Pour plus d'information sur le recyclage, veuillez contacter votre centre de recyclage agréé. Votre attitude quand au recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité pour les générations futures. Wortmann AG Bredenhop 20 D-32609 Hüllhorst Tel.
  • Page 18 License and to the absence of any warranty; and give any other recipients of the Program a copy of this WORTMANN AG License along with the Program.
  • Page 19 with a work based on the Program) on a volume of a storage or distribution medium does not 10. If you wish to incorporate parts of the Program into other free programs whose distribution bring the other work under the scope of this License. conditions are different, write to the author to ask for permission.
  • Page 20 www.wortmann.de...

This manual is also suitable for:

Terra 3290w
