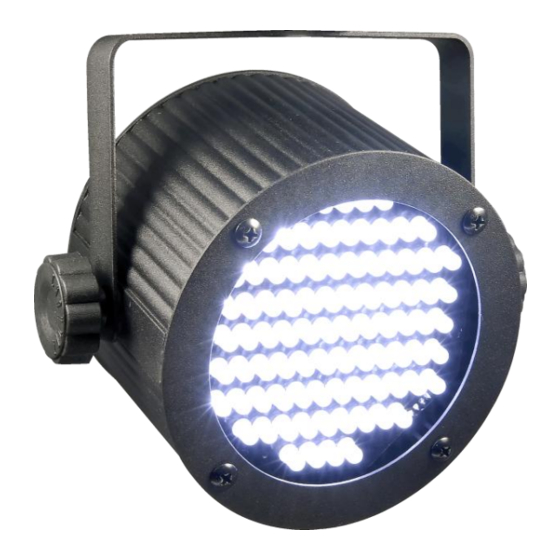

Quick Links

Snapshot
Use on Dimmer
Outdoor Use
Sound Activated
DMX
Master/Slave
Auto-ranging
Power Supply
Replaceable Fuse
User Serviceable
Duty Cycle

User Manual

th
3000 N 29
Ct, Hollywood, FL 33020 U.S.A.
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 86 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chauvet 86

  • Page 1: User Manual

    Snapshot Use on Dimmer Outdoor Use Sound Activated Master/Slave Auto-ranging Power Supply Replaceable Fuse User Serviceable Duty Cycle User Manual 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
  • Page 2: Table Of Contents

    ECHNICAL PECIFICATIONS CHAUVET®, 2009, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. ) ... 8...
  • Page 3: Before You Begin

    Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. ONVENTION [10] <Menu>...
  • Page 4: Safety Instructions

    Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
  • Page 5: Introduction

    2. I NTRODUCTION Features 2-channel DMX-512 white narrow beam LED wash Blackout/static/dimmer/strobe/pulse Static color, strobing and pulse effects with or without DMX controller A d d i t i o n a l F e a t u r e s Additional power output: max 37 units Built-in automated programs via master/slave Built-in sound activated programs via master/slave...
  • Page 6: Setup

    3. S ETUP AC Power This fixture runs on 100~240 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch.
  • Page 7: Mounting

    Mounting Orientation The DIAMONDsplash™ 86 may be mounted in any safe position, provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp.
  • Page 8: Operating Instructions

    In addition, you should note the starting address selected for future reference. The DIAMONDsplash™ 86 fixture uses two DMX channels. If this is your first time using DMX, we recommend reading the “DMX Primer” section in the “Appendix”.
  • Page 9: Sound-Active

    Sound-Active This fixture has a sound-triggered mode. This is accessed via the DIP switches on the back of the fixture, and the sensitivity may be adjusted using the audio sensitivity adjustment knob. Please see the chart below for further explanation. Mode Sound Strobe...
  • Page 10: Appendix

    5. A PPENDIX DMX Primer There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller. There are many different types of DMX controllable fixtures and they all may vary in the total number of channels required.
  • Page 11: Data Cabling

    Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
  • Page 12: 3-Pin To 5-Pin Conversion Chart

    3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5- pin to 3-pin adapter. The chart below details a proper cable conversion: Conductor Ground/Shield Data ( - ) signal Data ( + ) signal Not used Not used...
  • Page 13: Setting The Starting Address

    Long cable / Low level signal Loss of signal Too many fixtures Interference from AC wires If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support. Contact Us W o r l d W i d e...
  • Page 14: Returns Procedure

    Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 15: Technical Specifications

    Power Consumption @ 230 VAC, 50 Hz ...14 W (0.1 A) max, 0.2 A inrush Power output ... 37 units max Fuse ... F 2 A, 250 V LIGHT SOURCE LED ... 86 x 5 mm (white) 100,000 hrs PHOTO OPTIC Luminance @ 1 m ... 1,430 lux Beam Angle ... 20°...
