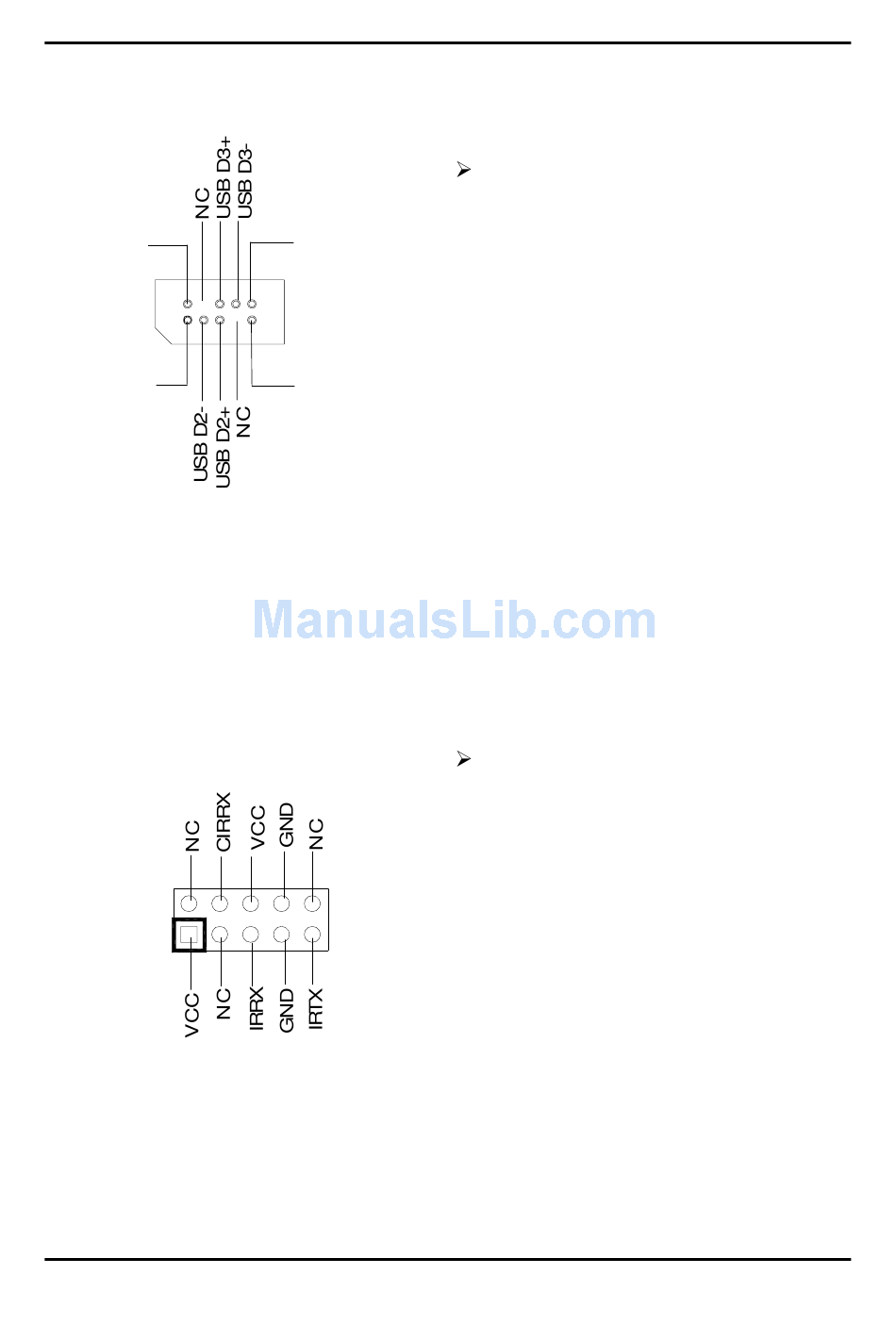

M) CN10 (Front USB Connector)
GND
1
Power
K) JP15 (IR/CIR)
1
Power
GND
2 3
Hardware Installation Process
Be careful with the polarity of the front
panel USB connector. Check the pin
assignment while you connect the front
panel USB cable. Please contact your
nearest dealer for optional front panel
USB cable.
Make sure the pin 1 on the IR device is
aling with pin one the connector. To
enable the IR/CIR function on the board,
you are required to purchase an option IR/
CIR module. For detail information please
contact your autherized Giga-Byte
distributor.
To use IR function only, please connect IR
module to Pin1 to Pin5.
