Step1-1:CPU Installation

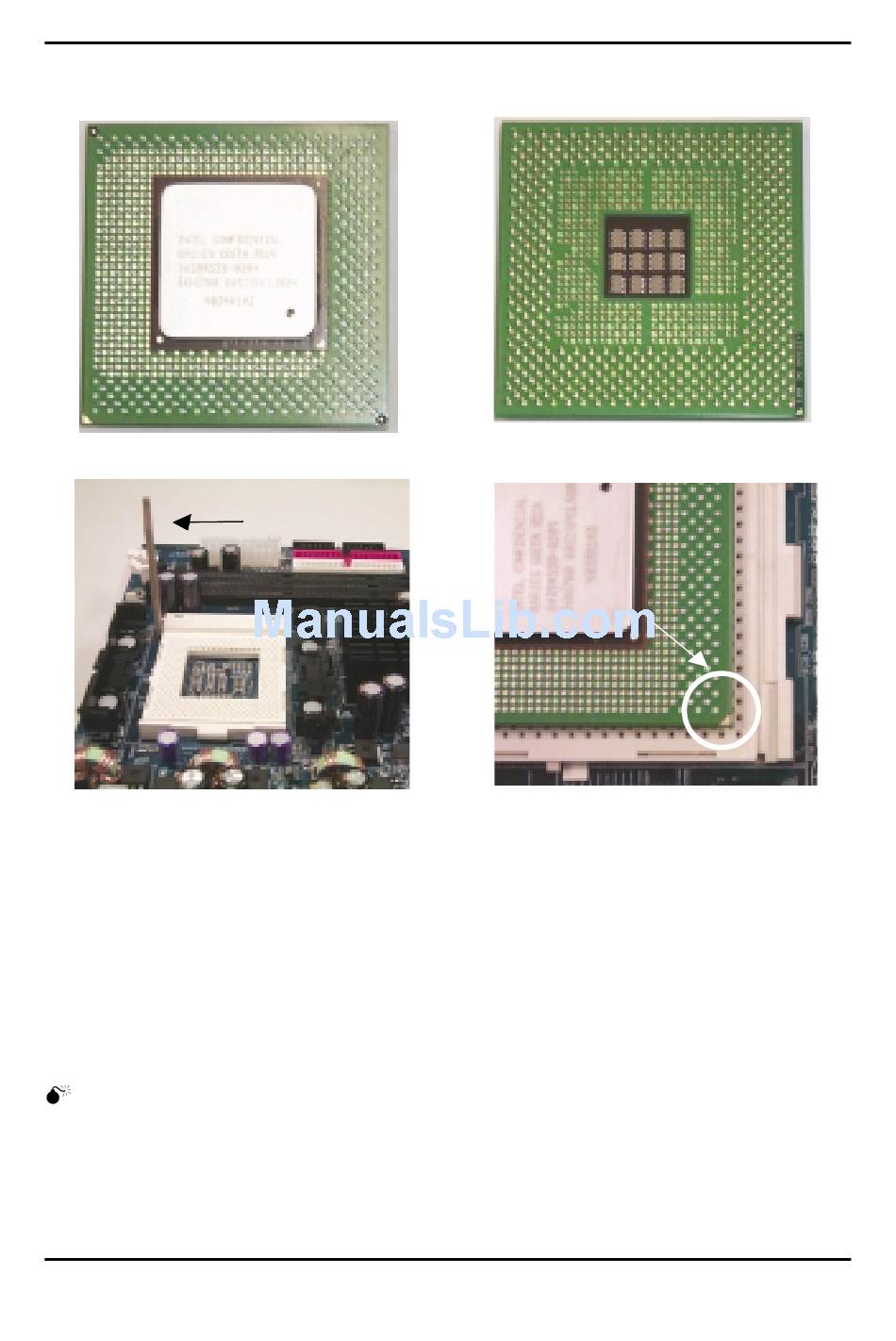

CPU Top View
Socket Actuation Lever
1. Pull up the CPU socket level
and up to 90-degree angle.
3. Press down the CPU socket
lever and finish CPU installation.
Please make sure the CPU type is supported by the motherboard.
CPU Bottom View
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
1 1
Hardware Installation Process
