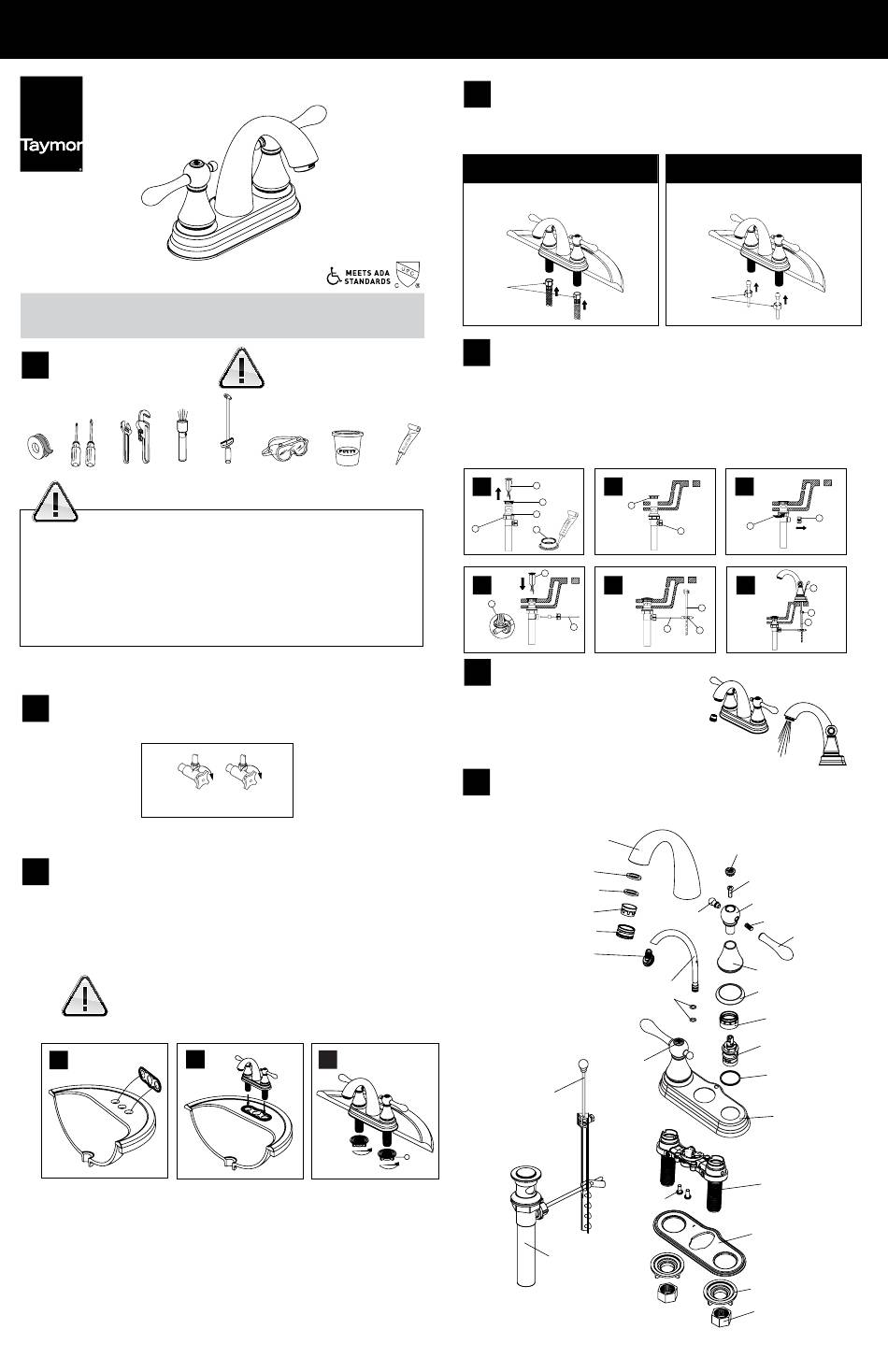

Taymor BELCARRA 06-4630PSN Installation Instructions

INSTALLATION INSTRUCTIONS
BELCARRA 06-4630PSN
TWO HANDLE LAVATORY FAUCET
THIS FAUCET MEETS OR EXCEEDS THE FOLLOWING STANDARDS:
cUPC, ASME A112.18.1, NSF-61 AND LOW LEAD COMPLIANT
THANK YOU FOR PURCHASING THIS TAYMOR PRODUCT. ALL TAYMOR PRODUCTS ARE CAREFULLY
ENGINEERED AND FACTORY TESTED TO PROVIDE LONG TROUBLE-FREE USE UNDER NORMAL CONDITIONS.
HAVE BASIC TOOLS READY
1
RECOMMENDED TOOLS:
Teflon tape Screwdrivers Adjustable Flashlight
wrench and
pipe wrench
WARNING: READ ALL the instructions completely before beginning.
READ ALL warnings, care and maintenance information.
Taymor recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and provincial plumbing and building codes.
Need Help? Please call our toll-free Customer Support line at
(WEST) 1-800-267-4774 (EAST ) 1-800-387-7064 for additional assistance or service.
TURN OFF THE MAIN WATER SUPPLY
2
Locate water supply inlets and shut off water supply valves. These are usually found under
the sink.
TURN OFF
3 FAUCET INSTALLATION
1a) Apply a bead of plumber's putty or silicone caulk around the sink openings. Install the gasket over the three
holes in your sink.
1b) Install faucet hoses through the hole of the sink. Centre the faucet body. Make sure that handle is properly
aligned to sink.
1c) From underneath the sink secure faucet to sink with mounting nuts (1) provided.
Don't use plumber's putty on cultured marble or other composite sinks.
Putty will discolour the sink.
1a
Your installation may require new supply
lines. (Supply lines are not included.)
Safety goggles
Torque wrench Plumber's putty
TURN OFF
1b 1c
ATTACH THE HOT AND COLD SUPPLY LINES
4
Apply teflon tape onto threaded ends of faucet inlets.
Connect water supply lines to faucet inlets. Hot water supply lines go into left inlet. Cold water supply
lines go into right inlet. (Supply lines and fittings are not included)
FOR BRAIDED PLASTIC AND BRAIDED
STAINLESS STEEL SUPPLY TUBES
THESE SUPPLY TUBES HAVE INTEGRAL NUTS, SO JUST
SCREW THE NUT ONTO THE FAUCET INLET.
TORQUE
22 – 30 FT/LBS.
INSTALLING POP-UP DRAIN
5
A) Remove pop-up plunger (A) and flange (B). Screw locknut (C) all the way down. Push gasket (D)
down. Apply silicone to underside of flange (B).
B) Insert body into sink (from underneath). Screw flange onto body. Pivot hole (E) must face the back
of the sink.
C) Tighten locknut (C) and gasket but do not overtighten. Remove pivot ball retaining nut (E).
D) Slide pivot rod (F) into the eye of the pop-up plunger (A). Hand tighten retaining nut.
E) Slide pivot rod (F) through hole in spring clip (G), then through lever strap (H) and back through
spring clip.
F) Insert lift rod (I) down through faucet body and then into lever strap (H). Tighten screw (J). Connect
assembly to drain.
Silicone caulk
A
A
B
D
C
B
A
D
A
FLUSHING & AERATOR CLEANING
6
Remove the aerator by turning it counterclockwise.
Remove the internal parts of the aerator by pushing them
out with your fingers. Remove any debris. Turn on hot and
cold water supplies. Turn faucet handle all the way on and
run water through the spout for about a minute to remove debris.
While water is running check all connections for leaks. Reassemble the
aerator and screw it back into the spout, hand tighten.
EXPLODED DIAGRAM FOR REFERENCE
7
MAINTENANCE Your new faucet is designed for years of trouble-free performance. Keep it looking
new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, steel wool and harsh
chemicals as these will dull the finish and void your warranty.
19 - WASHER
21 - AERATOR
22 - AERATOR SHELL
23 - CONNECTOR
27 - LIFT ROD & KNOB
1
28 - POP-UP ASSEMBLY
CUSTOMER SERVICE WEST 1-800-267-4774 | EAST 1-800-387-7064 | taymor.com
FOR 3/8" O.D. BALL-NOSE SUPPLY TUBES
IF THE SUPPLY TUBE END HAS A BULBOUS SHAPE, USE
TORQUE
22 – 30 FT/LBS.
B
B
E
E
H
F
F
G
18 - SPOUT
20 - WASHER
4 - CAP
24 - PIPE
25 - O-RING
26 - INDEX "H"
14 - SCREW
