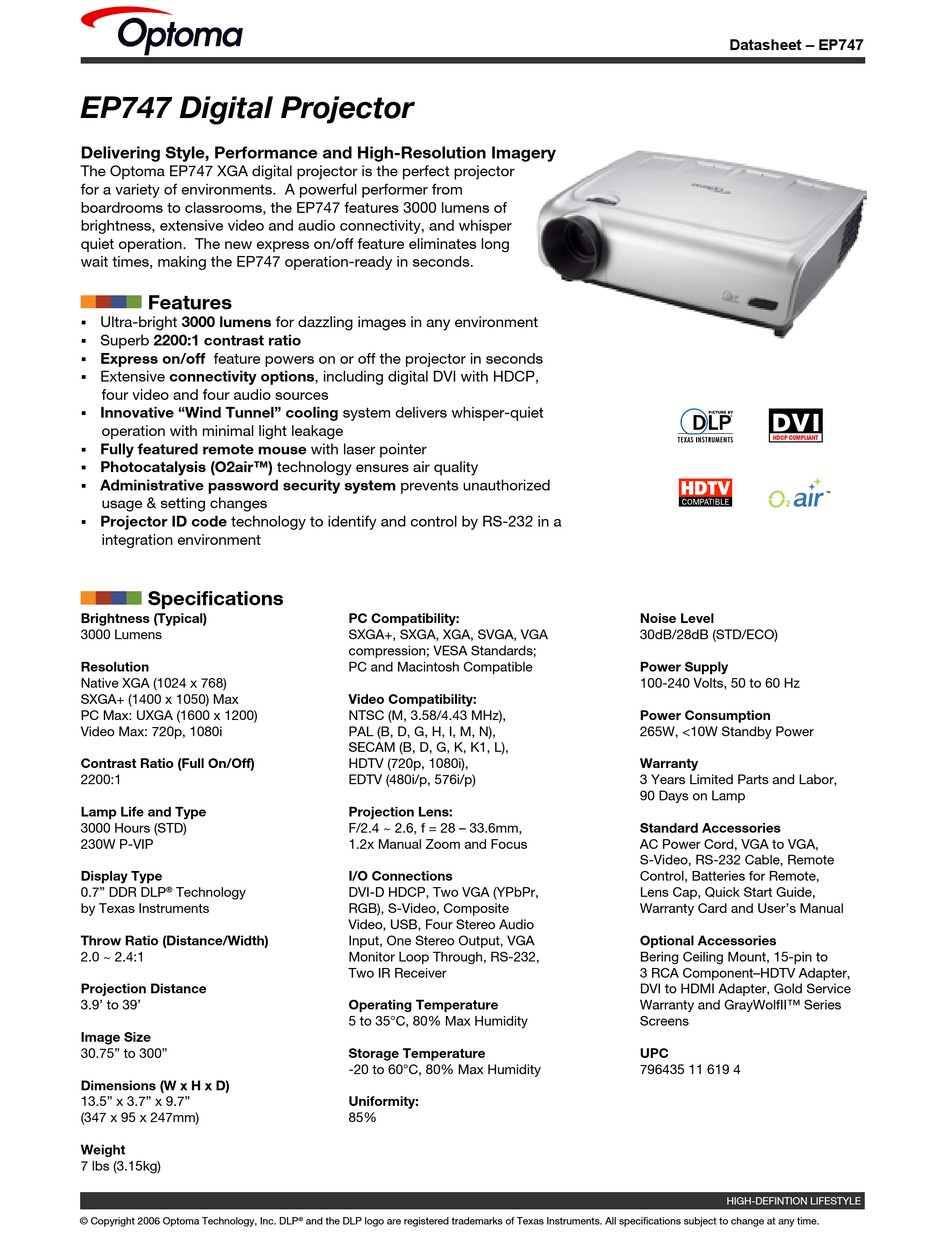

Optoma EP747 Datasheet

EP747 Digital Projector
Delivering Style, Performance and High-Resolution Imagery
The Optoma EP747 XGA digital projector is the perfect projector
for a variety of environments. A powerful performer from
boardrooms to classrooms, the EP747 features 3000 lumens of
brightness, extensive video and audio connectivity, and whisper
quiet operation. The new express on/off feature eliminates long
wait times, making the EP747 operation-ready in seconds.
Features
Ultra-bright 3000 lumens for dazzling images in any environment

Superb 2200:1 contrast ratio

Express on/off feature powers on or off the projector in seconds

Extensive connectivity options, including digital DVI with HDCP,

four video and four audio sources
Innovative "Wind Tunnel" cooling system delivers whisper-quiet

operation with minimal light leakage
Fully featured remote mouse with laser pointer

Photocatalysis (O2air™) technology ensures air quality

Administrative password security system prevents unauthorized

usage & setting changes
Projector ID code technology to identify and control by RS-232 in a

integration environment

Specifications

Brightness (Typical)
3000 Lumens
Resolution
Native XGA (1024 x 768)
SXGA+ (1400 x 1050) Max
PC Max: UXGA (1600 x 1200)
Video Max: 720p, 1080i
Contrast Ratio (Full On/Off)
2200:1
Lamp Life and Type
3000 Hours (STD)
230W P-VIP
Display Type
0.7" DDR DLP Technology
®
by Texas Instruments
Throw Ratio (Distance/Width)
2.0 ~ 2.4:1
Projection Distance
3.9' to 39'
Image Size
30.75" to 300"
Dimensions (W x H x D)
13.5" x 3.7" x 9.7"
(347 x 95 x 247mm)
Weight
7 lbs (3.15kg)
© Copyright 2006 Optoma Technology, Inc. DLP
PC Compatibility:
SXGA+, SXGA, XGA, SVGA, VGA
compression; VESA Standards;
PC and Macintosh Compatible
Video Compatibility:
NTSC (M, 3.58/4.43 MHz),
PAL (B, D, G, H, I, M, N),
SECAM (B, D, G, K, K1, L),
HDTV (720p, 1080i),
EDTV (480i/p, 576i/p)
Projection Lens:
F/2.4 ~ 2.6, f = 28 – 33.6mm,
1.2x Manual Zoom and Focus
I/O Connections
DVI-D HDCP, Two VGA (YPbPr,
RGB), S-Video, Composite
Video, USB, Four Stereo Audio
Input, One Stereo Output, VGA
Monitor Loop Through, RS-232,
Two IR Receiver
Operating Temperature
5 to 35°C, 80% Max Humidity
Storage Temperature
-20 to 60°C, 80% Max Humidity
Uniformity:
85%
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – EP747
Noise Level
30dB/28dB (STD/ECO)
Power Supply
100-240 Volts, 50 to 60 Hz
Power Consumption
265W, <10W Standby Power
Warranty
3 Years Limited Parts and Labor,
90 Days on Lamp
Standard Accessories
AC Power Cord, VGA to VGA,
S-Video, RS-232 Cable, Remote
Control, Batteries for Remote,
Lens Cap, Quick Start Guide,
Warranty Card and User's Manual
Optional Accessories
Bering Ceiling Mount, 15-pin to
3 RCA Component–HDTV Adapter,
DVI to HDMI Adapter, Gold Service
Warranty and GrayWolfII™ Series
Screens
UPC
796435 11 619 4
