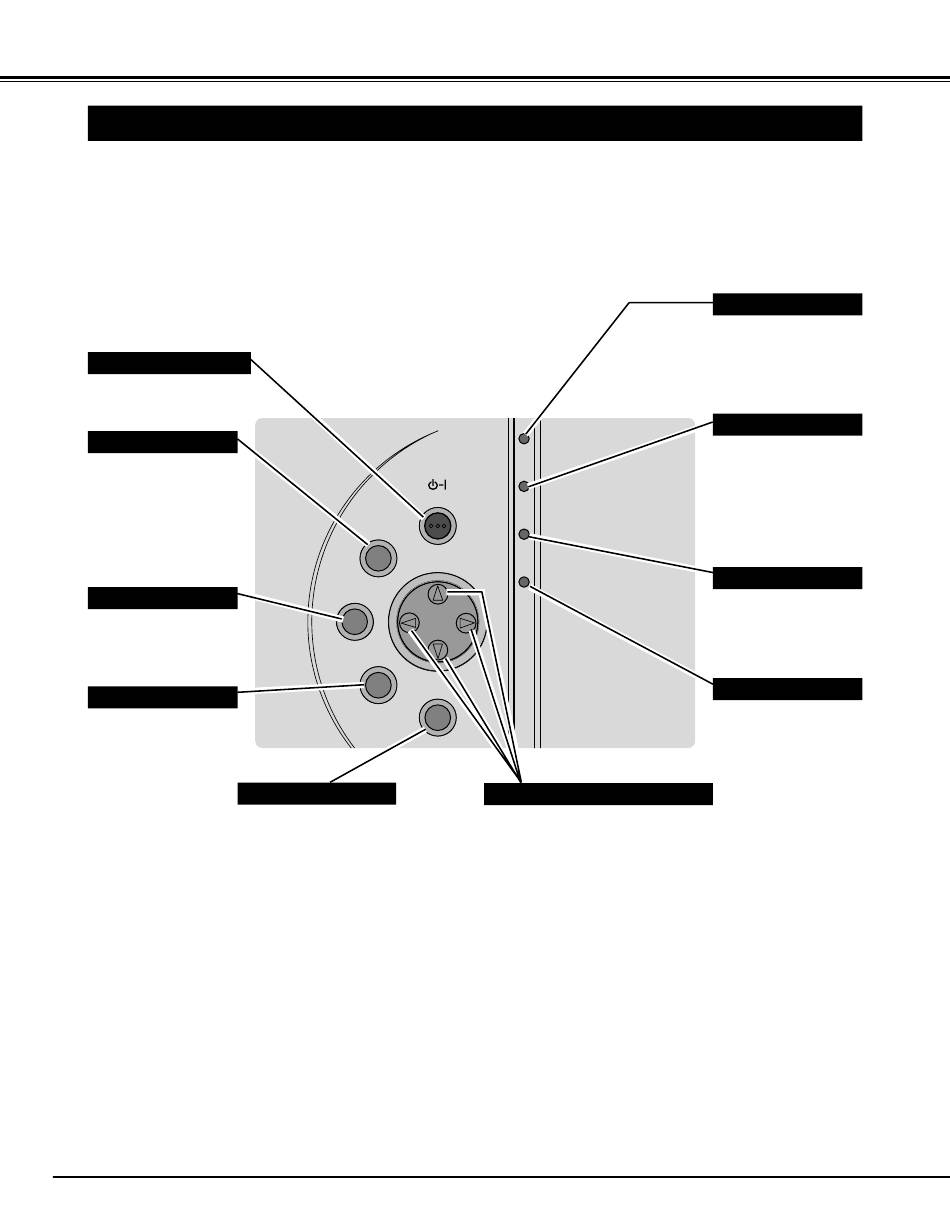

This projector has CONTROL BUTTONS (TOP CONTROLS) and INDICATORS on its top.
POWER ON–OFF BUTTON
Used to turn the projector
on or off. (P19)
INPUT BUTTON
Used to select input
source. (P22, 30)
MENU BUTTON
Used to open or close
MENU operation. (P17,
18)
IMAGE BUTTON
Used to select image
level. (P27, 32)
16

TOP CONTROLS AND INDICATORS

INPUT
MENU
SELECT BUTTON
Used to execute the item
selected. It is also used
to expand / compress
the image in DIGITAL
ZOOM mode. (P29)
LAMP
READY
ON – OFF
WARNING
TEMP .
LAMP
REPLACE
-VOLUME-
SELECT
POINT (VOLUME + / – ) BUTTONS
Used to select an item or adjust
value in ON-SCREEN MENU. They
are also used to pan the image in
DIGITAL ZOOM
+/–
POINT LEFT/RIGHT buttons are
also used as VOLUME +/– buttons.
LAMP INDICATOR
Becomes dim when the
projector is turned on.
And bright when the
projector is in stand-by
mode.
READY INDICATOR
Lights green when the
projector is ready to be
turned on.
flashes green in Power
Management mode.
(P36)
WARNING TEMP. INDICATOR
Flashes red
internal
temperature is too
high. (P37)
LAMP REPLACE INDICATOR
Turns to yellow when
the life of the projection
lamp draws to an end.
(P38)
mode. (P29)
And it
when
projector
