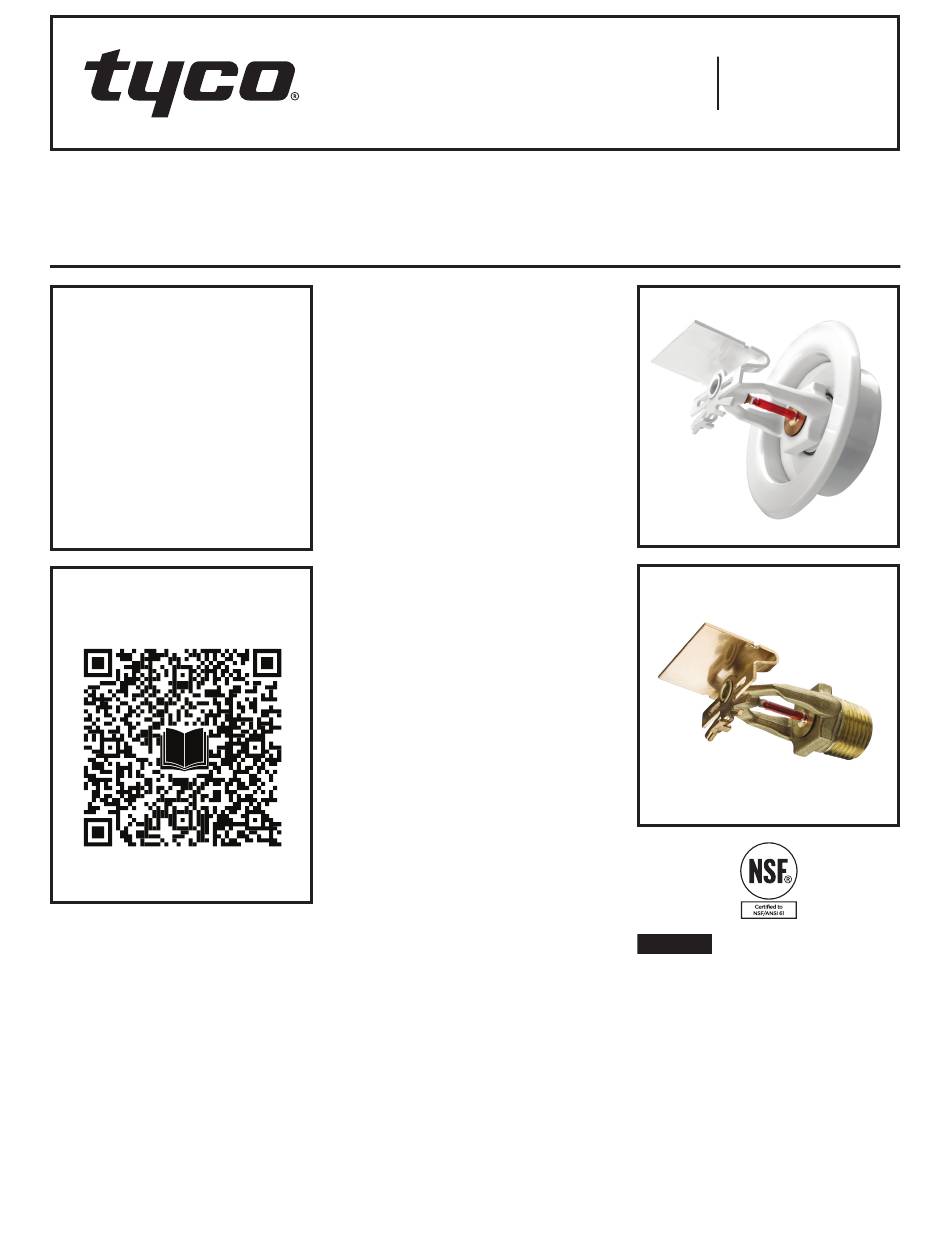

Series LFII Residential Sprinklers
4.4 K-factor Horizontal Sidewall
Wet Pipe Systems
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/series-lfii-
res-4_4k-hori-side-wet-pipe
General
Description

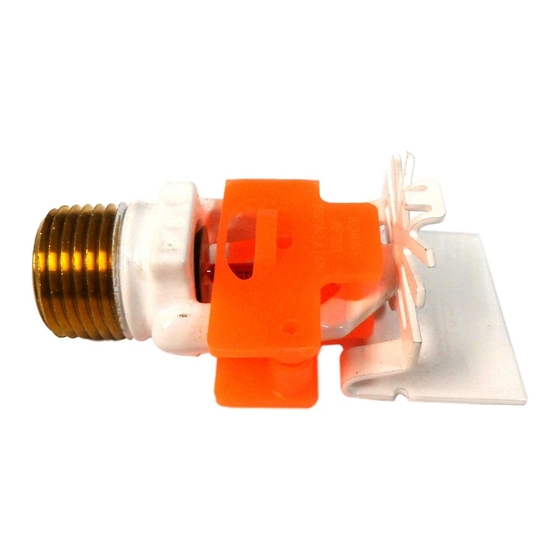

The TYCO Series LFII Residential Hor-
izontal Sidewall Sprinklers (TY2334)
are decorative, fast response, frangi-
ble bulb sprinklers designed for use
in residential occupancies such as
homes, apartments, dormitories, and
hotels. When aesthetics and optimized
flow characteristics are the major con-
sideration, the Series LFII Residential
Sprinklers (TY2334) should be the first
choice.
Page 1 of 6
The Series LFII Residential Sprinklers
are intended for use in the following
scenarios:
• wet pipe residential sprinkler sys-
tems for one-and two-family dwell-
ings and mobile homes per NFPA
13D
• wet pipe residential sprinkler sys-
tems for residential occupancies up
to and including four stories in height
per NFPA 13R
• wet pipe sprinkler systems for the
residential portions of any occu-
pancy per NFPA 13
The recessed version of the Series
LFII Residential Sprinklers is intended
for use in areas with finished walls.
It employs a two-piece Style 20
Recessed Escutcheon. The Recessed
Escutcheon provides 1/4 in. (6,4 mm)
of recessed adjustment or up to 1/2 in.
(12,7 mm) of total adjustment from the
flush mounting surface position. The
adjustment provided by the Recessed
Escutcheon reduces the accuracy to
which the pipe nipples to the sprinklers
must be cut.
The Series LFII Residential Sprinklers
has been designed with heat sensitivity
and water distribution characteristics
proven to help in the control of residen-
tial fires and to improve the chance for
occupants to escape or be evacuated.
Corrosion-resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion-resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable Approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
MARCH 2022
Worldwide
www.tyco-fire.com
Contacts
NOTICE
The Series LFII Residential Horizontal
Sidewall Sprinklers (TY2334) described
herein must be installed and main-
tained in compliance with this docu-
ment and with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
TFP412

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFII Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco LFII Series

  • Page 1 Sidewall Sprinklers (TY2334) described cable Approval agencies, the testing is herein must be installed and main- The TYCO Series LFII Residential Hor- not representative of all possible cor- tained in compliance with this docu- izontal Sidewall Sprinklers (TY2334) rosive atmospheres.
  • Page 2: Technical Data

    TFP412 Page 2 of 6 Components: WRENCH FLATS Frame WRENCH Button FLATS Sealing TOP-OF- Assembly 1/2" NPT DEFLECTOR Bulb Compression 7/16" (11,1 mm) 2-7/8" DIA. Screw NOMINAL (73,0 mm) De ector MAKE-IN CENTERLINE Temperature rating OF WATERWAY is indicated on top STYLE 20 of De ector.
  • Page 3: Operation

    Deflector parallel to the ceiling. the Technical Data Sheet TFP490. The TYCO Series LFII (TY2334) Resi- Step 2. With pipe thread sealant Operational Sensitivity dential Horizontal Sidewall Sprinklers...
  • Page 4 TFP412 Page 4 of 6 WET PIPE SYSTEM Minimum Flow and Residual Pressure (b, c) Max. Max. Coverage Spacing Area Ordinary Temp. Rating Intermediate Temp. Rating Minimum 155°F (68°C) 175°F (79°C) Width x Length Deflector to Installation Spacing ft x ft Flow Pressure Flow...
  • Page 5: Care And Maintenance

    Care and Limited Ordering Maintenance Warranty Procedure The TYCO Series LFII (TY2334) Resi- For warranty terms and conditions, Contact your local distributor for avail- dential Horizontal Sidewall Sprinklers visit www.tyco-fire.com. ability. When placing an order, indicate must be maintained and serviced in the full product name and Part Number accordance with this section.
  • Page 6 TFP412 Page 6 of 6 1400 Pennbrook Parkway, Lansdale, PA 19446 | Telephone +1-215-362-0700 © 2022 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice. NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National Fire Protection Association;...
