Series LFII Residential Sprinkler
4.4 K-factor Horizontal Sidewall, Dry Type
Wet Pipe System
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/series-lfii-
res-4_4-k-hori-side-dry-type
General
Description

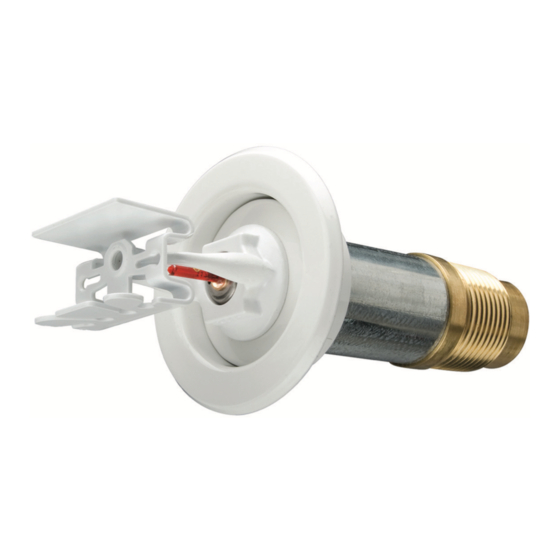

The TYCO Series LFII Dry Type Res-
idential Horizontal Sidewall (HSW)
Sprinklers (TY2335) are dry-type dec-
orative, fast response, frangible bulb
sprinklers designed for use in residen-
tial occupancies such as homes, apart-
ments, dormitories, and hotels.
Page 1 of 6
The Series LFII Dry Type Residential
Horizontal Sidewall Sprinklers are typ-
ically used where sprinklers and/or a
portion of the connecting piping are
exposed to freezing temperatures (for
example, horizontal sprinkler supplied
from wet systems into unheated areas).
The Series LFII Dry Type Residen-
tial Horizontal Sidewall Sprinklers are
intended for use in Residential Sprin-
kler systems for one- and two-family
dwellings and mobile homes per NFPA
13D; residential sprinkler systems for
residential occupancies up to and
including four stories in height per
NFPA 13R; or, sprinkler systems for the
residential portions of any occupancy
per NFPA 13.
The recessed version is intended
for use in areas with finished walls.
It employs a two-piece Style 20
Recessed Escutcheon. The Recessed
Escutcheon provides 1/4 in. (6,4 mm)
of recessed adjustment or up to 1/2 in.
(12,7 mm) of total adjustment from the
flush mounting surface position. The
design of this escutcheon provides a
level of flexibility in adjusting sprinkler
supply connections.
The Series LFII Dry Type Residential
Horizontal Sidewall Sprinklers have
been designed with heat sensitivity and
water characteristics proven to help in
the control of residential fires and to
improve the chance for occupants to
escape or be evacuated.
Corrosion-resistant coatings, where
applicable, are utilized to extend the life
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion-resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable Approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
APRIL 2022
Worldwide
www.tyco-fire.com
Contacts
ambient temperature, concentration of
chemicals, and gas/chemical velocity
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
NOTICE
The Series LFII Dry Type Residential
Horizontal Sidewall Sprinklers (TY2335)
described herein must be installed and
maintained in compliance with this doc-
ument and the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and de vices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY2335
TFP461
