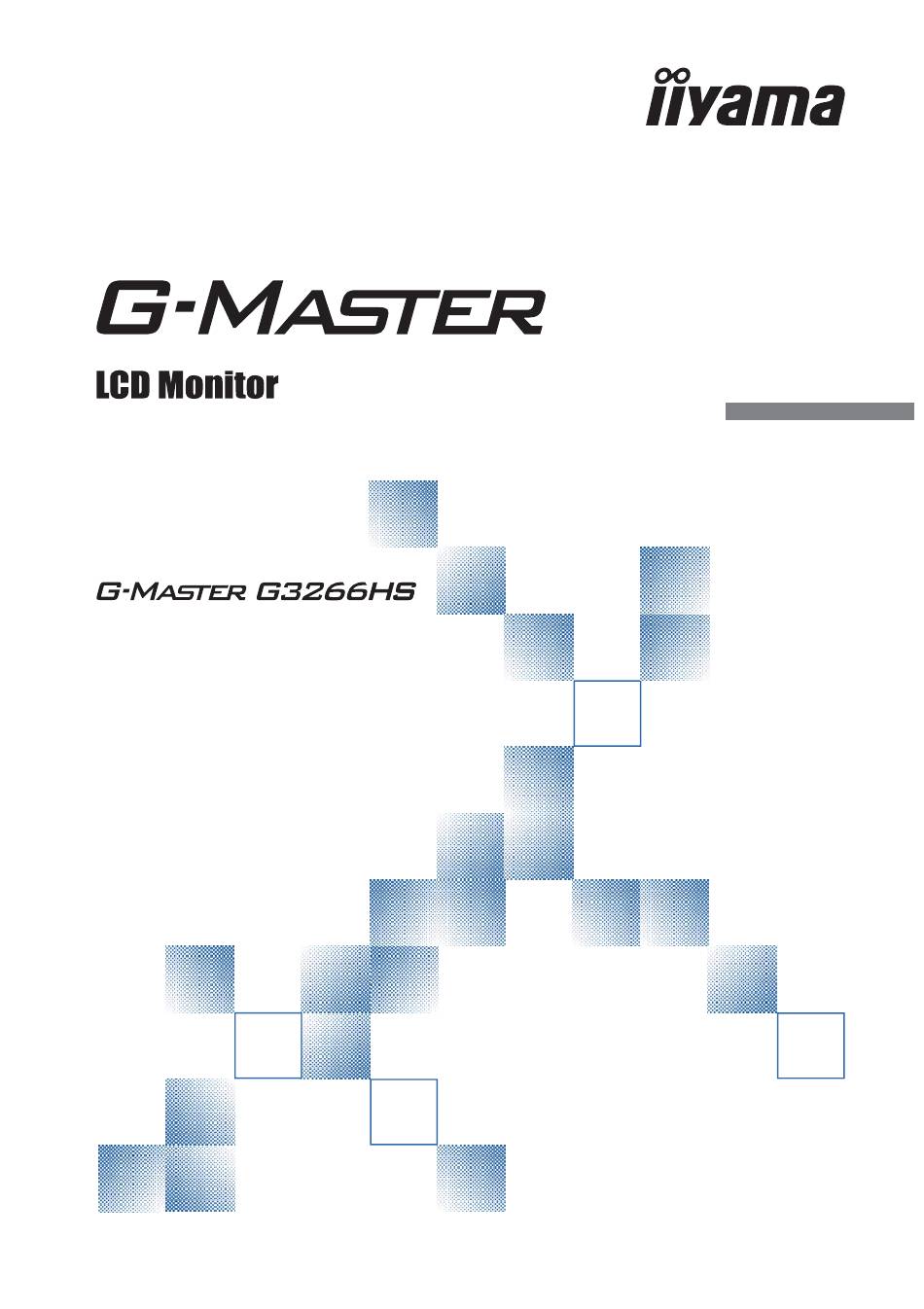

USER MANUAL
ENGLISH
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes
to read this comprehensive manual carefully
before installing and switching on the monitor.
Please keep this manual in a safe place for
your future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Master G3266HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iiyama G-Master G3266HS

Summary of Contents for Iiyama G-Master G3266HS

  • Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
  • Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL3266H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 CONTROLS AND CONNECTORS..........6 CONNECTING YOUR MONITOR ...........7 COMPUTER SETTING ..............8 ADJUSTING THE VIEWING ANGLE ..........8...

  • Page 5: For Your Safety

    Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
  • Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.

  • Page 7: Special Notes On Lcd Monitors

     If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center.  For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it.

  • Page 8: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 9: Wall Mounting

    WALL MOUNTING WARNING  When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 9mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

  • Page 10: Controls And Connectors

    CONTROLS AND CONNECTORS Power Indicator White: Normal operation NOTE Orange: Power Management Headphone hook* Navigation Button <Front> Power Switch / Menu Scroll Up ( )  Scroll Down / ECO Mode ( Left / Input Select ( Right / Audio Adjust ( Keyhole for Security Lock You can fasten a security lock NOTE...

  • Page 11: Connecting Your Monitor

    An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce.

  • Page 12: Computer Setting

    COMPUTER SETTING  Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE  For optimal viewing it is recommended to look at the full face of the monitor.  Hold the stand so that the monitor does not topple when you change the monitor’s angle.

  • Page 13: Operating The Monitor

    OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS.

  • Page 14: Adjustment Menu Contents

    ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Overdrive Exit Move Select Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright For general windows environment and monitor Standard default setting.
  • Page 15 Image Setup Image Setup Image Setup Clock FreeSync Phase H.Position V.Position Aspect Ratio Wide Exit Move Select Exit Move Select Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H.
  • Page 16 Color Temp. * Color Temp. Color Temp. Warm Green Blue Exit Move Select Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Yellowish white Warm Greenish white sRGB sRGB Color Temp. Too weak User Green Too strong Blue ...
  • Page 17 OSD Setup OSD Setup H. Position V. Position Timeout Language English Exit Move Select Adjustment Item Problem / Option Button to Press OSD is too left H. Position OSD is too right OSD is too low V. Position OSD is too high You can set the OSD display duration time Timeout between 5 and 100 seconds.
  • Page 18 Extra Extra Input Select DDC/CI Reset Information Resolution: 1920<H> * 1080<V> H. Frequency: 67KHz V. Frequency: 60Hz Exit Move Select Adjustment Item Problem / Option Button to Press Select the Analog (VGA) input. Select the Digital (DVI) input. Input Select HDMI Select the Digital (HDMI) input.

  • Page 19: Screen Adjustments

    Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.  Audio Adjust: Press the Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud HDMI...

  • Page 20: Screen Adjustments

    If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
  • Page 21 Pressing and holding of the Button for about 2-3 seconds. (Auto Confi gure) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
  • Page 22 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE  In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.

  • Page 23: Power Management Feature

    POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below.

  • Page 24: Trouble Shooting

    MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...

  • Page 25: Recycling Information

    A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 21...

  • Page 26: Appendix

    APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 32" Panel technology Size Diagonal: 31.5" (80cm) Curvature 1800R Pixel pitch 0.364mm H × 0.364mm V Panel Brightness 300cd/m (Typical) Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down : 89 degrees each (Typical) Response time...

  • Page 27: Dimensions

    Tilt Angle Upward: 12 degrees, Downward: 4 degrees Operating: Temperature 5 to 35°C / 41 to 95°F Environmental Humidity 10 to 80% (No condensation) Considerations Storage: Temperature -20 to 60°C / -4 to 140°F Humidity 5 to 85% (No condensation) Approvals CE, TÜV-Bauart, CU DIMENSIONS...

  • Page 28: Compliant Timing

    COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 VESA 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz SXGA...
