USER MANUAL
ENGLISH
Thank you very much for choosing the
iiyama LCD monitor.
We r e c o m m e n d t h a t y o u t a k e a f e w
minutes to read carefully through this brief
but comprehensive manual before installing
and switching on the monitor. Please keep
this manual in a safe place for your future
reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

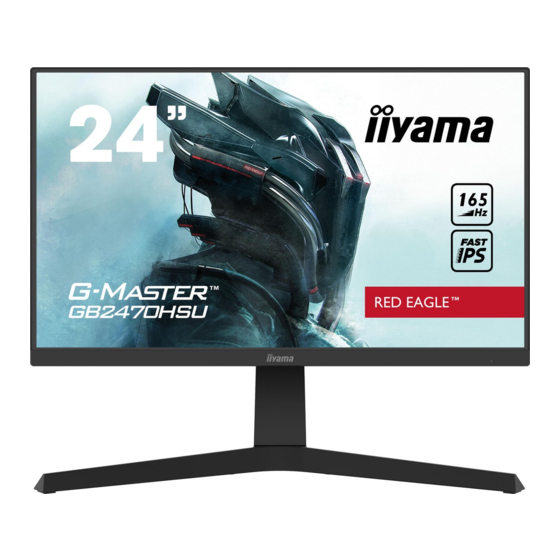

Related Manuals for Iiyama G-MASTER GB2470HSU
Summary of Contents for Iiyama G-MASTER GB2470HSU
- Page 1 ENGLISH Thank you very much for choosing the iiyama LCD monitor. We r e c o m m e n d t h a t y o u t a k e a f e w minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor.
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2470H, PL2770H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
G-MASTER GB2470HSU / G-MASTER GB2770HSU ....9 CONTROLS AND CONNECTORS : G-MASTER G2470HSU / G-MASTER G2770HSU .......10 CONNECTING YOUR MONITOR : G-MASTER GB2470HSU / G-MASTER GB2770HSU ....11 CONNECTING YOUR MONITOR : G-MASTER G2470HSU / G-MASTER G2770HSU .......12 COMPUTER SETTING ..............13 ADJUSTING HEIGHT AND VIEWING ANGLE : G-MASTER GB2470HSU / G-MASTER GB2770HSU ....13... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION Before installation, make sure the wall, ceiling or desktop arm is strong enough to WARNING hold the necessary weight of the display and the mount. [WALL MOUNTING] When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. - Page 10 [ROTATING THE MONITOR] ● G-MASTER GB2470HSU / G-MASTER GB2770HSU The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator...
-
Page 11: Fitting And Removal Of Base : G-Master Gb2470Hsu / G-Master Gb2770Hsu
FITTING AND REMOVAL OF BASE : G-MASTER GB2470HSU / G-MASTER GB2770HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 12: Fitting And Removal Of Base : G-Master G2470Hsu / G-Master G2770Hsu
FITTING AND REMOVAL OF BASE : G-MASTER G2470HSU / G-MASTER G2770HSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Controls And Connectors : G-Master Gb2470Hsu / G-Master Gb2770Hsu
CONTROLS AND CONNECTORS : G-MASTER GB2470HSU / G-MASTER GB2770HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Standby mode S ignal Select / Exit Button (INPUT) * + / Volume Button ( + ) * – / i-Style Color Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( 5V, 500mA) USB Downstream Connector ( 5V, 500mA) Keyhole for Security Lock... -
Page 14: Controls And Connectors : G-Master G2470Hsu / G-Master G2770Hsu
CONTROLS AND CONNECTORS : G-MASTER G2470HSU / G-MASTER G2770HSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Standby mode S ignal Select / Exit Button (INPUT) * + / Volume Button ( + ) * – / i-Style Color Button ( – ) * Menu Button (MENU) Power Switch ( ) Speakers USB Downstream Connector ( 5V, 500mA) USB Downstream Connector ( 5V, 500mA) Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. -
Page 15: Connecting Your Monitor : G-Master Gb2470Hsu / G-Master Gb2770Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 16: Connecting Your Monitor : G-Master G2470Hsu / G-Master G2770Hsu
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 17: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 37: COMPLIANT TIMING. ADJUSTING HEIGHT AND VIEWING ANGLE : G-MASTER GB2470HSU / G-MASTER GB2770HSU For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height... -
Page 18: Adjusting Viewing Angle : G-Master G2470Hsu / G-Master G2770Hsu
ADJUSTING VIEWING ANGLE : G-MASTER G2470HSU / G-MASTER G2770HSU For optimal viewing it is recommended to look at the full face of the monitor. Hold the stand so that the monitor does not topple when you change the monitor’s angle. ... -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 37. You are also able to adjust the picture by following the button operation shown below. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust G-MASTER GB2470HSU PICTURE ADJUST PICTURE ADJUST INPUT SELECT CONTRAST AUDIO ADJUST BRIGHTNESS STORE USER SETTING OVERDRIVE COLOR SETTINGS ADV. CONTRAST IMAGE ADJUST LANGUAGE BLUE LIGHT REDUCER BLACK TUNER SETUP MENU DISPLAY INFORMATION RESET GAMMA GAMMA3... - Page 21 The availability of each item depends on which item is activated. See the Function Correlation Matrix below for more details. Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. Not available when AMD FreeSync Premium is active.
- Page 22 Input Select G-MASTER GB2470HSU PICTURE ADJUST INPUT SOURCE Direct INPUT SELECT AUTO MANUAL AUDIO ADJUST MANUAL STORE USER SETTING HDMI SELECT SELECT COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Option Adjustment Item Search for an available input source and Auto select automatically.
- Page 23 Audio Adjust G-MASTER GB2470HSU PICTURE ADJUST VOLUME INPUT SELECT AUDIO ADJUST OPTIONS STORE USER SETTING MUTE COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Problem / Option Button to Press Too soft Direct Volume Too loud Turn off the sound temporarily.
- Page 24 Store User Setting G-MASTER GB2470HSU PICTURE ADJUST STORE USER SETTING INPUT SELECT USER MODES USER MODE 1 AUDIO ADJUST STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Option User Mode 1 Save the settings of the screen adjustment.
- Page 25 Color Settings * G-MASTER GB2470HSU PICTURE ADJUST COLOR TEMPERATURE INPUT SELECT COOL NORMAL WARM AUDIO ADJUST 6-AXIS SATURATION STORE USER SETTING USER PRESET COLOR SETTINGS IMAGE ADJUST GREEN LANGUAGE BLUE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Problem / Option...
- Page 26 Image Adjust G-MASTER GB2470HSU PICTURE ADJUST IMAGE ADJUST INPUT SELECT I-STYLE COLOR AUDIO ADJUST X-RES TECHNOLOGY STORE USER SETTING SHARP AND SOFT COLOR SETTINGS HDMI RANGE FULL DIRECT DRIVE MODE IMAGE ADJUST LANGUAGE VIDEO MODE ADJUST FULL SETUP MENU DISPLAY INFORMATION...
- Page 27 Image Adjust G-MASTER GB2470HSU PICTURE ADJUST IMAGE ADJUST INPUT SELECT I-STYLE COLOR AUDIO ADJUST X-RES TECHNOLOGY STORE USER SETTING SHARP AND SOFT COLOR SETTINGS HDMI RANGE FULL IMAGE ADJUST DIRECT DRIVE MODE LANGUAGE VIDEO MODE ADJUST FULL SETUP MENU DISPLAY INFORMATION...
- Page 28 Language G-MASTER GB2470HSU PICTURE ADJUST CHANGE LANGUAGE ENGLISH Italiano Português INPUT SELECT Рyccкий AUDIO ADJUST Deutsch Ĉesky STORE USER SETTING Español Nederlands COLOR SETTINGS Français Polski IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item Option English English Nederlands Dutch...
- Page 29 Setup Menu G-MASTER GB2470HSU PICTURE ADJUST SETUP MENU OSD HORIZONTAL POSITION INPUT SELECT AUDIO ADJUST OSD VERTICAL POSITION STORE USER SETTING OSD TIME COLOR SETTINGS OPENING LOGO AMD FreeSync Premium IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RESET Adjustment Item...
- Page 31 ● Lock Mode <OSD Menu> Hold the MENU button and turn on the monitor when the monitor is power-off, it will lock/unlock the OSD Lock function. <Power Switch / OSD Menu> Pressing and holding the MENU button for 10 seconds when Menu is not displayed, will lock/unlock the Power/OSD Lock function. OPERATING THE MONITOR 27...
-
Page 32: Standby Feature
STANDBY FEATURE The standby feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a standby step the monitor takes as described below. -
Page 33: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 34: Recycling Information
RECYCLING INFORMATION For better environment protection please don’t dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 30 RECYCLING INFORMATION... -
Page 35: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : G-MASTER GB2470HSU Size Category 24" Panel technology Fast IPS Diagonal: 23.8" (60.5cm) Size Pixel pitch 0.275mm H × 0.275mm V (Typical) Brightness 250cd/m Panel 1100 : 1 (Typical), Advanced Contrast Function Available Contrast ratio Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Viewable angle MPRT 0.8ms Display Colors Approx. 16.7M HDMI: Horizontal: 15.0-225.0kHz, Vertical: 48-144Hz Sync Frequency DisplayPort: Horizontal: 15.0-225.0kHz, Vertical: 48-165Hz... -
Page 36: Specifications : G-Master G2470Hsu
SPECIFICATIONS : G-MASTER G2470HSU Size Category 24" Panel technology Fast IPS Diagonal: 23.8" (60.5cm) Size Pixel pitch 0.275mm H × 0.275mm V (Typical) Brightness 250cd/m Panel 1100 : 1 (Typical), Advanced Contrast Function Available Contrast ratio Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Viewable angle MPRT 0.8ms Display Colors Approx. 16.7M HDMI: Horizontal: 15.0-225.0kHz, Vertical: 48-144Hz Sync Frequency DisplayPort: Horizontal: 15.0-225.0kHz, Vertical: 48-165Hz Native Resolution... -
Page 37: Specifications : G-Master Gb2770Hsu
SPECIFICATIONS : G-MASTER GB2770HSU Size Category 27" Panel technology Fast IPS Diagonal: 27.0" (68.6cm) Size Pixel pitch 0.311mm H × 0.311mm V (Typical) Brightness 250cd/m Panel 1100 : 1 (Typical), Advanced Contrast Function Available Contrast ratio Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Viewable angle MPRT 0.8ms Display Colors Approx. 16.7M HDMI: Horizontal: 15.0-225.0kHz, Vertical: 48-144Hz Sync Frequency DisplayPort: Horizontal: 15.0-225.0kHz, Vertical: 48-165Hz Native Resolution... -
Page 38: Specifications : G-Master G2770Hsu
SPECIFICATIONS : G-MASTER G2770HSU Size Category 27" Panel technology Fast IPS Diagonal: 27.0" (68.6cm) Size Pixel pitch 0.311mm H × 0.311mm V (Typical) Brightness 250cd/m Panel 1100 : 1 (Typical), Advanced Contrast Function Available Contrast ratio Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Viewable angle MPRT 0.8ms Display Colors Approx. 16.7M HDMI: Horizontal: 15.0-225.0kHz, Vertical: 48-144Hz Sync Frequency DisplayPort: Horizontal: 15.0-225.0kHz, Vertical: 48-165Hz Native Resolution... -
Page 39: Dimensions : G-Master Gb2470Hsu
DIMENSIONS : G-MASTER GB2470HSU 539.5mm / 21.2” 45.5mm / 1.8” 534.0mm / 21.0” 480.0mm / 18.9” ( ) : Maximum adjustment range DIMENSIONS : G-MASTER G2470HSU 539.5mm / 21.2” 45.5mm / 1.8” 534.0mm / 21.0” APPENDIX 35... -
Page 40: Dimensions : G-Master Gb2770Hsu
DIMENSIONS : G-MASTER GB2770HSU 612.5mm / 24.1” 45.5mm / 1.8” 606.0mm / 23.9” 480.0mm / 18.9” ( ) : Maximum adjustment range DIMENSIONS : G-MASTER G2770HSU 612.5mm / 24.1” 45.5mm / 1.8” 606.0mm / 23.9” 374.0mm / 14.7” 36 APPENDIX... -
Page 41: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 63.981kHz 60.020Hz 108.000MHz 1280 × 1024 79.976kHz 75.025Hz 135.000MHz 1680 × 1050 65.290kHz 60.000Hz 146.250MHz...
