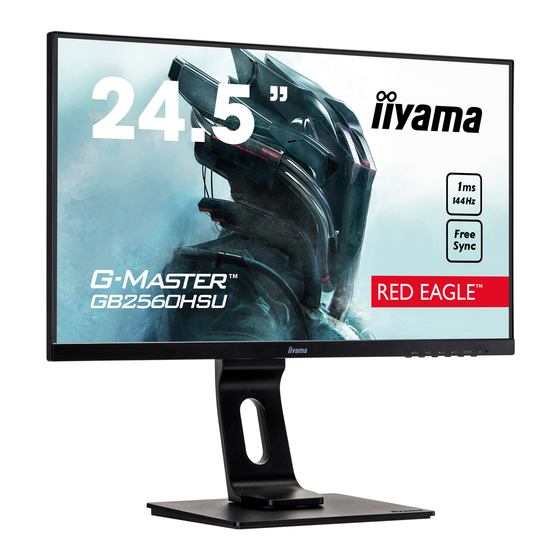

Summary of Contents for Iiyama G-Master GB2560HSU

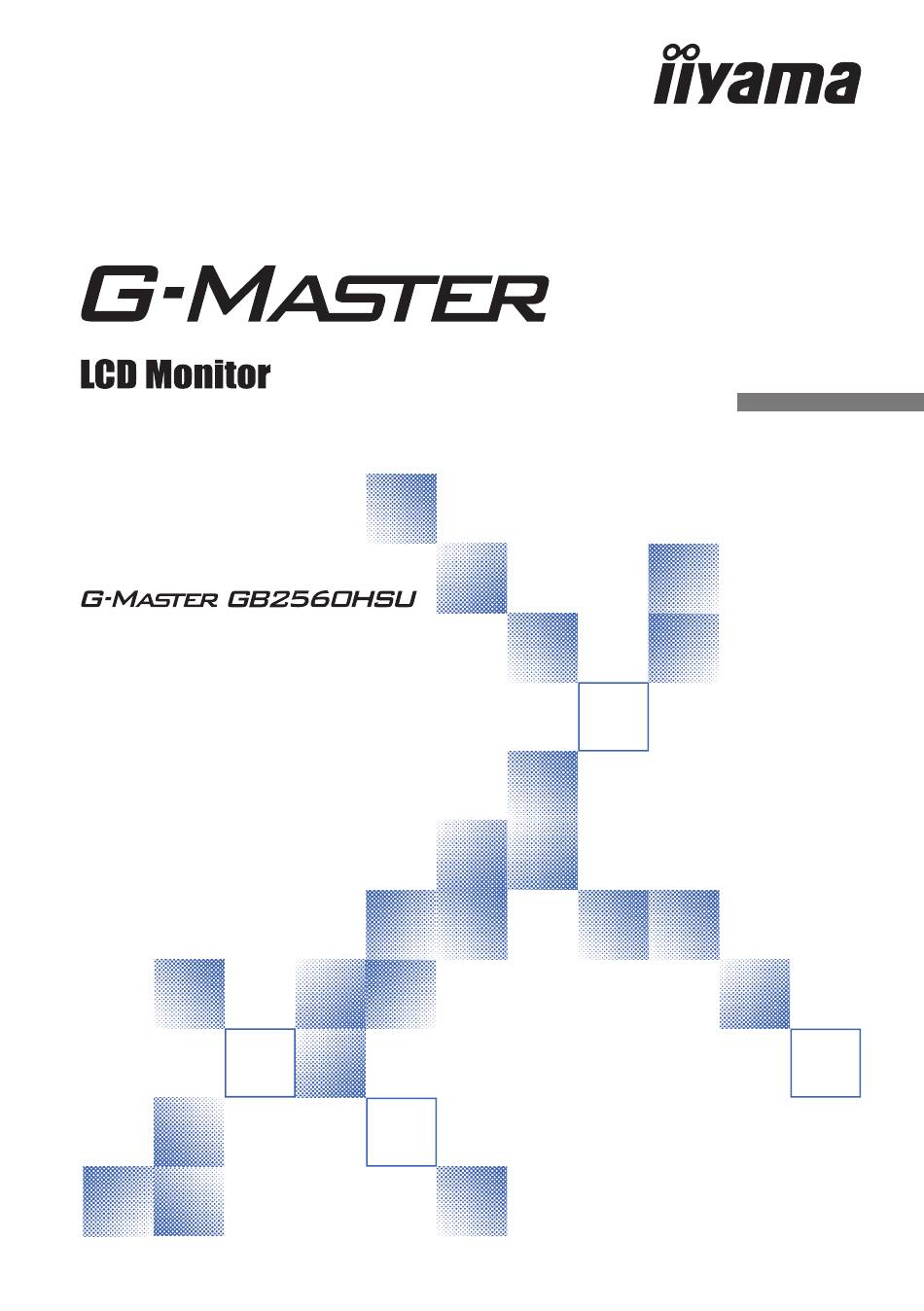

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2560H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 INSTALLATION ................5 FITTING AND REMOVAL OF BASE ..........7 CONTROLS AND CONNECTORS..........8 CONNECTING YOUR MONITOR ...........9 COMPUTER SETTING ..............10... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. - Page 10 < ROTATING THE DISPLAY > The monitor is designed to be compatible with both landscape and portrait modes. Video card for portrait display will be required for rotating the image on the screen. Available Not Available Power Indicator Landscape Power Indicator Portrait With Stand: Adjust the monitor’s height before panel rotation.
-
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( ) Menu / Select Button (ENTER) Scroll Up / Volume Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Input Select Button (INPUT) Speakers USB Downstream Connector ( 5V, 500mA) Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 14: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 25: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Adjust * G-MASTER GB2560HSU PICTURE ADJUST PICTURE ADJUST INPUT SELECT CONTRAST AUDIO SETTINGS BRIGHTNESS OVERDRIVE STORE USER SETTING COLOR SETTING ADV. CONTRAST IMAGE ADJUST MODE 1 LANGUAGE BLUE LIGHT REDUCER MODE 3 BLACK TUNER SETUP MENU... - Page 17 Input Select G-MASTER GB2560HSU PICTURE ADJUST INPUT SOURCE Direct INPUT SELECT AUTO MANUAL AUDIO SETTINGS MANUAL HDMI STORE USER SETTING SELECT COLOR SETTING DISPLAYPORT (DP) SELECT IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Problem / Option Button to Press...
- Page 18 Audio Settings G-MASTER GB2560HSU PICTURE ADJUST VOLUME INPUT SELECT AUDIO SETTINGS OPTIONS STORE USER SETTING MUTE AUDIO COLOR SETTING IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Adjustment Item Problem / Option Button to Press Too soft Direct Volume Too loud Return the sound volume to the previous level.
- Page 19 Store User Setting G-MASTER GB2560HSU PICTURE ADJUST STORE USER SETTINGS INPUT SELECT USER MODES USER MODE 1 AUDIO SETTINGS STORE USER SETTING COLOR SETTING IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Adjustment Item Problem / Option Button to Press User Mode 1 Save the settings of the screen adjustment.
- Page 20 Image Adjust G-MASTER GB2560HSU PICTURE ADJUST MISCELLANEOUS I-STYLE COLOR CINEMA INPUT SELECT SHARP AND SOFT AUDIO SETTINGS HDMI RGB RANGE FULL LIMITED STORE USER SETTING DIRECT DRIVE MODE COLOR SETTING VIDEO MODE ADJUST FULL IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION...
- Page 21 Image Adjust G-MASTER GB2560HSU PICTURE ADJUST MISCELLANEOUS I-STYLE COLOR CINEMA INPUT SELECT SHARP AND SOFT AUDIO SETTINGS HDMI RGB RANGE FULL LIMITED STORE USER SETTING DIRECT DRIVE MODE COLOR SETTING VIDEO MODE ADJUST FULL IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION...
- Page 22 OSD is too high You can set the OSD display duration time between OSD Time 5 and 30 seconds. iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on.
- Page 23 Display Information G-MASTER GB2560HSU PICTURE ADJUST DISPLAY INFORMATION INPUT SELECT 1920X1080 @144HZ HDMI AUDIO SETTINGS STORE USER SETTING COLOR SETTING IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL Displays information regarding the current input signal coming from the graphic card in your computer.
- Page 24 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front button ENTER for about 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD Locked" will appear on the screen.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 27: Recycling Information
The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of loud or too quiet. the monitor. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 23... -
Page 28: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Size Category 25" Panel technology Size Diagonal: 24.5" (62.2cm) Pixel pitch 0.283mm H × 0.280mm V Brightness 400cd/m (Typical) Panel Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85° each, Up / Down : 80° each (Typical) Response time 1ms (Gray to Gray) Display Colors Approx. 16.7M HDMI: Horizontal: 30.0-167.0kHz, Vertical: 30-144Hz Sync Frequency DisplayPort: Horizontal: 30.0-167.0kHz, Vertical: 30-144Hz Native Resolution 1920 ×... -
Page 29: Dimensions
DIMENSIONS 557.5mm/21.9” 52.5mm/2.0” 553.0mm/21.8” 240.0mm/9.4” ( ) : Maximum adjustment range COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 60.023kHz 75.029Hz 78.750MHz 1280 × 1024 79.980kHz 75.020Hz 135.000MHz 1600 ×...
