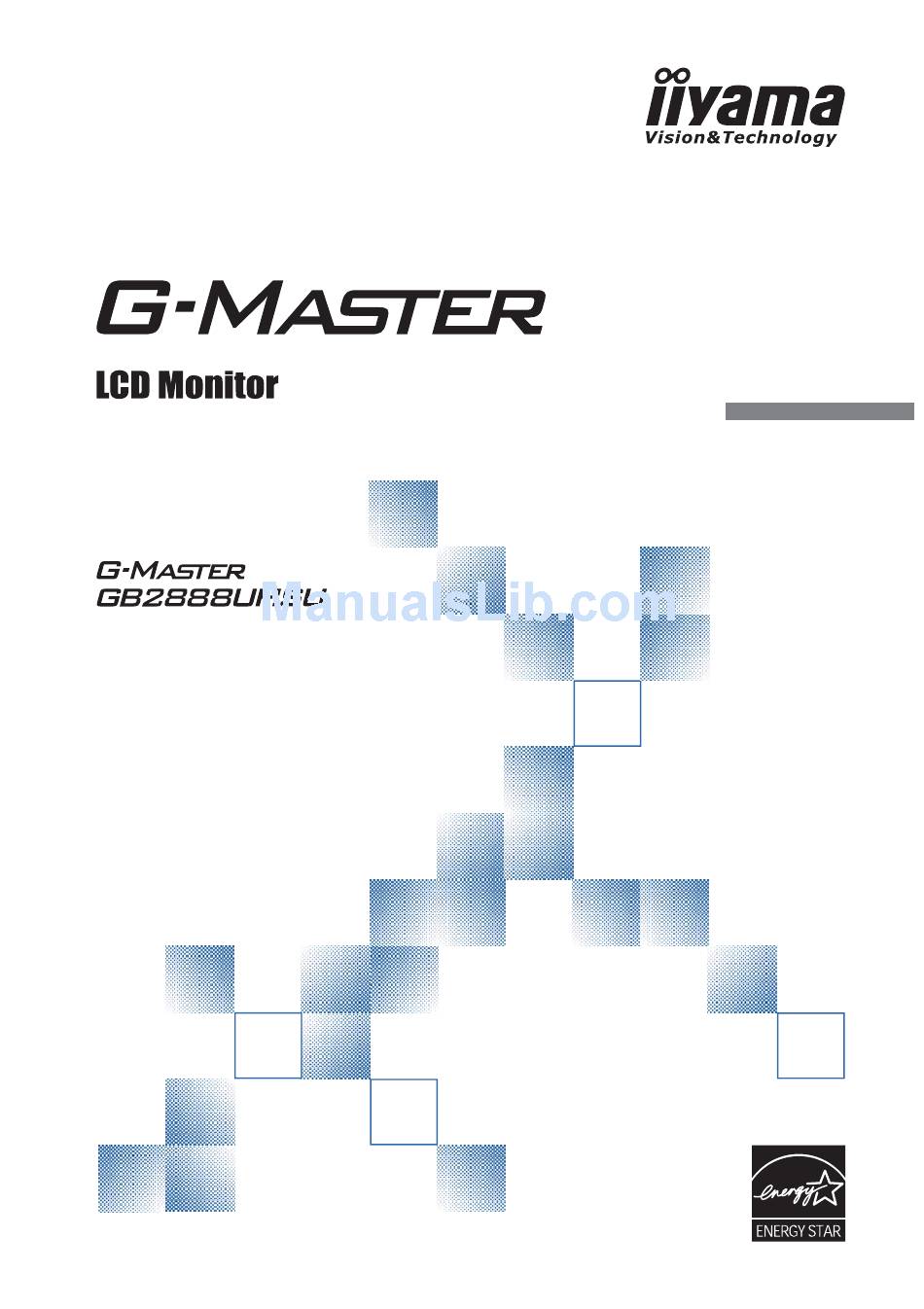

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2888UH We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Input / Select Button ( Scroll up / Audio Adjust Button ( Scroll down / i-Style Mode Button ( Menu Button ( Speakers Headphone Connector ( Audio Connector ( USB Downstream Connector (... -
Page 12: Connecting Your Monitor
* VGA (D-Sub) cable is not supplied with the monitor; you need to use a special VGA (D-Sub) cable dedicated for this model. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the VGA input. -
Page 13: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 29: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 14: Operating The Monitor
If you prefer to use the monitor over 3 hours continuously, please disable The Auto Pow. Off function. To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. - Page 15 NOTE When button operations are aborted during adjustment, On-Screen Display disappears when the time set for the OSD Time Out has passed. Also, the Button can be used to return previous menu and turn off the On-Screen Display. Any changes are automatically saved in the memory when the On Screen Display disappears.
-
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Input Select Direct Adjustment Item Problem / Option Button to Press Select the VGA input. HDMI1 Select the HDMI1 input. HDMI2-MHL Select the HDMI2-MHL input. HDMI3 Select the HDMI3 input. Input Select DisplayPort Select the DisplayPor1 input. Search for an available input source and select AUTO automatically. - Page 17 Picture Adjustment Item Problem / Option Button to Press Full Screen Full screen display Expansion display of Aspect Aspect Ratio Dot By Dot Display the picture dot by dot. 17 inch Display the picture as 17 inch screen (5 : 4) 19 inch Display the picture as 19 inch screen (5 : 4) Picture Format *...
- Page 18 PiP/PbP Adjustment Item Problem / Option Button to Press PiP/PbP Mode is turned off. PiP/PbP Mode * Display the sub screen in the main screen. Divide display images in two Select the VGA input. HDMI1 Select the HDMI1 input. Sub Win Input HDMI2-MHL Select the HDMI2-MHL input.
- Page 19 Audio Direct Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Return the sound volume to the previous level. Mute Direct Turn off the sound temporarily. Line-In Select the Line-In input. HDMI1 Select the HDMI1 input. HDMI2-MHL Select the HDMI2-MHL input.
- Page 20 Color * Adjustment Item Problem / Option Button to Press Warm (5500K) Reddish white Normal (6500k) Greenish white Cool (9300k) Bluish white Too weak User Color Green Too strong Blue Typical Blue light is reduced. Blue Light Reducer * Blue light is reduced more than Mode1. Direct Blue light is reduced more than Mode2.
- Page 21 Language Adjustment Item Problem / Option Button to Press English Italiano Italian English French Russian Français Русский Deutsch German Japanese Language Nederlands Dutch Simplifi ed Chinese Polski Polish Traditional Chinese Česky Czech OSD Setting Adjustment Item Problem / Option Button to Press OSD is too left OSD H.
- Page 22 i-S. Mode Adjustment Item Problem / Option Button to Press i-Style Mode is turned Off. For general windows environment and monitor Standard default setting. For Sports game environment. Sports Game For FPS game environment. FPS Game i-Style Mode Direct Strategy Game For Strategy game environment. For text editing and viewing in a word Text processing environment.
-
Page 23: Setup Menu
The Freesync function is turned off. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned The Power Indicator is turned On. The Power Indicator is turned Off. NOTE Turn Off the Power Indicator when you are bothered by the light. - Page 24 Setup Menu Adjustment Item Problem / Option Button to Press Displays information regarding the current input signal coming from the graphic card in your computer. <Example> NOTE Geometry Resolution: Input Information DP Format 1920x1080@60Hz Picture H.Frequency:66KHz See your graphic card user guide for more V.Frequency:60Hz PiP/PbP HDMI1 Format...
-
Page 25: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 26 Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 27 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 30: Recycling Information
A strange noise The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 26 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 31: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS Size Category 28" LCD Panel Panel technology TN Size Diagonal: 28" (71cm) Pixel pitch 0.16mm H × 0.16mm V 300cd/m (Typical) Brightness Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down: 80 degrees each (Typical) Response time... -
Page 32: Dimensions
Upward: 17 degrees, Left/Right: 45 degrees each Tilt Angle Environmental Operating: Temperature 5 to 35°C / 41 to 95°F Humidity 10 to 80% (No condensation) Considerations Storage: Temperature -20 to 60°C / -4 to 140°F Humidity 5 to 85% (No condensation) ®... -
Page 33: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 31.500MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 35.156kHz 56.250Hz 36.000MHz 800 × 600 SVGA 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 65.000MHz 48.363kHz 60.004Hz 1024 × 768 75.000MHz 56.476kHz 70.069Hz...
