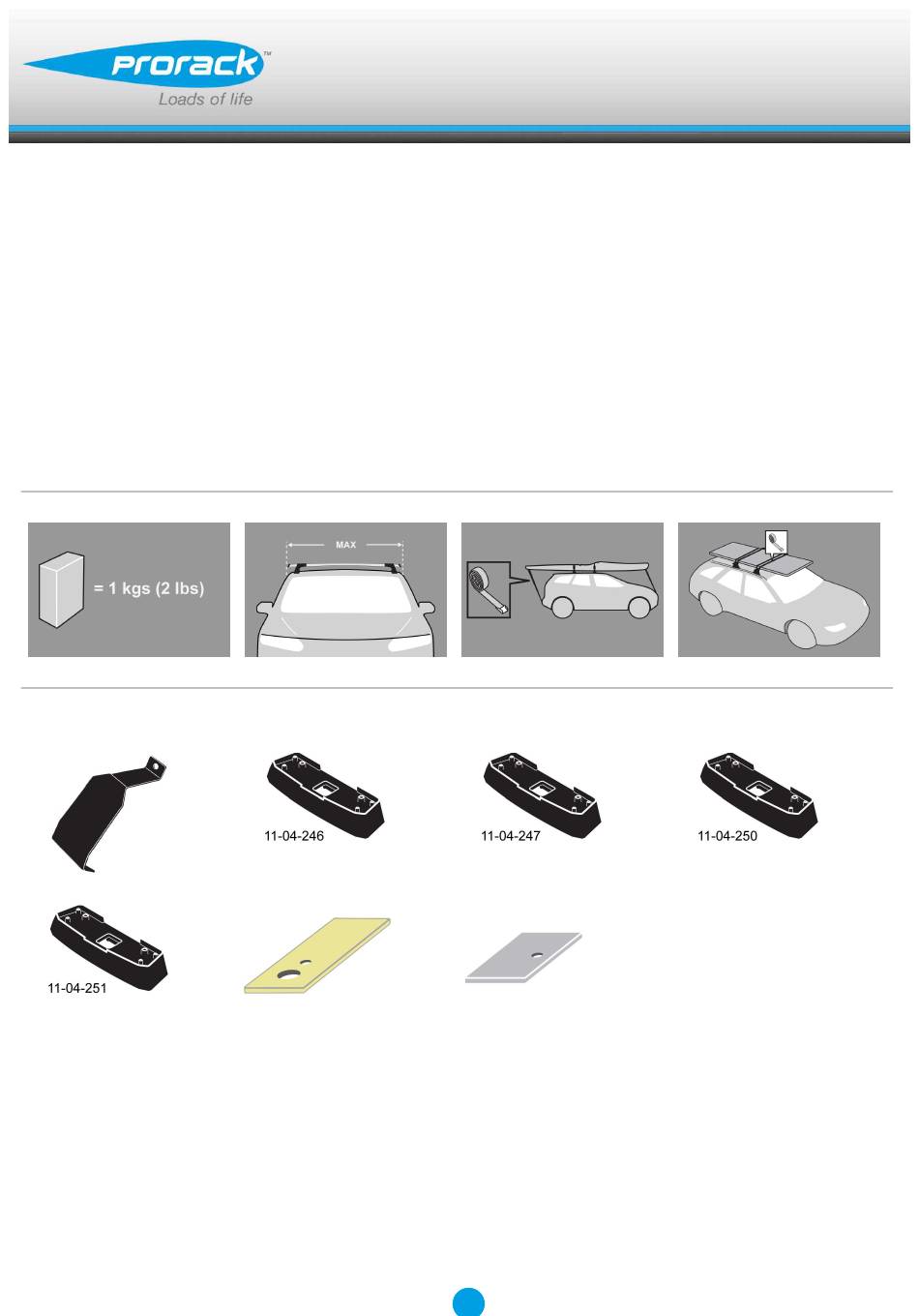

- Page 1 K390 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 7G...
- Page 2 Fitting Kit K390 MAX kgs (lbs) Audi A4, 4dr Sedan 07-Nov 15 75 kgs (165 lbs) 75 kgs (165 lbs) A4, 4dr Sedan 08-Feb 16 75 kgs (165 lbs) 75 kgs (165 lbs) A4, 4dr Sedan 08-Nov 15 75 kgs (165 lbs)
- Page 3 Fitting Kit K390 A4, 4dr Sedan 07-Nov 15 (ZA) 410mm 842mm 830mm -330mm 16 1/8ths" 33 1/8ths" 32 11/16ths" -13" A4, 4dr Sedan 08-Feb 16 (NZ) 410mm 842mm 830mm -330mm 16 1/8ths" 33 1/8ths" 32 11/16ths" -13" A4, 4dr Sedan 08-Nov 15 (AU)
-
Page 4: First Time Installation
Fitting Kit K390 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K390 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K390 Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 7 Fitting Kit K390 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position.
- Page 8 Fitting Kit K390 Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 9 Fitting Kit K390 Locate vehicle's fixed points. Clamps directly to edge of roof under the doors, pin locates in hole on vehicle Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on the body work of the vehicle.
- Page 10 Fitting Kit K390 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K390 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K390 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
