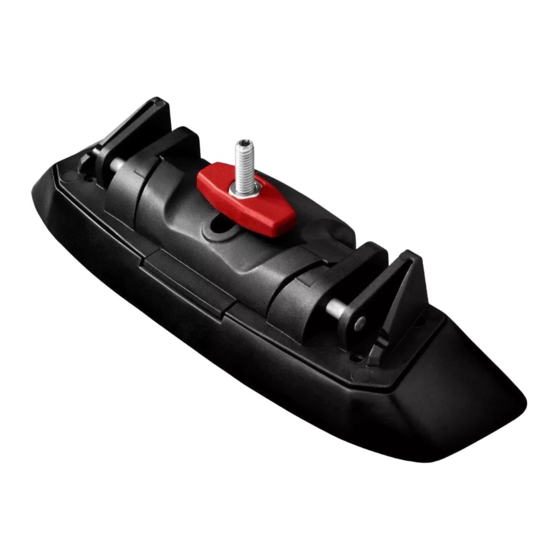

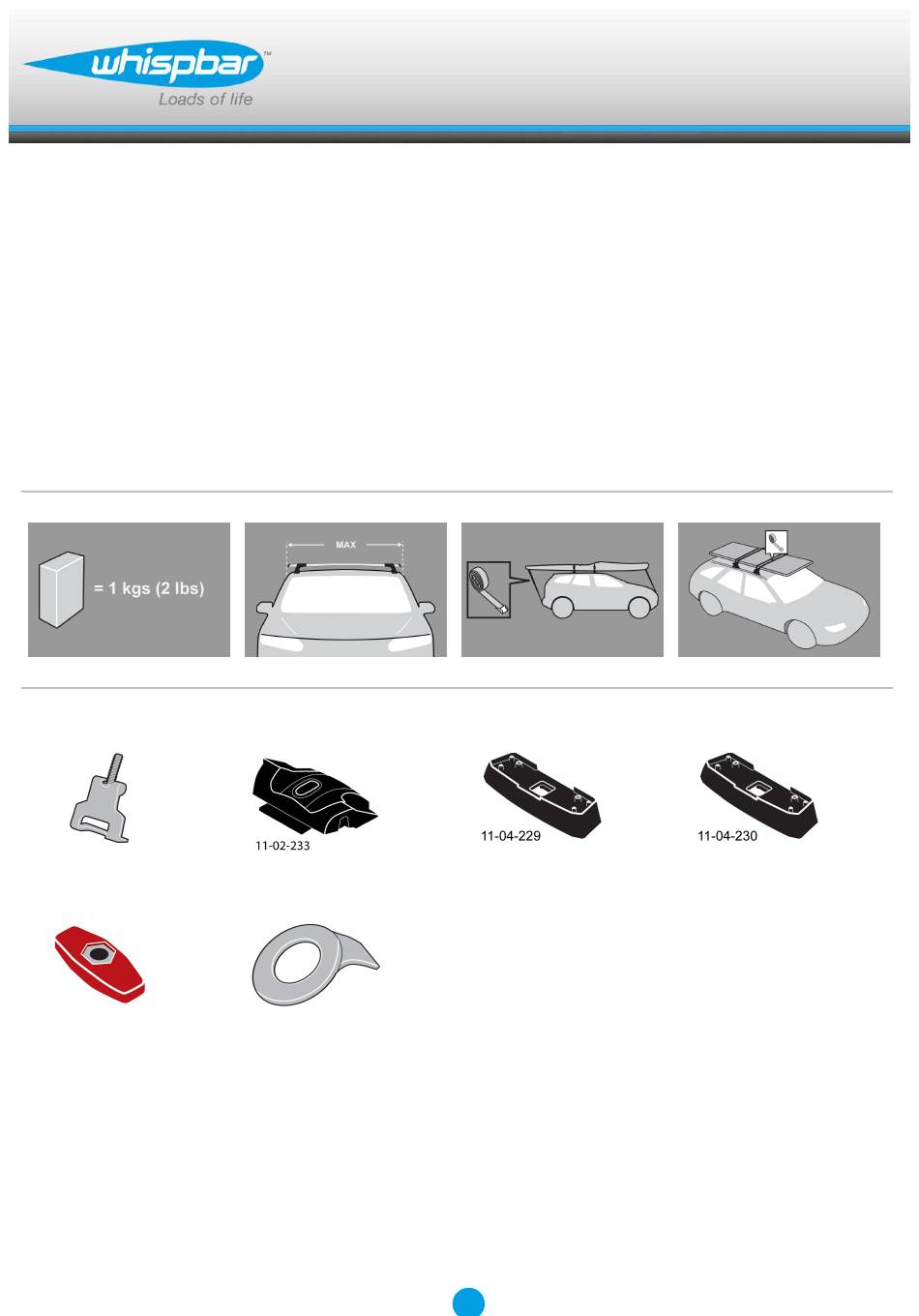

- Page 1 K372W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 9D...
- Page 2 Fitting Kit K372W MAX kgs (lbs) Citroen C3 Panoramic Window, 5dr Hatch 09-16 70 kgs (154 lbs) 70 kgs (154 lbs) C3 Panoramic Window, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs) C3 Panoramic Window, 5dr Hatch 10-14...
- Page 3 Fitting Kit K372W C3 Panoramic Window, 5dr Hatch 09-16 (EU) -70mm 610mm 730mm 695mm -2 -3/4ths" 24" 28 3/4ths" 27 3/8ths" C3 Panoramic Window, 5dr Hatch 10-+ (NZ) -70mm 610mm 730mm 695mm -2 -3/4ths" 24" 28 3/4ths" 27 3/8ths" C3 Panoramic Window, 5dr Hatch 10-14 (AU)
-
Page 4: First Time Installation
Fitting Kit K372W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K372W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 6 Fitting Kit K372W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K372W Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 8 Fitting Kit K372W Fitment Open or remove fixed-point covers. Select four clamps and fit them to the inside of the fixed-point mounts on the vehicle. Repeat for all four positions. Mount crossbars over clamps. Ensure the pads are in the correct position and the clamp threads pass through the crossbar feet.
- Page 9 Fitting Kit K372W Place washer over clamp thread as shown. Ensure that tab is inserted into clamp block. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened.
- Page 10 Fitting Kit K372W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K372W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K372W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
