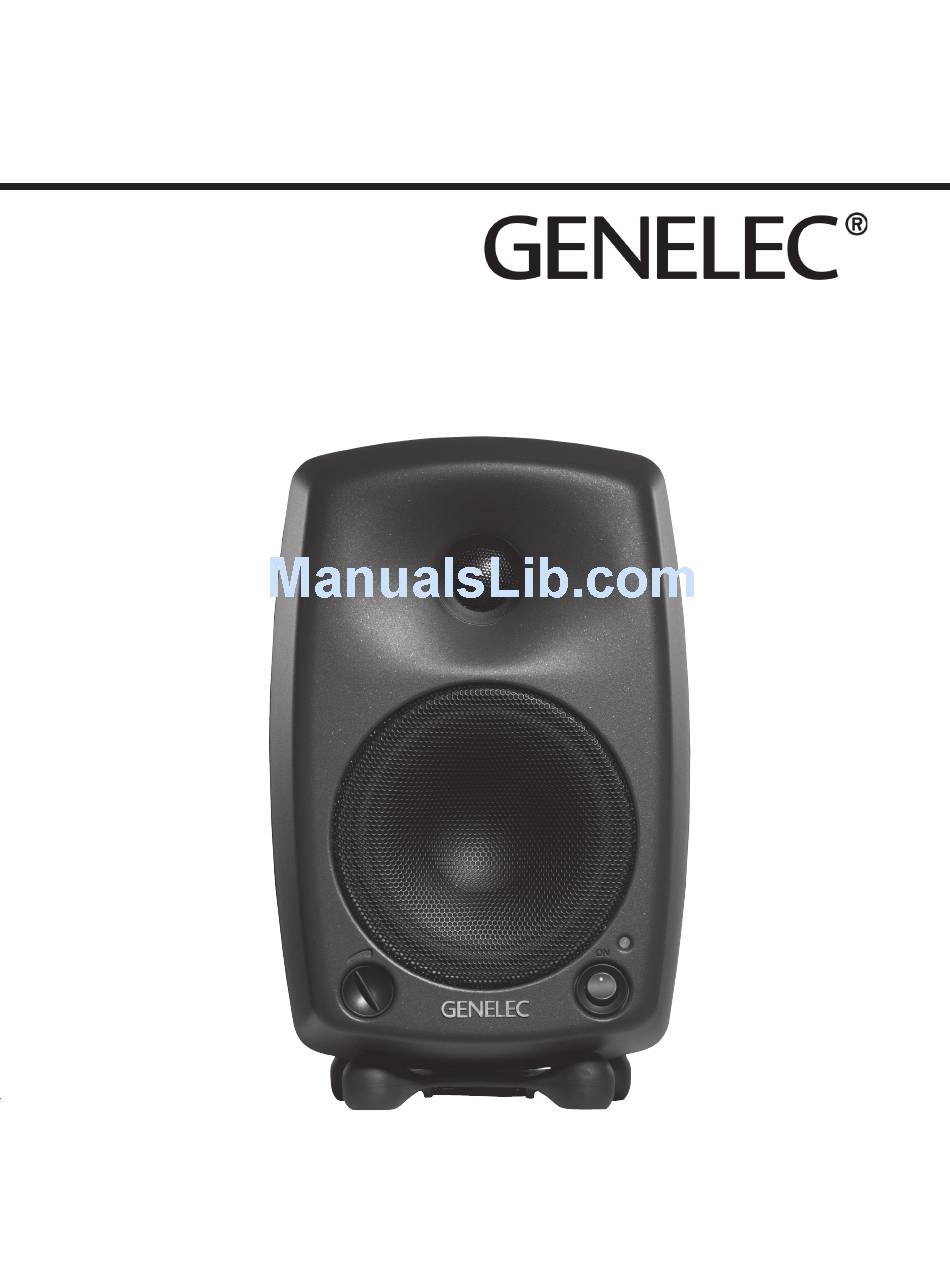

- Page 1 8130A Operating Manual Genelec 8130A Digital Monitoring System...
-
Page 2: Digital Interface
AES/EBU or analog line level signals. The Genelec 8130A detects analog or digital sig- nals and directs them to the right signal paths. In cases where the 8130A is presented with a dual-wire/single channel signal, detection is again automatic and the correct digital input mode is selected. - Page 3 Figure 1. Connectors and controls on the back panel of the 8130A Connecting the 8130A Connect your audio signal cable to the female XLR connector labelled ANALOG IN, DIGITAL IN AES/EBU on the 8130A's back panel. The input connector can be fed with either AES/EBU formatted digital signal or analog line level audio signal.
-
Page 4: Mounting Considerations
Bass Roll-Off (switch 2) activates high- pass filtering at 85 Hz to complement the low-pass filter on a Genelec 7050A subwoofer. This switch should always be set to “ON” when using 8130A’s with a 7050A subwoofer. Mounting considerations Align the loudspeakers correctly... -
Page 5: Mounting Options
20.5 brackets. Maintenance No user serviceable parts are to be found within the loudspeaker. Any maintenance or repair of the 8130A unit should only be undertaken by qualified service personnel. Safety considerations Although the 8130A has been designed in... - Page 6 178 mm (7") Genelec Document D0058R001 Copyright Genelec Oy 12.2004. All data subject to change without prior notice Figure 5: The curve group shows the horizontal directivity characteristics of the 8130A in its vertical configuration measured at 1m. The lower curve shows the system’s power response.
